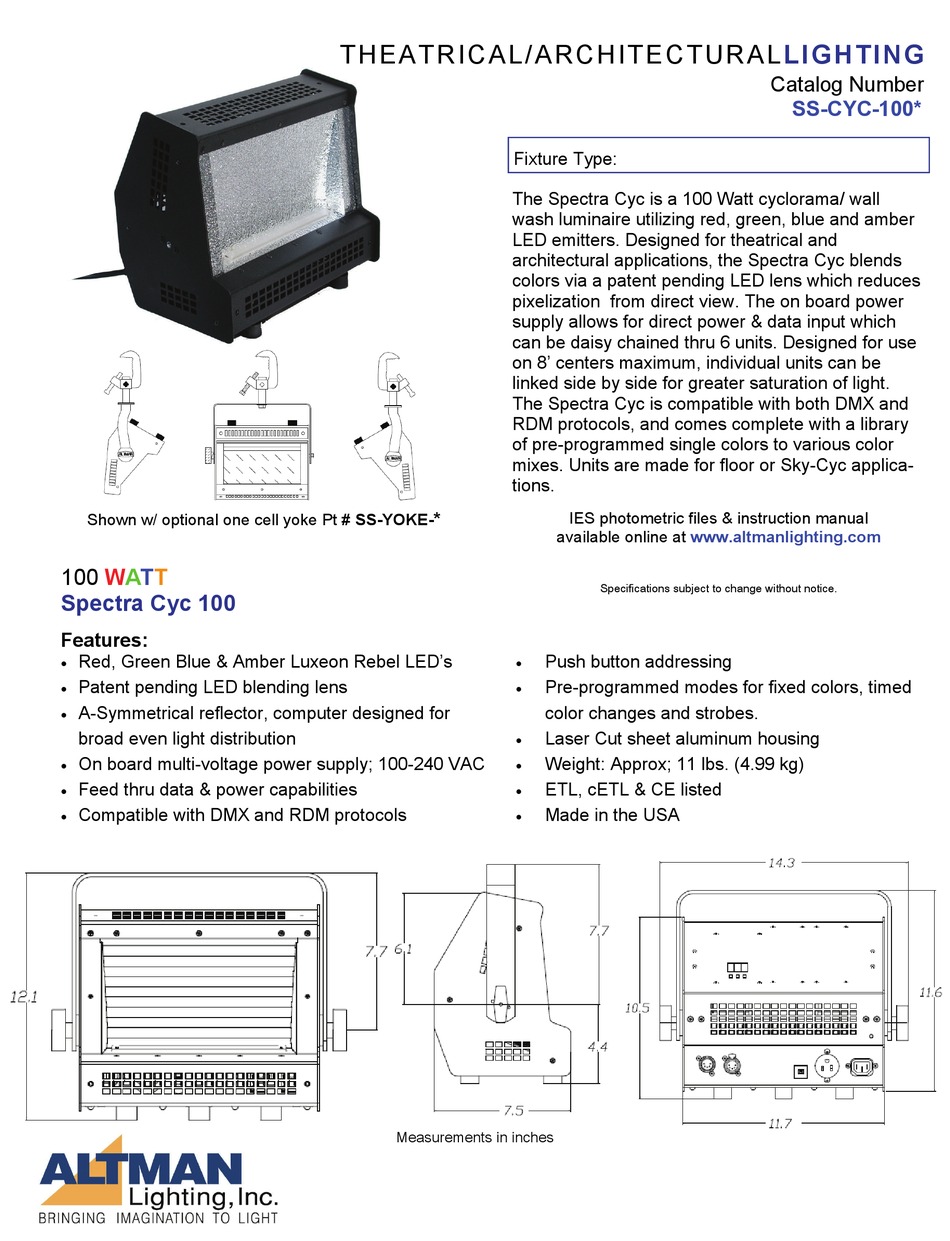

Altman Spectra Cyc 100 Manual

Shown w/ optional one cell yoke Pt # SS-YOKE-
100 WATT
Spectra Cyc 100
Features:
Red, Green Blue & Amber Luxeon Rebel LED's

Patent pending LED blending lens

A-Symmetrical reflector, computer designed for

broad even light distribution
On board multi-voltage power supply; 100-240 VAC

Feed thru data & power capabilities

Compatible with DMX and RDM protocols

THEATRICAL/ARCHITECTURALLIGHTING
Fixture Type:
The Spectra Cyc is a 100 Watt cyclorama/ wall
wash luminaire utilizing red, green, blue and amber
LED emitters. Designed for theatrical and
architectural applications, the Spectra Cyc blends
colors via a patent pending LED lens which reduces
pixelization from direct view. The on board power
supply allows for direct power & data input which
can be daisy chained thru 6 units. Designed for use
on 8' centers maximum, individual units can be
linked side by side for greater saturation of light.
The Spectra Cyc is compatible with both DMX and
RDM protocols, and comes complete with a library
of pre-programmed single colors to various color
mixes. Units are made for floor or Sky-Cyc applica-
tions.
*






Measurements in inches
IES photometric files & instruction manual
available online at www.altmanlighting.com
Specifications subject to change without notice.
Push button addressing
Pre-programmed modes for fixed colors, timed
color changes and strobes.
Laser Cut sheet aluminum housing
Weight: Approx; 11 lbs. (4.99 kg)
ETL, cETL & CE listed
Made in the USA
Catalog Number
SS-CYC-100*
