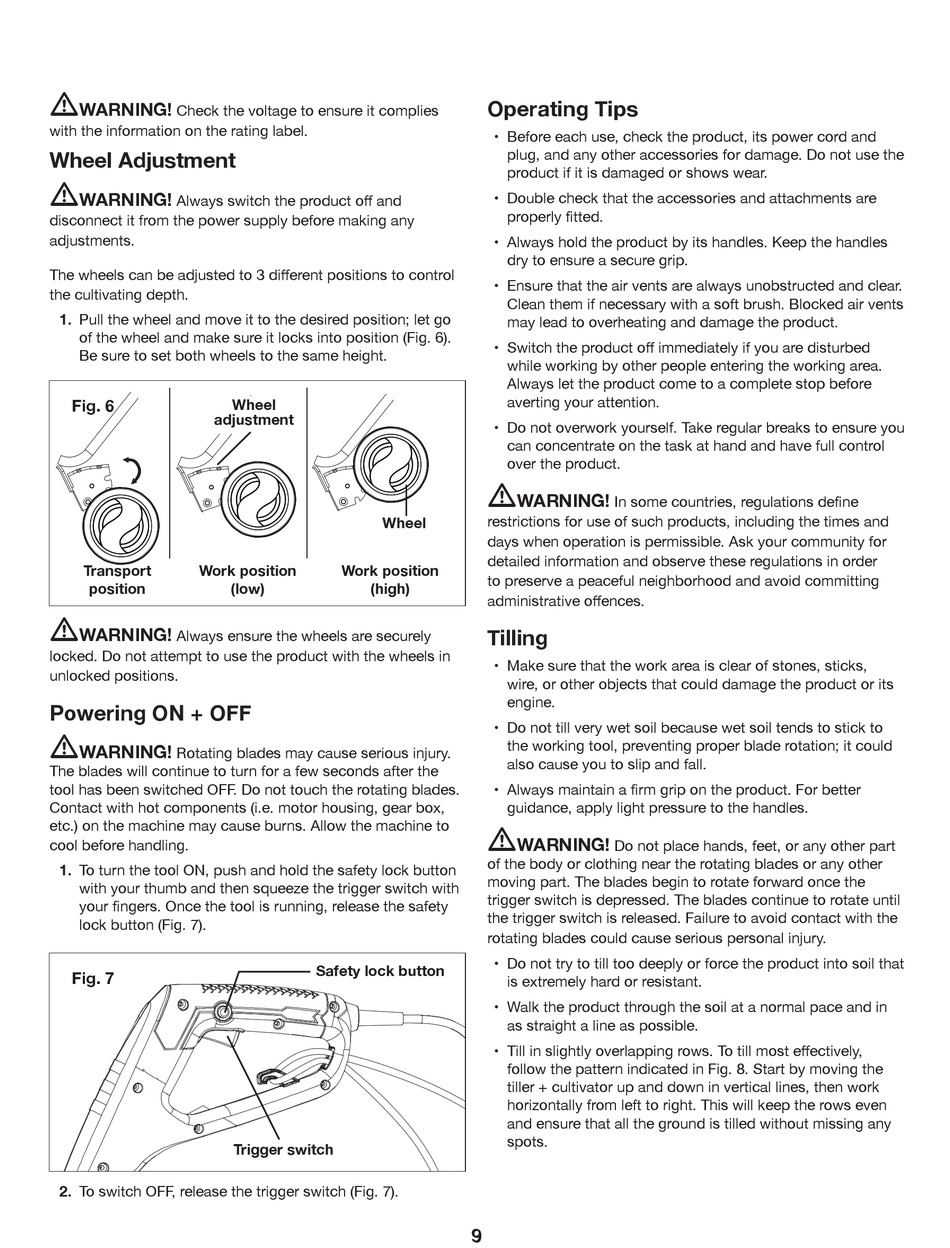

Wheel Adjustment; Operating Tips; Powering On/Off - sunjoe TJ603E Operator's Manual

m
WARNING!
Check the voltage to ensure it complies
with the information on the rating label.

Wheel Adjustment

m
WARNING!
disconnect it from the power supply before making any
adjustments.
the cultivating depth.
1. Pull the wheel and move it to the desired position; let go
of the wheel and make sure it locks into position (Fig. 6).
Be sure to set both wheels to the same height.
Fig. 6
adjustment
Transport Work position
position
m
WARNING!
Always ensure the wheels are securely
locked. Do not attempt to use the product with the wheels in
unlocked positions.
Powering ON + OFF
m
WARNING!
Rotating blades may cause serious injury.
The blades will continue to turn for a few seconds after the
tool has been switched OFF. Do not touch the rotating blades.
Contact with hot components (i.e. motor housing, gear box,
etc.) on the machine may cause burns. Allow the machine to
cool before handling.
1. To turn the tool ON, push and hold the safety lock button
with your thumb and then squeeze the trigger switch with
lock button (Fig. 7).
Fig. 7
2. To switch OFF, release the trigger switch (Fig. 7).
Wheel
Wheel
Work position
(low) (high)
Safety lock button
Trigger switch

Operating Tips

plug, and any other accessories for damage. Do not use the
product if it is damaged or shows wear.
Double check that the accessories and attachments are
tted.
Always hold the product by its handles. Keep the handles
dry to ensure a secure grip.
Ensure that the air vents are always unobstructed and clear.
Clean them if necessary with a soft brush. Blocked air vents
may lead to overheating and damage the product.
while working by other people entering the working area.
Always let the product come to a complete stop before
averting your attention.
Do not overwork yourself. Take regular breaks to ensure you
can concentrate on the task at hand and have full control
over the product.
m
WARNING!
restrictions for use of such products, including the times and
days when operation is permissible. Ask your community for
detailed information and observe these regulations in order
to preserve a peaceful neighborhood and avoid committing
Tilling
wire, or other objects that could damage the product or its
engine.
the working tool, preventing proper blade rotation; it could
also cause you to slip and fall.
guidance, apply light pressure to the handles.
m
WARNING!
Do not place hands, feet, or any other part
of the body or clothing near the rotating blades or any other
moving part. The blades begin to rotate forward once the
trigger switch is depressed. The blades continue to rotate until
the trigger switch is released. Failure to avoid contact with the
rotating blades could cause serious personal injury.
is extremely hard or resistant.
as straight a line as possible.
follow the pattern indicated in Fig. 8. Start by moving the
tiller + cultivator up and down in vertical lines, then work
horizontally from left to right. This will keep the rows even
and ensure that all the ground is tilled without missing any
spots.
9 9
For better
