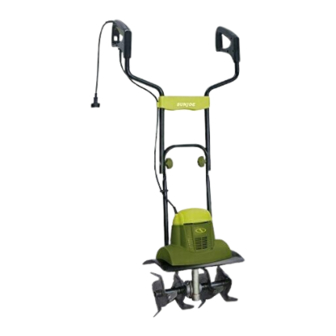

sunjoe TJ601E Operator's Manual

Electric tiller/cultivator

Hide thumbs Also See for TJ601E:

Operator's manual (17 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual See also: Operator's Manual

A Division of Snow Joe, LLC

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Always follow these safety guidelines. Failure to do so may

result in serious bodily injury or death.

General Safety WARNINGS!

When using the electric tiller, basic safety precautions should

always be followed to reduce the risk of fire, electric shock,

and personal injury, including the following:

WARNING

When servicing use only identical replacement.

Polarized Appliance Connections to reduce the risk of electric

shock, this appliance has a polarized plug (one blade is wider

than the other) and will require the use of a polarized extension

cord. The appliance plug will fit into a polarized extension cord

only one way. If the plug does not fit fully into the extension

cord, reverse the plug. If the plug still does not fit, obtain a

correct polarized extension cord. A polarized extension cord

will require the use of a polarized wall outlet. This plug will fit

into the polarized wall outlet only one way. If the plug does

not fit fully into the wall outlet, reverse the plug. If the plug still

does not fit, contact a qualified electrician to install the proper

wall outlet. Do not change the equipment plug, extension cord

receptacle, or extension cord plug in any way. Before using

the tiller, take the time to familiarize yourself with the controls,

especially how to stop the tiller in an emergency. Only allow

responsible individuals who have a thorough understanding of

these instructions to operate the tiller. Never allow children to

operate the tiller. Retain this manual for future reference and

reread it at the start of each tilling session.

This symbol indicates important safety instructions. Failure

to observe and follow these instructions may result in personal

injury or property damage. Read and follow all instructions in

this manual before attempting to operate this machine.

TRAINING

1. Read, understand and follow all instructions on the tiller

and in the manual (s) before attempting to assemble and

operate. Save this manual for reference and ordering

replacement parts.

2. Never allow children under 16 years old to operate this

machine. Children 16 years old and over should be trained

and supervised by an adult who understands the operation

of the tiller.

3. Never allow an untrained individual to operate the tiller.

4. Understand the function of all the controls and their proper

operation. Know how to stop the machine and disengage

them quickly.

Electric Tiller/Cultivator

Model No. TJ601E

5. Always plan your tilling pattern to avoid discharge of

material toward people, pets and property. Thrown objects

can cause serious personal injury.

6. Keep people, pets and property at least 25 feet from the

tiller while it is in operation. Stop the tiller if people or pets

enter the discharge area.

7. Always observe the surface conditions in order to avoid

slipping, falling and unexpected objects.

PREPARATION

1. Always inspect the area where the tiller is to be used.

Remove all objects (e.g., stones, sticks, wires and foreign

objects) that could be thrown by the tines or cause the

operator to trip.

2. Thrown objects can cause serious injury to the eyes and

exposed body. Always wear safety glasses or eye shields

during operation and while performing an adjustment or

repair.

3. Always operate wearing adequate garments. Do not wear

jewelry or other loose clothing, which could become

entangled in moving parts. Wear footwear that provides

sure footing.

4. Observe any noise-prevention regulations and laws.

5. Inspect the tiller for worn, missing or damaged parts

and safety labels. See maintenance section for detailed

instructions.

ELECTRICAL SAFETY

1. Always use a grounded three-wire extension cord and

receptacle that is made of rubber and intended for

outdoor use.

2. Keep the extension cord away from the moving tines

and hot motor housing.

3. Avoid contact with metal objects.

Grounding

(A)

Adapter

Grounding

(C)

Means

AA210

Grounding method

SAVE THESE INSTRUCTIONS

Form No. TJ601E-880E

OPERATOR'S MANUAL

Metal Screw

Cover of Grounded

Outlet Box

(B)

Grounding

(D)

Table of Contents

Summary of Contents for sunjoe TJ601E

Page 1: Safety Instructions
Electric Tiller/Cultivator Electric Tiller/Cultivator Model No. TJ601E Form No. TJ601E-880E OPERATOR’S MANUAL A Division of Snow Joe, LLC IMPORTANT! 5. Always plan your tilling pattern to avoid discharge of material toward people, pets and property. Thrown objects Safety Instructions can cause serious personal injury.
Page 2: General Operation
GENERAL OPERATION 20. Use Right Appliance – Do not use appliance for any job except that for which it is intended. 1. Do not operate the machine while under the influence of 21. Ground Fault Circuit Interrupter (GFCI) protection should alcohol or drugs.
Page 3: Maintenance And Storage
33. Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation.
Page 4: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbol Description READ THE OPERATOR’S MANUAL(S) Read, understand and follow all instructions in the manual(s) before attempting to assemble and operate.
Page 5: Technical Data
Know Your Electric Tiller/Cultivator Part List Legend A. Left Handle Grip/Grab handle B. Safety Button C. Right Handle Grip/Control Handle D. Power Switch E. cable tesion relief F. Plastic Crossplate G. Cable Guide H. Upper Frame I . Cable Clip J .
Page 6 Unpacking and using for the • (Fig. 1) Insert the control handle (C) and the grab handle (A) into the holes of the cross plate (F). Make sure that the first time control handle is on the side of the cable holder guide of the cross plate.
Page 7: Operation
Operation Figure 3 Note: Before using this machine, make sure that the power source you will use complies with the specifications detailed in this manual. This machine is intended for breaking up and tilling coarse Convert soil for the purpose of mixing in fertilizer, peat and compost in status domestic areas.
Page 8: Cleaning, Maintenance And Storage
Note: The tines will begin to rotate and dig themselves into WARNING the ground. 2. After completing the work release Power Switch (D) (See Fig. 6) to turn the machine OFF. Damaged electrical cords present risk of fire, electrical shock, and serious bodily Operating the Electric Tiller injury.
Page 9: Service And Support
Service and Support The machine is fitted with six tine wheels that can easily be If your Tiller Joe electric tiller/cultivator TJ601E requires service changed. The tine wheel can be fitted on the left or right, or maintenance, please call 1-866-766-9563 for assistance.
Page 10 A Two-Year Full Warranty for residential use in the United States and Canada General Conditions: Snow Joe, LLC warrants this product to the original purchaser for two years against defects in material or workmanship when used for normal residential purposes. Snow Joe, LLC will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations, and exclusions set forth herein.
