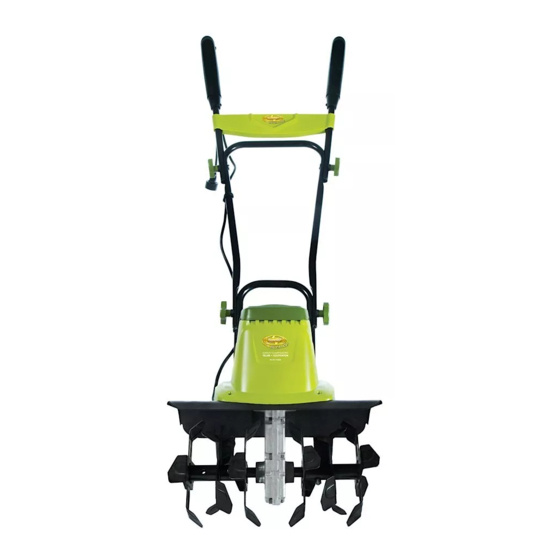

sunjoe TJ603E Operator's Manual

16-inch 12-amp electric tiller + cultivator

Hide thumbs Also See for TJ603E:

Operator's manual (13 pages)

User manual

Table Of Contents

Table of Contents

Quick Links

Download this manual

A Division of Snow Joe

, LLC

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Always follow these safety guidelines. Failure to do so may

result in serious bodily injury or death.

General Safety WARNINGS!

You and any other operator of this garden tiller + cultivator

must read, understand, and follow these instructions in their

entirety. Failure to follow these instructions may result in

ELECTRIC SHOCK, FIRE, and/or serious PERSONAL INJURY.

Notice the personal safety alert symbol

manual to draw your attention to a WARNING given along

with the particular operating instruction. This means that

the operation requires special ATTENTION, CAUTION, and

AWARENESS.

1. Keep work area clean and well-lit – Cluttered, dark

areas invite accidents.

2. Replacement parts – When servicing this unit, use only

identical replacement parts. Replace or repair damaged

cords immediately.

3. Keep children, bystanders, and pets away – All

spectators, including pets, should be kept a safe distance

away from the work area.

4. Know your product – Know how to start and stop the

machine. Be thoroughly familiar with the controls.

5. Use the right tool – Do not use this machine for any job

except that for which it was intended.

6. Dress properly – Do not wear loose clothing or jewelry as

such articles can become caught in moving parts. Wear

a protective covering to contain long hair. Wearing rubber

gloves and substantial non-slip footwear is recommended

when working outdoors.

7. Extension cords – To prevent electric shock, use only

with an extension cord suitable for outdoor use.

8. Avoid accidental starting – Do not carry the garden tiller

+ cultivator with your finger on the switch. Make sure the

switch is off before plugging in or unplugging the unit.

CAUTION!

Moving parts will continue to run for several

seconds after turning off the machine.

, LLC

16-INCH 12-AMP ELECTRIC

TILLER + CULTIVATOR

Model TJ603E

used in this

9. Do not abuse the cord – Never carry the garden tiller +

cultivator by the cord or yank the cord to disconnect it

from the receptacle. Keep the cord away from heat, oil,

and sharp edges.

10. Moving parts – Keep hands and feet away from moving

parts. Keep guards in place and in proper working order.

11. Do not force the tool – It will perform better with less

likelihood of personal or mechanical injury if it is used at

the rate for which it was designed.

12. Do not overreach – Keep proper footing and balance at

all times.

If the tiller + cultivator strikes a foreign object, follow these

steps:

• Stop the electric tiller + cultivator.

• Inspect for damage.

• Repair any damage before restarting and

operating the tool.

13. Use safety glasses – Also use safety footwear, snug-

fitting clothing, protective gloves, hearing, and head

protection.

14. Disconnect the tool – Disconnect the tiller + cultivator

from the power supply when it is not in use, before

servicing it, when changing accessories, and when

performing any other maintenance task.

15. Store idle tool indoors – When not in use, the tiller +

cultivator should be stored indoors in a dry and high or

locked-up place out of the reach of children.

16. Maintain the tiller + cultivator with care – Keep the

cutting edges sharp and clean for optimal performance

and to reduce the risk of injury. Inspect the extension

cord periodically and immediately replace it if damaged.

Keep the handles dry, clean, and free from oil and grease.

Follow the additional recommendations described in the

maintenance section of this manual.

17. Avoid dangerous environments – Do not use the tiller

+ cultivator in rain or in damp or wet locations. Do not

operate the tiller + cultivator in gaseous or explosive

atmospheres or use the tiller + cultivator near flammable

or combustible liquids. Motors in these tools normally

spark, and the sparks might ignite fumes.

18. Stay alert – Watch what you are doing. Use common

sense. Do not operate the tiller + cultivator when you are

tired or under the influence of drugs, alcohol, or other

medication.

19. Check for damaged parts – Before further use of the

appliance, a guard or other part that is damaged should

be carefully checked to determine that it will operate

properly and perform its intended function. Check for

Form No. SJ-TJ603E-880E-MR3

OPERATOR'S MANUAL

SAVE THESE INSTRUCTIONS

Table of Contents

Summary of Contents for sunjoe TJ603E

Page 1 16-INCH 12-AMP ELECTRIC TILLER + CULTIVATOR Model TJ603E Form No. SJ-TJ603E-880E-MR3 OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! 9. Do not abuse the cord – Never carry the garden tiller + cultivator by the cord or yank the cord to disconnect it Safety Instructions from the receptacle.
Page 2 alignment of moving parts, binding of moving parts, • Ensure the controls (start/stop) function properly before breakage of parts, mounting, and any other condition cultivating. that may affect its operation. A guard or other part that • Hold onto the tiller + cultivator with both hands during is damaged should be properly repaired or replaced.
Page 3: Electrical Safety
Electrical Safety Maintenance + Storage • Maintain or replace safety and instruction labels. 1. Ground fault circuit interrupter (GFCI) protection should • Disengage all controls, stop the engine, and wait until the be provided on the circuit(s) or outlet(s) to be used for blades come to a complete stop before cleaning, repairing, this electric tiller + cultivator.
Page 4 WARNING Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings: • Do not allow any part of the electric tiller + cultivator to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting.
Page 5: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S Wear eye protection, breathing MANUAL(S) –...
Page 6: Technical Data
Know Your Electric Tiller + Cultivator Read the owner’s manual and safety instructions carefully before operating the electric tiller + cultivator. Compare the illustration below to the electric tiller + cultivator in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Page 7: Carton Contents
Unpacking Connecting the Handles NOTE: Small parts can easily get lost during asembly or when Carton Contents making adjustments to the machine. To avoid this, secure all small parts that are removed from the machine and keep them • Electric tiller + cultivator housing accessible.
Page 8: Operation
(B). Tighten the knobs on each side to ensure a secure fit (Fig. 3). Intended Use The TJ603E electric tiller + cultivator is designated with a rated Fig. 3 input power consumption of 1440 Watts.
Page 9: Wheel Adjustment
Operating Tips WARNING! Check the voltage to ensure it complies with the information on the rating label. • Before each use, check the product, its power cord and Wheel Adjustment plug, and any other accessories for damage. Do not use the product if it is damaged or shows wear.
Page 10: General Cleaning
General Cleaning Fig. 8 • Clean the product with a dry cloth. Use a brush for areas that are hard to reach. • Be sure to clean the air vents after every use with a cloth and brush. • Remove stubborn dirt with high pressure air (max. 3 bar). NOTE: Do not use chemical, alkaline, abrasive, or other aggressive detergents or disinfectants to clean this product as such substances might damage the tool's surfaces.
Page 11: Changing The Blades
NOTE: After each use, follow these steps to properly clean the IMPORTANT: The blades must be set in the correct turning unit: direction. Note the way the old blades came off and replace the new ones exactly the same way. 1.
Page 12: Recycling + Disposal
Check with your local authority 6 0 3 or local store for recycling regulations. Serial #: Service + Support If your Sun Joe TJ603E electric tiller + cultivator requires ® service or maintenance, please call the Snow Joe + Sun Joe ® ®...
Page 13 NOTES...
Page 14 NOTES...
Page 15 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience as pleasant ® ® as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us.
Page 16 snowjoe.com WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm.
