Getting Started

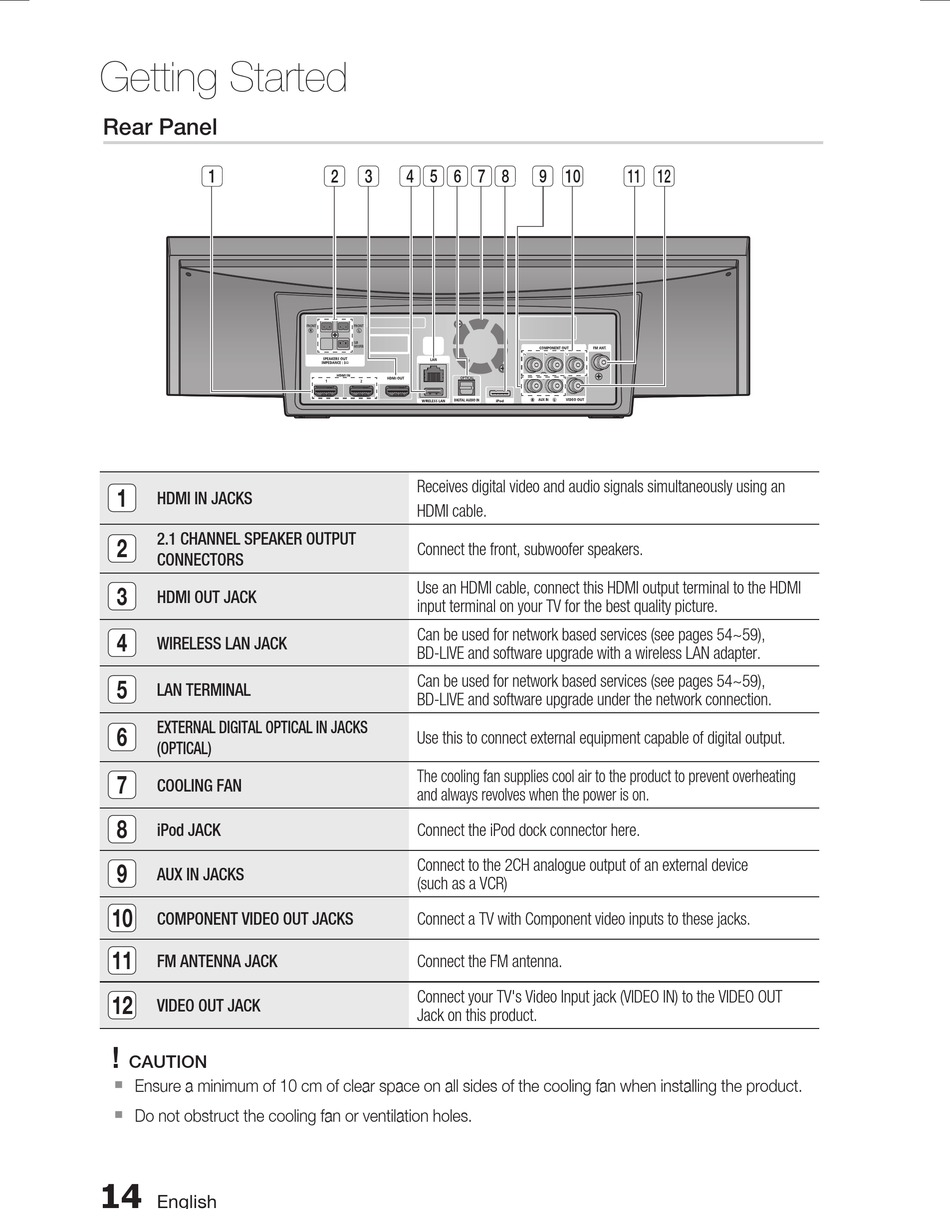

Rear Panel

1
1
HDMI IN JACKS
2.1 CHANNEL SPEAKER OUTPUT
2
CONNECTORS
3
HDMI OUT JACK
4
WIRELESS LAN JACK
5
LAN TERMINAL
EXTERNAL DIGITAL OPTICAL IN JACKS
6
(OPTICAL)
7
COOLING FAN
8
iPod JACK
9
AUX IN JACKS
10
COMPONENT VIDEO OUT JACKS
11
FM ANTENNA JACK
12
VIDEO OUT JACK
!
CAUTION

Ensure a minimum of 10 cm of clear space on all sides of the cooling fan when installing the product.

Do not obstruct the cooling fan or ventilation holes.
14
English
2 3 4 5 6 7
Receives digital video and audio signals simultaneously using an
HDMI cable.
Connect the front, subwoofer speakers.
Use an HDMI cable, connect this HDMI output terminal to the HDMI
input terminal on your TV for the best quality picture.
Can be used for network based services (see pages 54~59),
BD-LIVE and software upgrade with a wireless LAN adapter.
Can be used for network based services (see pages 54~59),
BD-LIVE and software upgrade under the network connection.
Use this to connect external equipment capable of digital output.
The cooling fan supplies cool air to the product to prevent overheating
and always revolves when the power is on.
Connect the iPod dock connector here.
Connect to the 2CH analogue output of an external device
(such as a VCR)
Connect a TV with Component video inputs to these jacks.
Connect the FM antenna.
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT
Jack on this product.
8 9 10 11 12
