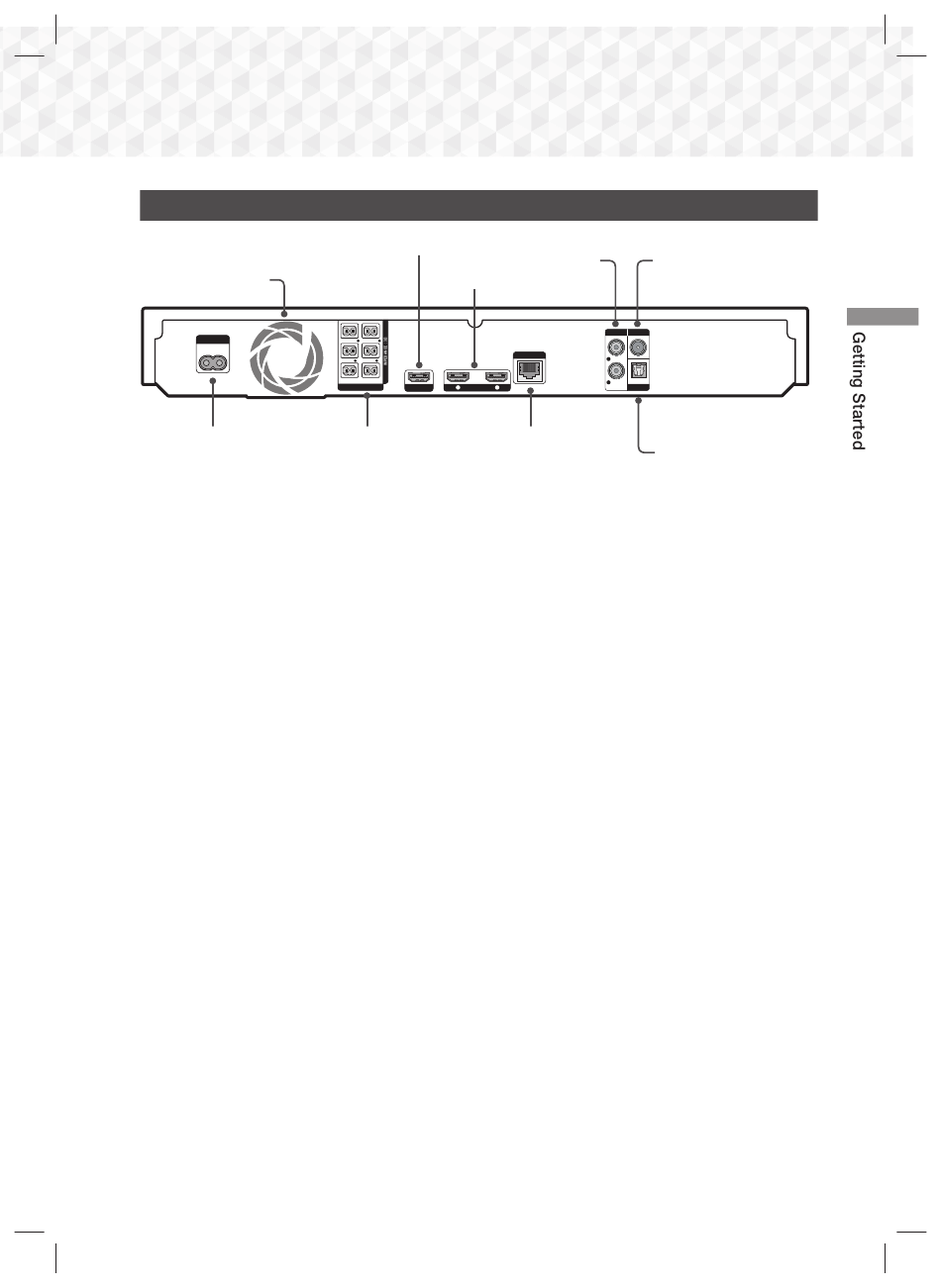

Rear Panel

COOLING FAN
POWER
POWER CORD
* Connecting the FM Antenna
1. Connect the supplied FM antenna to the FM ANT Jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a
wall or other rigid surface.
✎
Maintain a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation.
Do not obstruct the cooling fan or ventilation holes.
✎
This product does not receive AM broadcasts.
HT-J7756W-HC-ENG-1231.indd 7 HT-J7756W-HC-ENG-1231.indd 7
HDMI OUT
HDMI IN
FRONT TOP R FRONT TOP L
FRONT FRONT
R L
SUBWOOFER CENTER
SPEAKERS OUT 1
HDMI OUT HDMI IN
SPEAKER OUTPUT
LAN TERMINAL
CONNECTORS
7
- English
AUX IN * FM ANTENNA
AUX IN FM ANT
LAN
L
OPTICAL
R
DIGITAL
2
AUDIO IN
EXTERNAL DIGITAL
AUDIO IN (OPTICAL)
