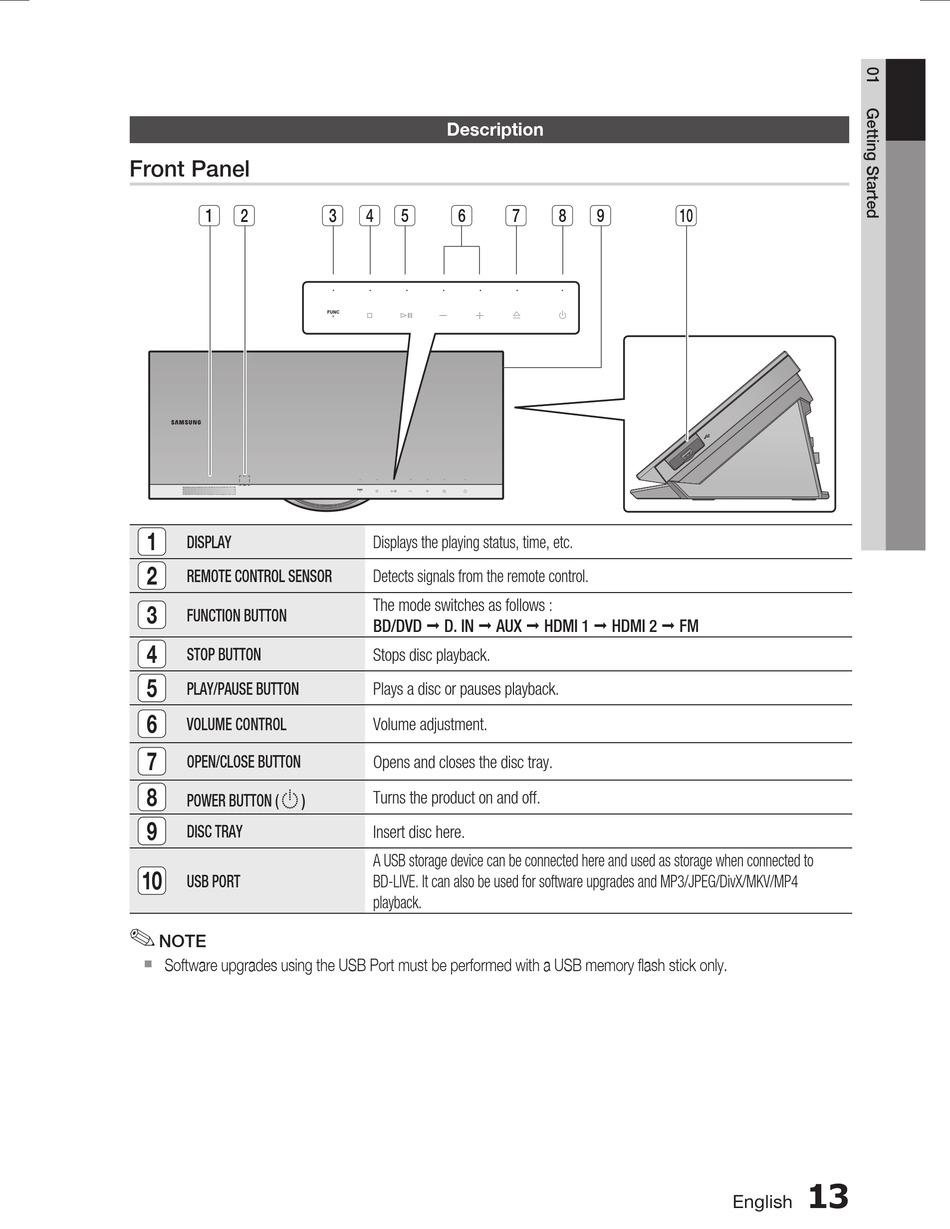

Front Panel

1 2
1
DISPLAY
2
REMOTE CONTROL SENSOR
3
FUNCTION BUTTON
4
STOP BUTTON
5
PLAY/PAUSE BUTTON
6
VOLUME CONTROL
7
OPEN/CLOSE BUTTON
8
POWER BUTTON (
9
DISC TRAY
10
USB PORT
✎
NOTE

Software upgrades using the USB Port must be performed with a USB memory fl ash stick only.

Description

3 4 5 6
Displays the playing status, time, etc.
Detects signals from the remote control.
The mode switches as follows :
BD/DVD D. IN
Stops disc playback.
Plays a disc or pauses playback.
Volume adjustment.
Opens and closes the disc tray.
Turns the product on and off.
)
Insert disc here.
A USB storage device can be connected here and used as storage when connected to
BD-LIVE. It can also be used for software upgrades and MP3/JPEG/DivX/MKV/MP4
playback.
7 8 9
AUX HDMI 1 HDMI 2
10
FM
13
