Connections

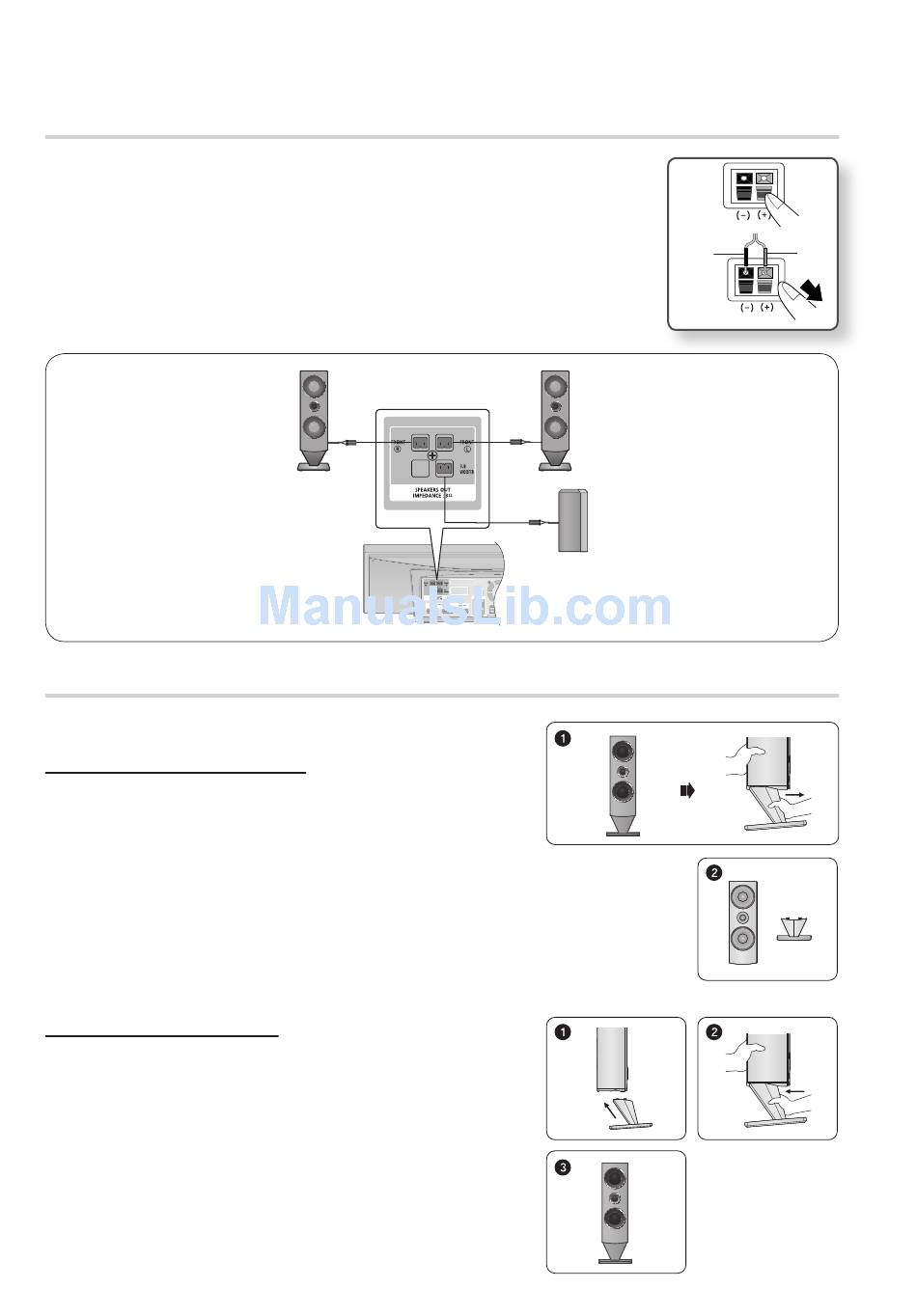

Connecting The Speakers

1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red wire into the
red (+) terminal, and then release the tab.
3. Connect the connecting plugs to the back of the product by matching the
colours of the speaker plugs to the speaker jacks.
Front Speaker (R)
Removing/Installing the speaker on the stand
* Front Speakers only
How to remove the speaker
If you attach the speaker on the wall, remove the stand
before using it.
1. Pull out the stand in the arrow direction as shown.
•
Be careful not to put excessive force when removing it.
Otherwise, it can be damaged.
2. This is the appearance after the stand is removed.
How to install the speaker
1. Connect the stand in the arrow direction so that it fi ts the
corresponding holes (x4) on the speaker.
2. Fully insert the stand in the arrow direction as shown.
3. This is the appearance after the speaker unit is installed.
18
English
Black
Front Speaker (L)
Subwoofer
Red
