Denali SoundBomb TT-SB.10100.B Instruction Manual

Instruction Manual
SoundBomb Split Dual-Tone Horn
TT-SB.10100.B

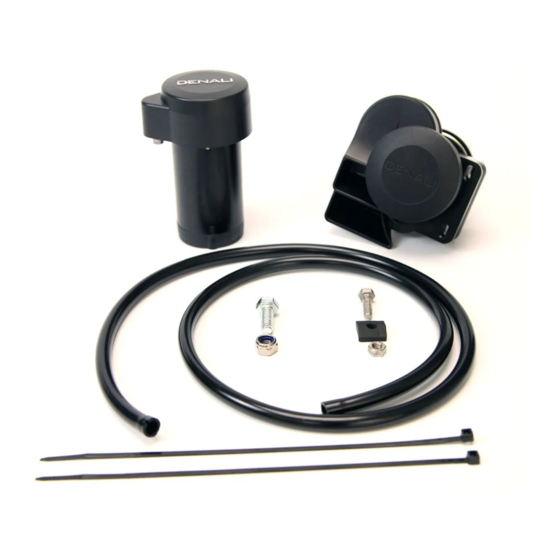

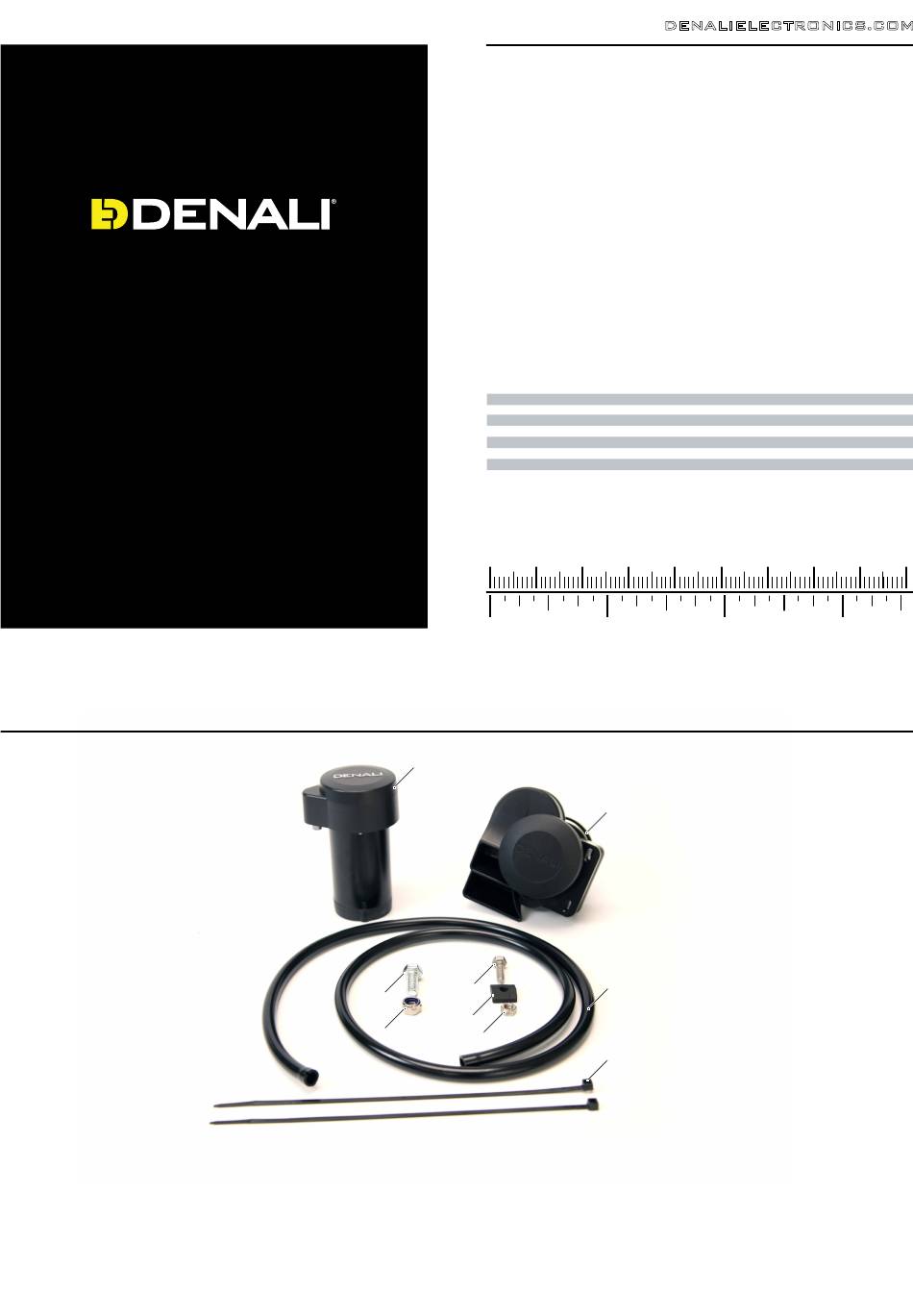

What's In The Box?

Kit Contents

(a) Compressor........................................................................Qty 1
(b) Acoustic Unit......................................................................Qty 1
(c) M8x16 DIN 933...................................................................Qty 1
(d) M8 Nut DIN 985..................................................................Qty 1
(e) M6x20 DIN 933...................................................................Qty 1
(f) Vibration Dampener..............................................................Qty 1
(g) M6 Nut DIN 985..................................................................Qty 1
Instruction Rev02
Thank you for choosing DENALI
We know you would rather be enjoying your vehicle than wrenching on it, so we go the
extra mile to make sure our instructions are clear and as easy to understand as
possible. If you have any questions, comments, or suggestions don't hesitate to give
our gear experts a call at 401.360.2550 or visit WWW.DENALIELECTRONICS.COM

Please Read Before Installing

DENALI products should always be installed by a qualified technician. If you are unsure
of your ability to properly install a product, please have the product installed by your
local motorcycle dealer. DENALI takes no responsibility for damages caused by
improper installation. Caution: When installing electronics it is extremely important to
pay close attention to how wires are routed, especially when mounting products to the
front fender, front forks, or fairing of a motorcycle. Always be sure to turn the handle-
bars fully left, fully right, and fully compress the suspension to ensure the wires will
not bind and have enough slack for your motorcycle to operate properly.

Installation Tips

We strongly recommend using medium strength liquid thread locker on all screws,
nuts, and bolts. It is also important to ensure that all hardware is tightened to the
proper torque specifications as listed in your owner's manual. For included accessory
hardware please refer to the default torque specifications provided below. Inspect all
hardware after the first 30 miles to ensure proper torque specifications are
maintained.
Bolt Size
M3
M4
M5
M6
M8
M10
M12

Hardware Sizing Guide

Not sure what size bolt you have? Use this ruler to measure screws, bolts, spacers, etc.
Remember, the length of a screw or bolt is measured from the start of the "mounting
surface" to the end of the screw, so only include the screw head when measuring
countersunk screws.
0 10
mm
0
in
(a)
(e)
(c)
(f)
(d)
(g)
(h) Air Hose.............................................................................Qty 1
(i) Zip Tie................................................................................Qty 2
DENALIELECTRONICS.COM
in-lbs ft-lbs
10.0 in-lbs -
23.0 in-lbs
-
44.5 in-lbs 3.5 ft-lbs
78.0 in-lbs 6.5 ft-lbs
- 13.5 ft-lbs
- 30.0 ft-lbs
- 52.0 ft-lbs
20 30 40 50
1 2
(b)
(h)
(i)
Nm
1.0 Nm
2.5 Nm
5.0 Nm
9.0 Nm
18.0 Nm
41.0 Nm
71.0 Nm
60 70 80 90
3
