TM

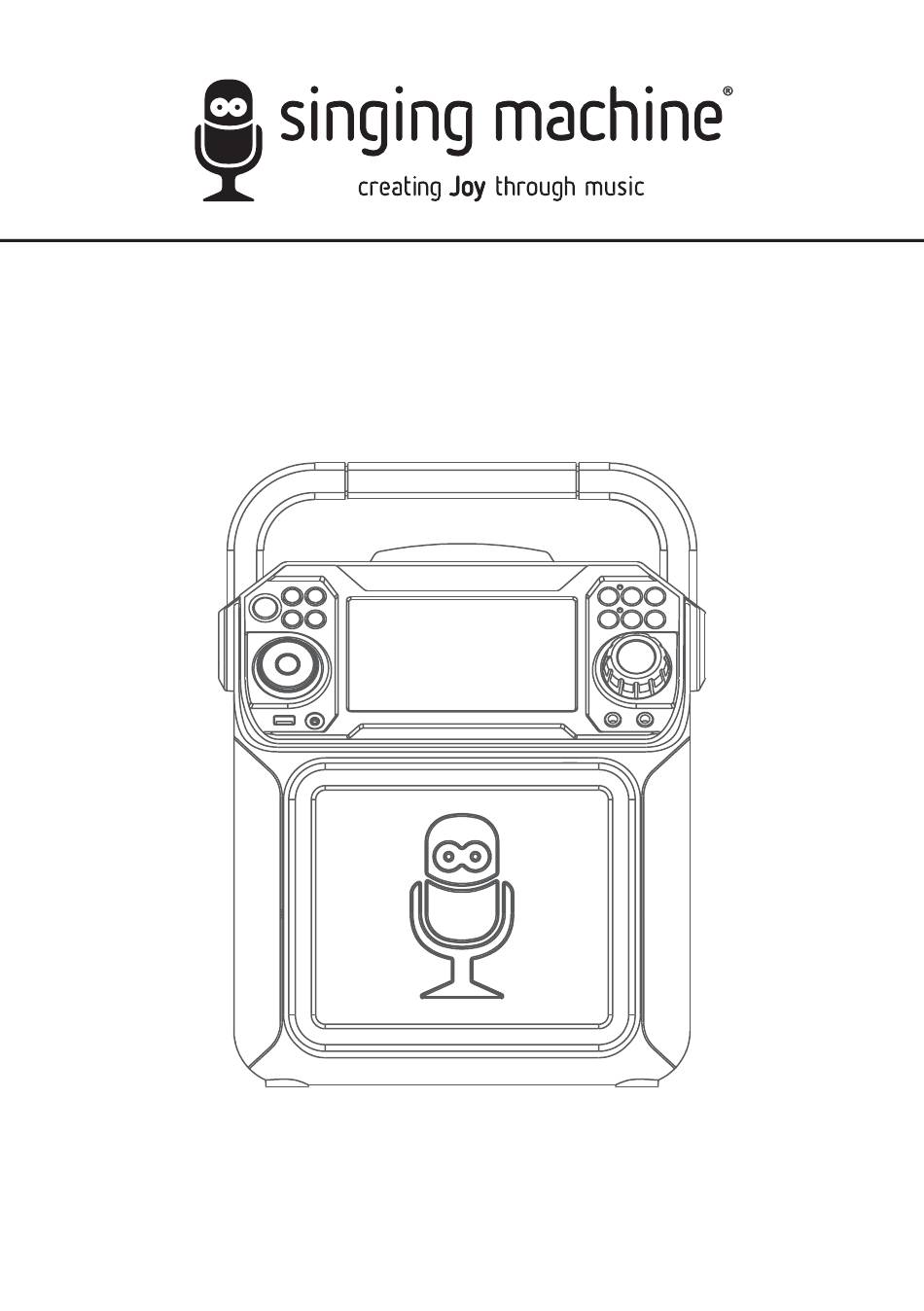

STVG784BK/STVG784W
INSTRUCTION MANUAL/MANUAL DE INSTRUCCIONES
/MODE D'EMPLOI
www.singingmachine.com
The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
The Singing Machine® es marca registrada de The Singing Machine Co., Inc.
The Singing Machine® est une marque déposée de The Singing Machine Co., Inc.

Advertisement

Table of Contents
loading

Related Manuals for The Singing Machine STVG784BK

Summary of Contents for The Singing Machine STVG784BK

  • Page 1 /MODE D’EMPLOI www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. The Singing Machine® es marca registrada de The Singing Machine Co., Inc. The Singing Machine® est une marque déposée de The Singing Machine Co., Inc.

  • Page 2: Important Safety Information

    Warnings FCC WARNING: This equipment may generate or use radio frequency energy. CAUTION Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. RISK OF ELECTRIC SHOCK The user could lose the authority to operate this equipment if an unauthorized DO NOT OPEN change or modification is made.
  • Page 3 Included Please make sure that the following items are included. Main Unit AC Adapter Manual Wired Microphone — E2 —...
  • Page 4 Location of Controls (Top/Front) 1. Handle 22. MIC VOLUME Button 11. PLAY/PAUSE Button 2. CD Compartment 23. A.V.C. (Auto Voice 12. Navigation Button Control) button 3. LIGHT Button 13. USB Port 24. MASTER VOLUME 4. REPEAT/PROG Button 14. Navigation (Skip Control Button 5.

  • Page 5: Location Of Controls (Rear)

    Location of Controls (Rear) 1. HDMI Jack 2. DC IN Jack 3. Extendable MIC holders — E4 —...
  • Page 6 Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 u as well as Mic jack 2 v (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone cord as it will cause damage to the encased wiring.
  • Page 7 Connection Connecting to AC Power Insert the small end of the AC adapter into the DC IN jack on the rear of the unit. Insert the other end (with the 2 blades) into a conveniently located AC outlet having 120V AC, 60Hz. Note: Make all connections before connecting to AC power.
  • Page 8 Connection Connecting to Line In Jack Connect an external device by using an To External Unit appropriate cable (3.5mm audio cable not AUDIO OUTPUT / HEADPHONE JACK included) as shown. Note: See page E19 to select and use the Line In function. Disco Lights When the unit is turned on, the Light mode 1 is automatically activated.
  • Page 9 Operation Playing a CD Connect the unit as described previously. Press the ON/OFF button to turn the unit on. The power indicator will light solid. Lift the CD door and insert a CD (with standard or MP3+G files) or a CD+G by gently pressing it on the center spindle.
  • Page 10 Operation Playing a CD (Continued) Adjust the volume to a comfortable level using the MASTER VOLUME control. Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Pressing MIC VOLUME button to adjust the mic volume as desired.
  • Page 11 Operation Playing a CD (Continued) SKIP: Advance or go back one track by pressing the buttons. SEARCH: When playing any audio CD, press and hold the button. The CD will search at high speed in the forward or backward direction. Normal play will continue when you release the button.
  • Page 12 Operation Playing a CD (Continued) RECORDING YOUR SINGING: Insert a USB drive first, then press the REC button; the song will start over and recording will begin. The recording indicator will light solid. REC with track progress in percentage will appear at the top left of the screen.
  • Page 13 Operation Playing Songs from the USB Connect the unit as described previously. Press the ON/OFF button to turn the unit on. The power indicator will light solid. Insert a USB flash drive into the USB port on the unit. Make sure to download music from the Karaoke store.
  • Page 14 Operation Playing Songs from the USB (Continued) Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Pressing MIC VOLUME button to adjust the mic volume as desired. Increase this control will increase the volume of both microphones.
  • Page 15 Operation Playing Songs from the USB (Continued) REPEAT: To repeat the current track, press the REPEAT/PROG button once during playback, will appear in the display and the current track will be repeated. Press the REPEAT/PROG button twice, will appear and all MP3 tracks inside the current folder will be repeated continuously.
  • Page 16 Operation Playing Songs from the USB (Continued) PAUSE: During playback, if you wish to pause the music momentarily, press the PLAY/ PAUSE button. Press again to resume normal playback. VOICE EFFECTS: Repeatedly press the VOICE EFFECT or buttons to select from ECHO, FEMALE, MALE, CHIPMUNK, ROBOT or RADIO vocal effects.
  • Page 17 Operation Using a Bluetooth Device Connect the unit as described previously. Press the ON/OFF button to turn the unit on. The power indicator will light solid. Press the button or repeatedly press the LIGHTS/FUNCTION button to select the Bluetooth mode; “bt” will appear in the display.
  • Page 18 Operation Using a Bluetooth Device (Continued) • On some Bluetooth devices, once pairing is complete, select your Bluetooth device as “Use as Audio Device” or similar. • If connection is lost after successful pairing, check to make sure the distance between speaker and Bluetooth enabled device does not exceed 30 feet/10 meters.
  • Page 19 Operation Using a Bluetooth Device (Continued) SKIP: Advance or go back one track by pressing the buttons. RECORDING YOUR SINGING: Insert a USB drive first, then press the REC button; the song will start over and recording will begin. The recording indicator will light solid.
  • Page 20 Operation Using the LINE IN Jack Connect the unit as described previously. Press the ON/OFF button to turn the unit on. The power indicator will light solid. Connect the external unit to the LINE IN Jack on the front of this unit.
  • Page 21 Operation Using the LINE IN Jack (Continued) Pressing MIC VOLUME button to adjust the mic volume as desired. Increase this control will increase the volume of both microphones. RECORDING YOUR SINGING: Insert a USB drive first, then press the REC button; the song will start over and recording will begin.

  • Page 22: Operation

    • Remove (eject) the USB flash drive from your Select and purchase your favorite computer. karaoke music from the Singing Turn on the Singing Machine and connect the USB Machine Download Store. flash drive. Download your selected purchase(s) from the Singing Machine Digital •...

  • Page 23: Troubleshooting Guide

    Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the ON/OFF button to turn power on. • Confirm that the AC adapter is connected securely to the back of the unit. •...

  • Page 24: Specifications

    The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by The Singing Machine Company, Inc. is under license. Other trademarks and trade names are those of their respective owners.
  • Page 25 The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B Ontario, CA 91761-1413 USA The Responsible Party Company Name : The Singing Machine Company, Inc. Address : 6301 NW 5th Way, Suite 2900, Fort Lauderdale, FL33309, USA PRINTED IN CHINA...
