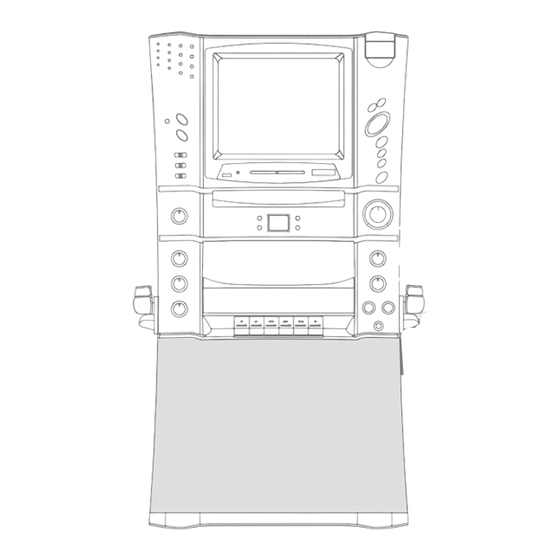

The Singing Machine STVG-707 Instruction Manual

The Singing Machine STVG-707 Instruction Manual

Semi-pro compact disc + graphics with built-in tv, video camera karaoke center

Advertisement

Instruction Manual
STVG-707
Please read before using this unit.
Semi-Pro Compact Disc +
Graphics With Built-In TV, Video
Camera Karaoke Center

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STVG-707 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for The Singing Machine STVG-707

  • Page 1 Instruction Manual STVG-707 Please read before using this unit. Semi-Pro Compact Disc + Graphics With Built-In TV, Video Camera Karaoke Center...
  • Page 2: Ventilation Warning

    WARNINGS TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read Instructions - All the safety and operating instructions should be read before the product is operated. Retain Instructions - The safety and operating instructions should be retained for future reference. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. Follow Instructions - All operating and use instructions should be followed.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 15. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the...
  • Page 5 Multiple Karaoke music center - it plays audio Compact Discs, CD+Graphics discs and Cassette tapes in its cassette deck. - lift up camera lens to display your image on the Singing Machine’s monitor. Built-In Speaker - lets you share the music with your family or friends.
  • Page 6: Control Locations

    5. PROGRAM LED 6. PLAY/PAUSE LED 7. Model Number 8. TUNING Knob 9. LED Display 10. VIDEO CAMERA 1 2 3 STVG-707 11. CD Compartment 12. ON/OFF Button 13. ON/OFF LED 14. MEGA BASS Button 15. FUNCTION Selector 16. MONITOR Selector 17.
  • Page 7 CONTROL LOCATIONS (Fig. 2) FRONT VIEW 31. STOP Button 32. PROGRAM Button 33. REPEAT Button 34. OPEN/CLOSE Button 35. MASTER VOLUME Control 36. CDG LED 37. MIC 1 Volume 38. MIC 2 Volume 39. MIC Holder 40. MIC 2 Jack 41.
  • Page 8: Making The Connections

    White and Red are for left and right audio connections and the yellow is for connecting the video. Make sure that you have a CDG disc in the Singing Machine and playing when you are making this connection. You will know you have the proper settings on your TV or VCR as soon as you see the Singing Machine logo or lyrics on the screen! NOTE: Occasionally, a black shadow might appear on the background image of the TV screen.
  • Page 9 (1) Locate the multicolored patch cords. (2) Connect video cable (yellow) to the Video In of the back of the Singing Machine. (3) Connect the other end of the video cable (yellow) to the Video Output on another video source such as a VCR.
  • Page 10 Plug the white end of the patch cord into the white AUX OUT jack on the STVG-707. Plug the red end of the patch cord into the red AUX OUT jack on STVG-707. Now connect the other end of the cable’s white (left channel) and red (right channel) plugs to your TV or home stereo system’s ‘AUDIO IN’...
  • Page 11 To display your image on the Singing Machine’s monitor, set the MONITOR Selector to CAMERA mode. To turn off the monitor on the Singing Machine, set the MONITOR Selector to TV-OFF mode. Adjust the BRIGHTNESS, CONTRAST and VERTICAL HOLD controls at the back of the Singing Machine to have the best picture quality.
  • Page 12: Cd Or Cd+G Operation

    PLAYING CD OR CD+G DISC Reminders: Adjust MASTER VOLUME control on your STVG-707, TV or audio system to a comfortable level. Adjust MIC/ECHO/BALANCE controls as needed to achieve the desired mix of music and vocals through your TV or sound system.
  • Page 13 Step 4: Press PLAY to activate PROGRAM. Press the STOP button to clear all the programmed entries. MONITOR (FOR CDG ONLY) Set MONITOR Selector to CDG if you want to display a CDG lyrics on the Singing Machine’s monitor. MEGA BASS...
  • Page 14 TV OPERATIONS TV BROADCASTING RECEPTION Press the ON/OFF button. Switch FUNCTION Selector to TV/RADIO position. Switch MONITOR Selector to TV position. Turn TUNING knob to select desired TV channel with LO VHF/HI VHF/UHF channel selector. For the best signal, connect the unit to an aerial antenna using the external antenna jack or use the directional antenna on the back of the unit.
  • Page 15: Cassette Operations

    CASSETTE OPERATIONS LOADING AND UNLOADING CASSETTES Follow these steps to load and unload cassette: 1. Press STOP/EJECT button (12). 2. Insert cassette with desired side facing you, tape surface down. Avoid touching tape. 3. Close cassette holder/tape deck cover. To ensure firm locking of cassette holder/tape covers, please press the cassette door(s) at the centre point (or the rightmost positions) until a...
  • Page 16 P U B L I C A D D R E S S - U S I N G A MICROPHONE The STVG-707 can be used as a PA (PublicAddress System). Public Address (PA) Operation Procedures Connect the supplied Microphone to either one of the MIC input sockets.
  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE POWER SWITCH After using the STVG-707, turn off the power by pressing the ON/OFF button. CLEANING THE UNIT To clean the exterior of the unit, simply wipe with a soft clean cloth moistened with plain lukewarm water.
  • Page 18: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE If you have followed the instructions and are having difficulty operating the unit, locate the PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE column to locate and remedy the problem. PROBLEM No power when ON/OFF No power plug connection at is pressed.
  • Page 19 TROUBLE SHOOTING GUIDE PROBLEM No sound - If audio is Source Selection on TV or going through TV or VCR is not correct. VCR. Dirty capstan. Irregular cassette tape CASSETTE winding. unsteady tape sound. Pitch control may be in wrong position. The erasure prevention tabs are broken out.
  • Page 20 TROUBLE SHOOTING GUIDE PROBLEM The Camera Lens is down. No image display on Singing Machine’s MONITOR Selector is not monitor. set properly. Camera has not warmed up. Camera lens is dirty. Image is blurry. Camera lens is out of focus. Please call Customer Service at (866) 670-6888 if the Trouble Shooting Guide information doesn’t correct your problem.
  • Page 21: Specifications

    SPECIFICATIONS AUDIO SECTION: OUTPUT POWER (MAXIMUM) OUTPUT IMPEDANCE CD PLAYER SECTION: FREQUENCY RESPONSE SIGNAL - TO - NOISE RATIO WOW AND FLUTTER D - A CONVERSION NUMBER OF PROGRAMS SAMPLING SYSTEM TV SECTION: SYSTEM LO VHF CHANNEL HI VHF CHANNEL UHF CHANNEL RADIO SECTION: AM FREQUENCY RANGE...
  • Page 22: The Singing Machine Karaoke Glossary Of Terms

    THE SINGING MACHINE KARAOKE GLOSSARY OF TERMS In addition to all of the terminology associated with consumer electronics products, a few additional terms are used almost exclusively in karaoke. These terms are meant to familiarize you with the world of Karaoke. The features listed below may not necessarily pertain to the particular model Singing Machine that you have.
  • Page 23 LIMITED WARRANTY and SERVICE THE SINGING MACHINE COMPANY , INC. warrants this product to be free from defects in material and workmanship for a period of Ninety (90) days from date of sale to the original consumer purchaser. Product will be replaced or repaired free of charge if it has proven to be defective within the Ninety (90) day period when said product is returned at customer expense within the warranty period.
  • Page 24 The Singing Machine Company, Inc. 707-0307-ENG-SPA-FRE01 6601 Lyons Road, Bldg. A7, Coconut Creek, FL33073-9902, USA. PRINTED IN CHINA TEL: (954) 596-1000 FAX: (954) 596-2000 VISIT OUR WEBSITE www.singingmachine.com...
