2. Wire It Up! (cont'd)
4.

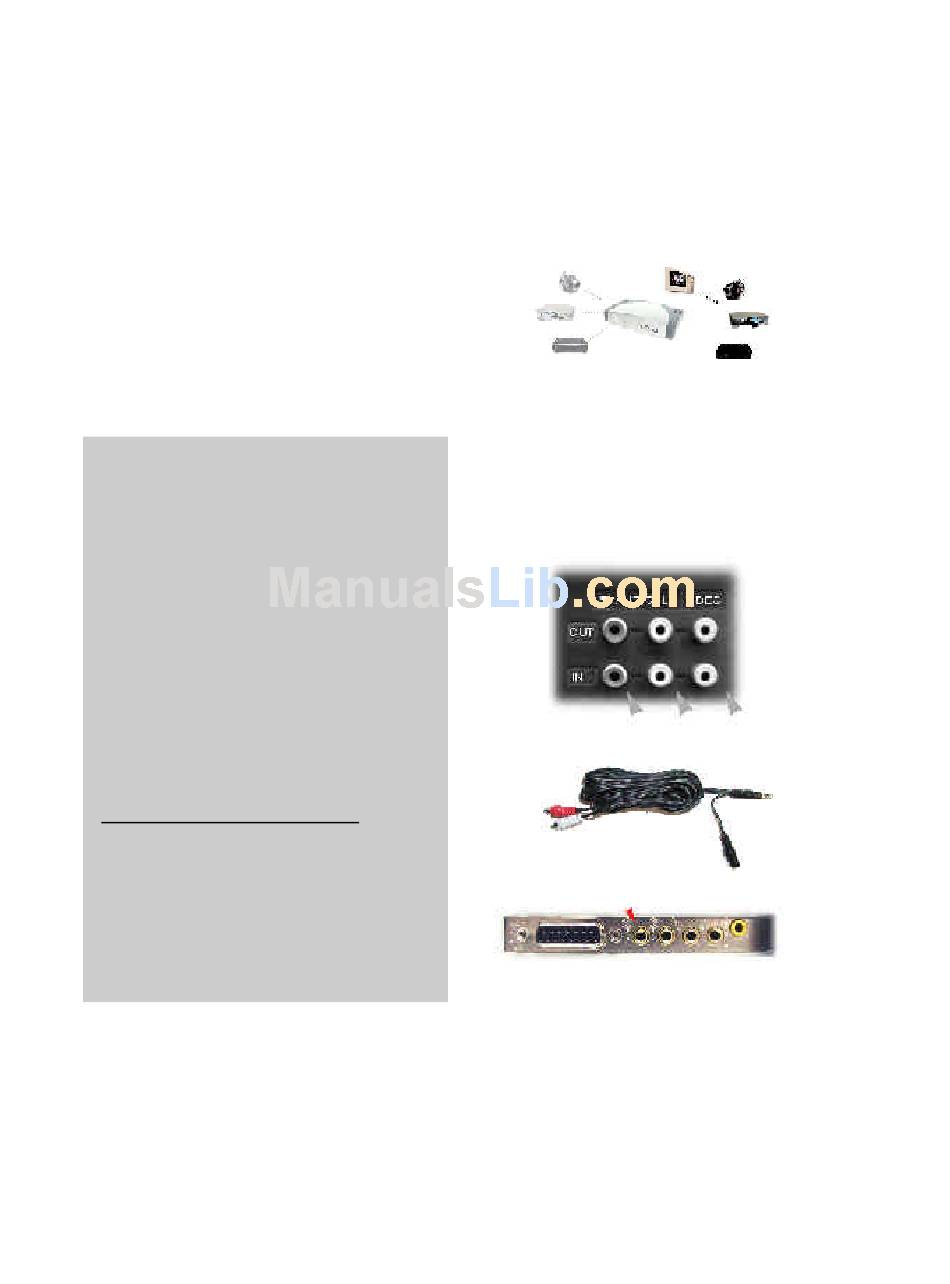

Connect the Audio Out of your PC to the
Audio In on your TV or VCR. This will send
recorded audio from your PC out for recording
or listening on your TV or VCR.
Connect the Right and Left RCA jacks of
(F) 9 ft. Audio out to TV/VCR
the
cable
to the Audio Inputs on your TV or
VCR.
Connect the 3.5mm stereo jack to the
Line Out or Speaker jack on your sound
card.
I
f you do not have a "Line Out" jack you can
connect this cable to your "Speaker Jack".
Then you can plug your speakers into the "Y"
female 3.5mm jack
Sound Card Color Coded Connectors:
Audio Line-In = Light Blue
Audio Line-Out = Lime Green
Microphone = Pink
Speaker Out/Subwoofer = Orange
Right to Left Speaker = Brown
*Sound Card Connector color codes according
to PC-99 spec.
12
CapWiz manual.p65
USB INSTANT DVD INSTALLATION
12
A/V Source
PC Sound Card
