Hardware description
A three-color LED allows the signaling of some module operations, such as data
transmission and reception, programming phase, and so on. The user can also use these
LEDs for his own application needs by means of dedicated APIs.
Finally, a programming connector allows firmware download and debug, even if it is possible
to use the remote firmware update feature to remotely update the firmware using the PLM,
as described further in this user manual. If the IAR - JLINK/JTRACE is used for the firmware
downloading, a simple JTAG adapter is necessary.
8/56

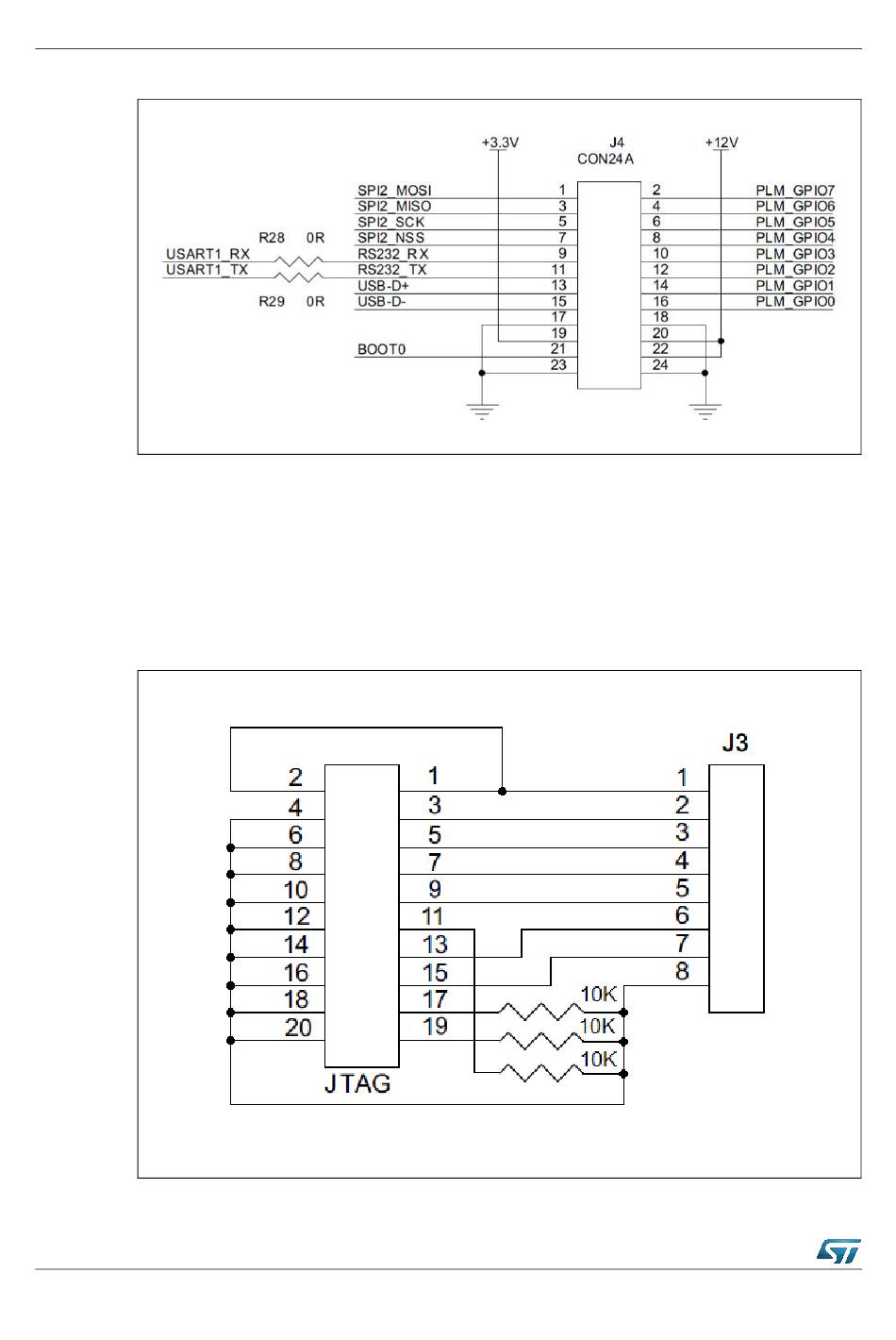

Figure 4. User interface connector

Figure 5. Programming connector JTAG adapter

DocID024383 Rev 1
Figure 5 shows the adapter schematics.
UM1619
