Hardware installation

4 Hardware installation
Connect a regulated dual DC power supply to the power connector J2 or use the power
source pins of connector J4 as described previously and power the module.
In order to download the firmware, plug the programmer adapter
programming connector J3 and the IAR JLink programmer in the JTAG connector of the
adapter.
Refer to
the application is launched, the LEDs should quickly switch on and off sequentially, and at
the end the orange LED should be switched on, indicating that the module needs to be
configured.
In order to configure the module, connect an RS232 DB9 female connector to one of the
available PC COM ports and the J4 connector as indicated in
Run the "Remote Console for GP ST7540" GUI. Click the OPTIONS tab and select the
correct COM port from the list shown in the COM port option box
In the CONFIGURATION tab, press the CONNECT button. The orange LED of the module
will flash twice and will stay switched on.
12/56
Section 6: Firmware description for the firmware download procedure. As soon as

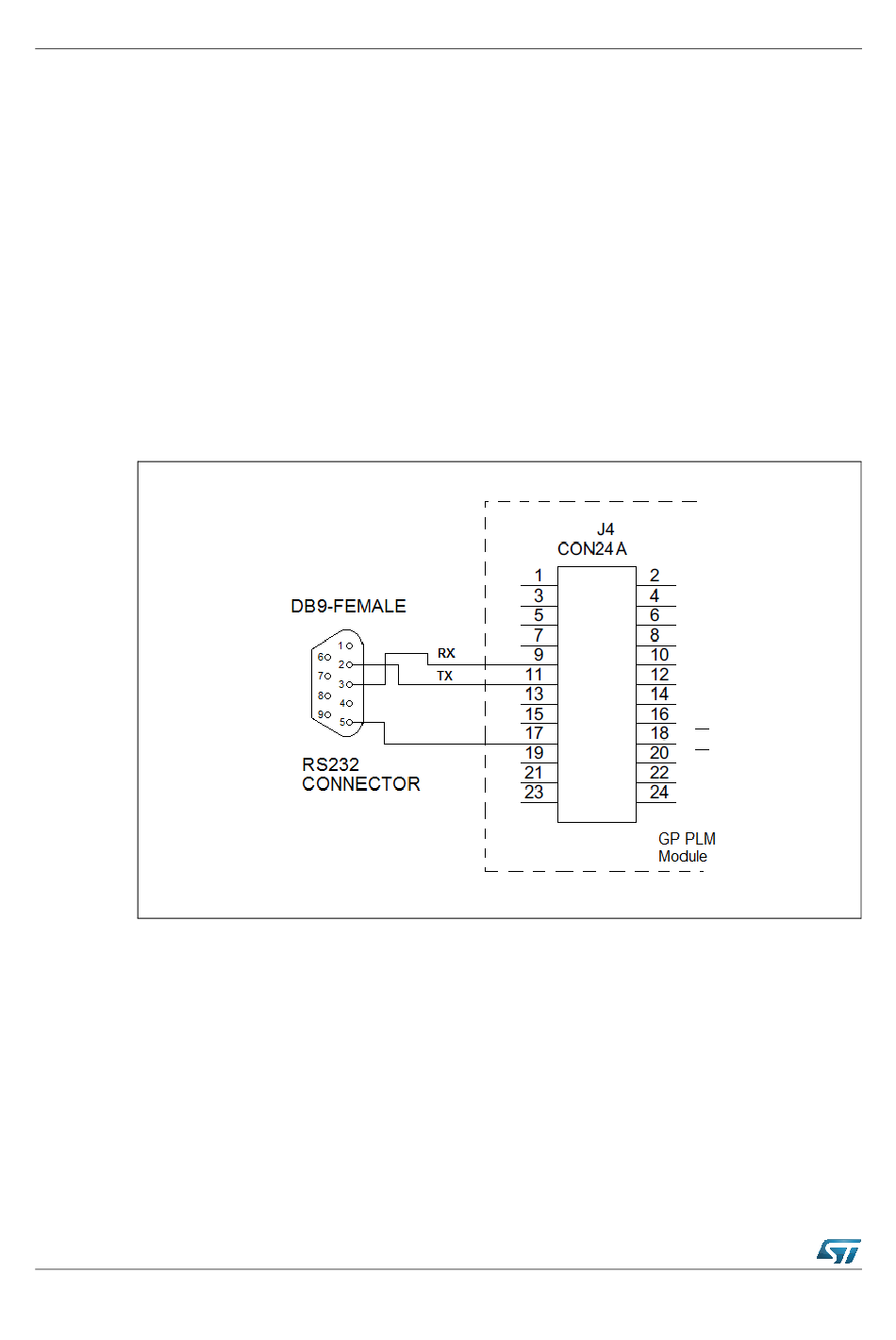

Figure 10. RS232 connection

DocID024383 Rev 1
UM1619
(Figure 5) into the
Figure 10.
(Figure 11).
