Step 1: Assembling the Toroidal

American Wavefrontier Corp
100 Pacifica Suite 260
Irvine, CA 92618

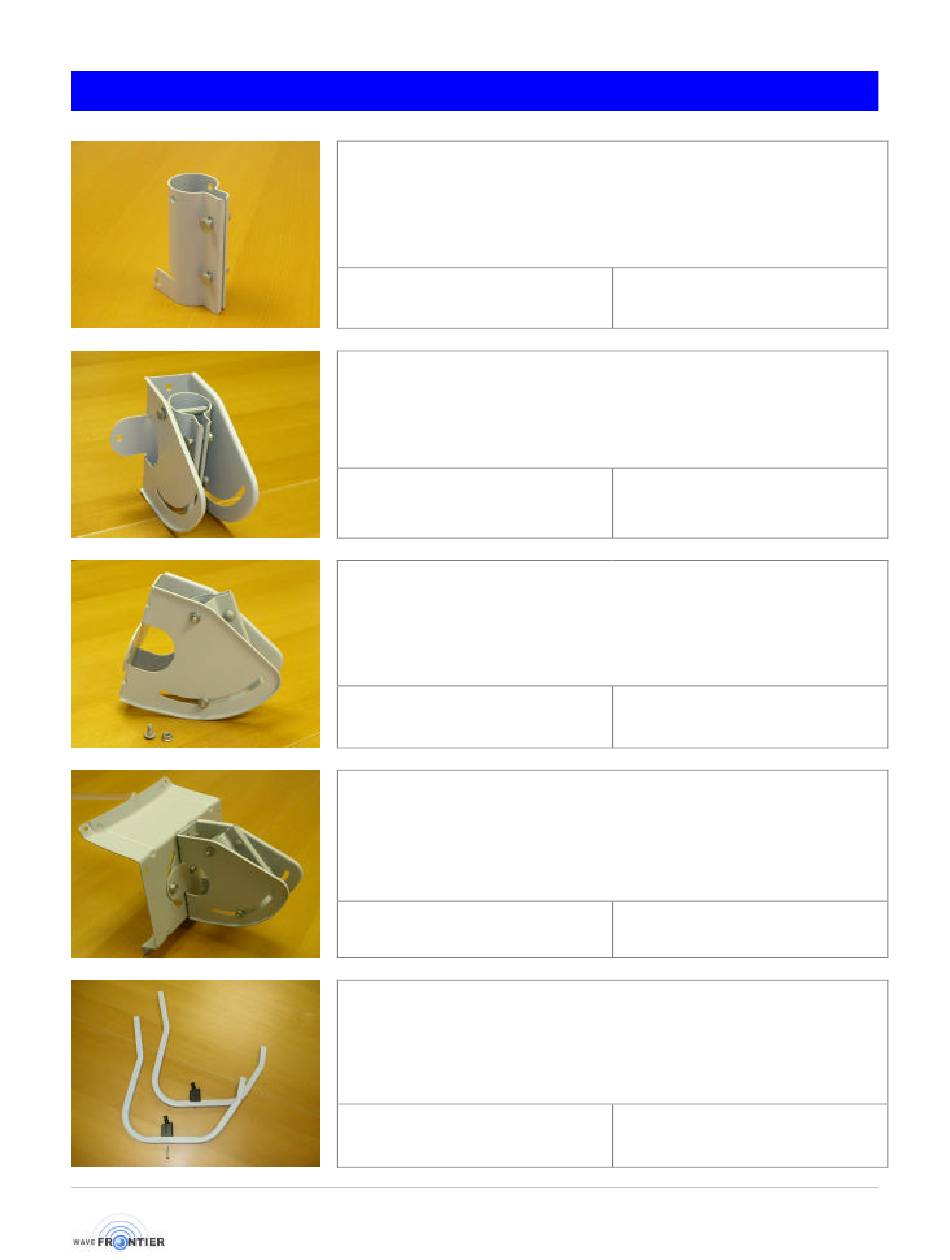

Start with Weaving tube. Do not tighten since you will need to
put this over the pole mount later on.
Parts: B11, B13
Place Enduring tube across weaving tube and Back Mount
Elevation. Tighten with bolt and nut.
Parts: A6, A13, B9, B13
Insert B10, B13. Make sure that nuts are outside of Back
Mount. This is where you make elevation adjustment later on.
For T90, use washer for extra holds. Washer also makes it
easier adjusting elevation control later on.
Parts: B10, B13, Washer
There are 3 connection points on Back Mount Tilt unit. Use B8
on the center with B13. Use Phillips driver to tighten. Then,
tighten B4 with B14 with hands. Nuts should be on the back
the unit so you can adjust skew angle later on.
Parts: B8, B13, B4, B14
Attach LNBF Guide Seat onto Support Arms. Then, plug in
Support Arm Cap.
Parts: A3, A8, B4, A12
Tools:
Tools:
Tools:
Tools: Phillips
Tools: Phillips
