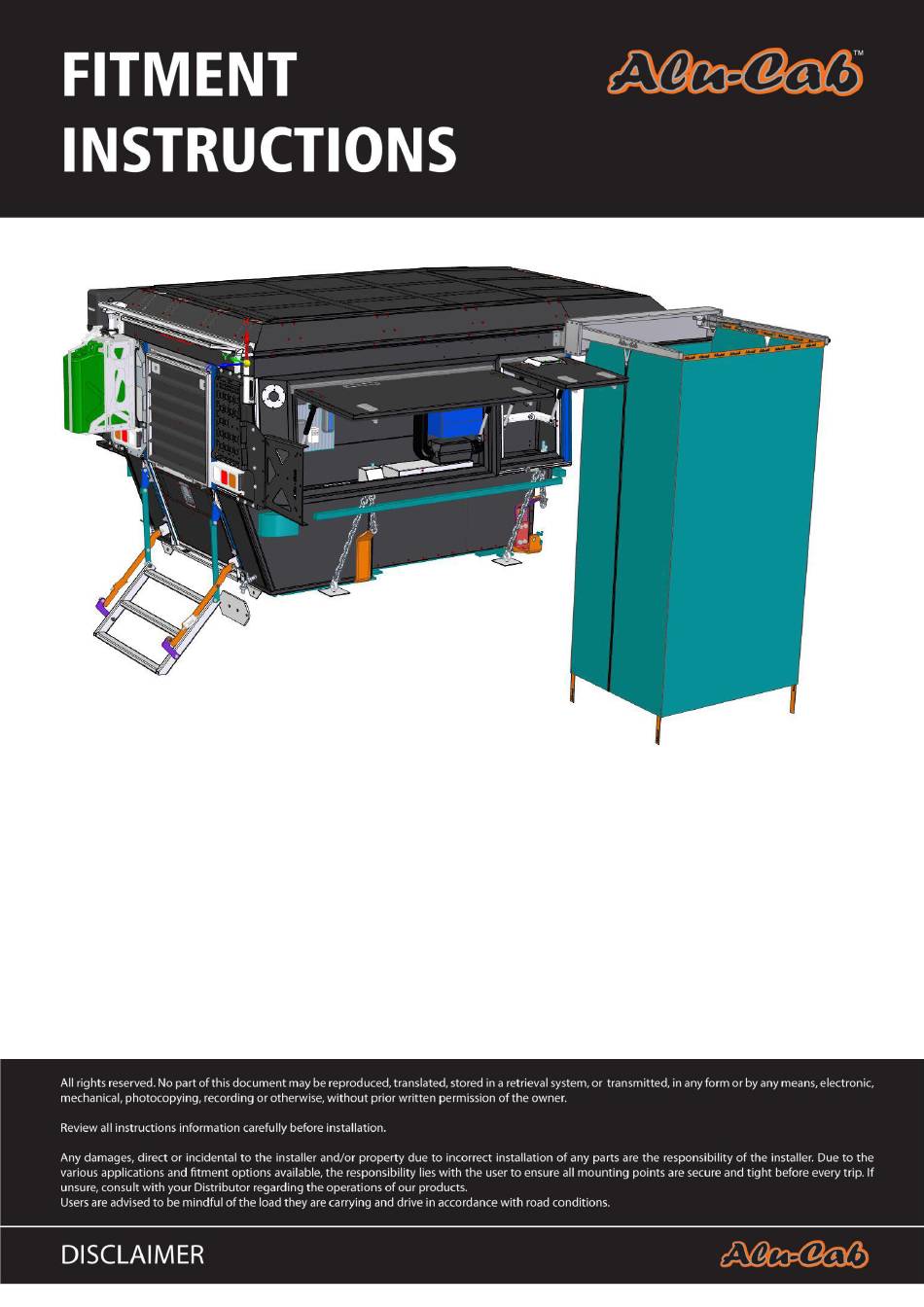

- Page 1 Shower Cube Khaya & Canopy Camper XC (SH-BKT-KH)
- Page 2 1. Shower Cubicle Fitment – Tools, Fasteners & Materials The tables below show the equipment, i.e. tools and fasteners required to start the shower cubicle fitment onto a Khaya & XC Canopy Camper. 1.1. Tools & Items Required: TOOLS ITEM Ratchet Turpentine 13mm Socket...
- Page 3 Figure 1.SHOWER CUBICLE Figure 2. LR-AW-000-002 Figure 3. 415-SHW-MNT-BKT-03-05 Figure4. AWN-BKT-02-002...
- Page 4 Mounting the brackets to the Khaya & Landcruiser XC Canopy Camper Align the top edge of the bracket with the top edge of the tent base, with the tab of the shower mount bracket(415-SHW-MNT-BKT-03-05) up against the tent base as seen below in Fig 5 &...
- Page 5 2. Remember to use Sika flex between the brackets and end plates for sealing purposes. M8x20mm Hex head bolt and M8 washers M8 Nyloc nuts and washers AWN-BKT-02-002 415-SHW-MNT-BKT-03-05 Figure 7. Fit the bracket (LR-AW-000-002) 740mm from the front of the tent base as seen below in Fig 8.
- Page 6 Use existing holes on the bracket as a jig for drilling holes LR-AW-000-002 M8 nyloc nuts and M8 washers M8x25mm Hex head bolt and M8 washer Fig 9. Remember to apply Sika flex between the brackets and the tent base for sealing purposes.
- Page 7 3. Mounting the shower cube. Fig 10. Loosen these 4 M8 nuts before fitting to mounting brackets on the tent . Figure 11. Figure 12. Place shower cubicle assembly with the bag on mounting brackets and secure shower cubicle to the mounting brackets using the same nuts that where removed in fig 10. And place M8 nut caps on all nuts.
