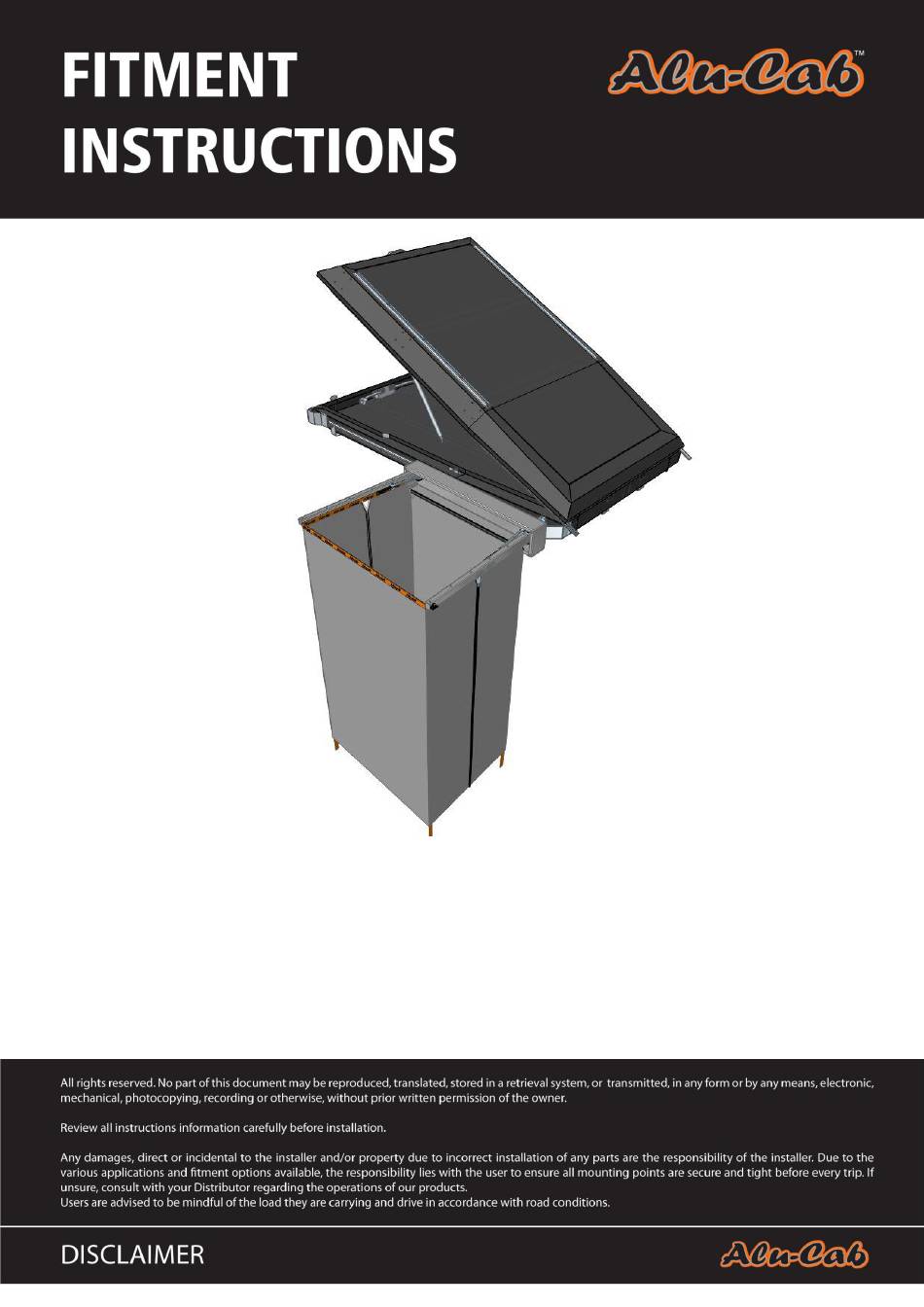

- Page 1 Shower Cube Gen 3 Tent & Canopy Camper DC (SH-BKT-GEN3/CC)
- Page 2 1. Shower Cubicle Fitment – Tools, Fasteners & Materials The tables below show the equipment, i.e. tools and fasteners required to start the shower cubicle fitment onto a Gen 3 Tent. 1.1. Tools & Items Required: TOOLS ITEM Ratchet Turpentine 13mm Socket Cloth 13mm Ring Flat Spanner...
- Page 3 Fig 1.SHOWER CUBICLE Fig 2. AWN-BKT-02-001 Fig 3. AWN-BKT-02-002 Fig 6. AWN-BKT-02-003 Fig 4. 415-SHW-GENE-MNT-BKT-01-00 Fig 5.415-SHW-MNT-BCK-PLT-03...
- Page 4 2. Mounting the front mounting bracket to Gen 3 tent Remove the mattress from the tent. Place the front mounting bracket (AWN-BKT-02-001) to the front corner of Gen 3 tent. Keep bracket to top edge of tent base. See Fig. 7. When mounting a bracket use Sika flex between the plates for...
- Page 5 Mount the front mounting bracket to the tent base. Place backing plate on inside of tent and fix with bolts, washers and nuts supplied. See Fig. 9. AWN-BKT-02-002 When mounting a bracket use sika flex between the plates for sealing purposes AWN-BKT-02-003 Figure 9.
- Page 6 3. Mounting the rear mounting bracket to Gen 3 tent Generic mounting bracket mounts over the cargo rail on side of tent. Place Rear Mounting Bracket (415-SHW-GENE-MNT-BKT-01-01) flush with the top edge of tent base. See Fig. 12. Figure 12. M8x20mm bolts Figure 13.
- Page 7 Use the bracket as the drill jig and drill the two holes into the tent base. See Fig.15. Drill holes Figure 15:Rear Mount Position Mount rear mounting bracket to tent base by placing the backing plate inside the tent then the bolts, washers and nuts. Tighten the bracket to the tent base. See Fig. 17. Place M8 Plastic Nut Caps on all M8 Nyloc Nuts to finish of the mounting bracket fitment.
- Page 8 4. Mounting the shower cubicle Place shower cubicle assembly with the bag on mounting brackets and secure shower cubicle to the mounting brackets using the same nuts that where removed in fig 19 See Fig. 19 & 20.
- Page 9 5. Mount Shower Cubicle on LHS of Gen 3 Tent To mount the Shower cubicle on the Gen 3 Tent or Canopy Camper Double Cab on LHS side, repeat procedure as for RHS. The front mounting bracket (AWN-02-001) can be use by just turning it upside down. For the Rear Mounting Bracket (415-SHW-GENE- MNT-BKT-01-00) This bracket is generic and can be used as is on any side of the tent.
