Alu-Cab SH-BKT-LB Fitment Instructions

Shower cube to front runner roof rack
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Shower Cube
to
Load bars
(SH-BKT-LB)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH-BKT-LB and is the answer not in the manual?

Questions and answers

Related Manuals for Alu-Cab SH-BKT-LB

Summary of Contents for Alu-Cab SH-BKT-LB

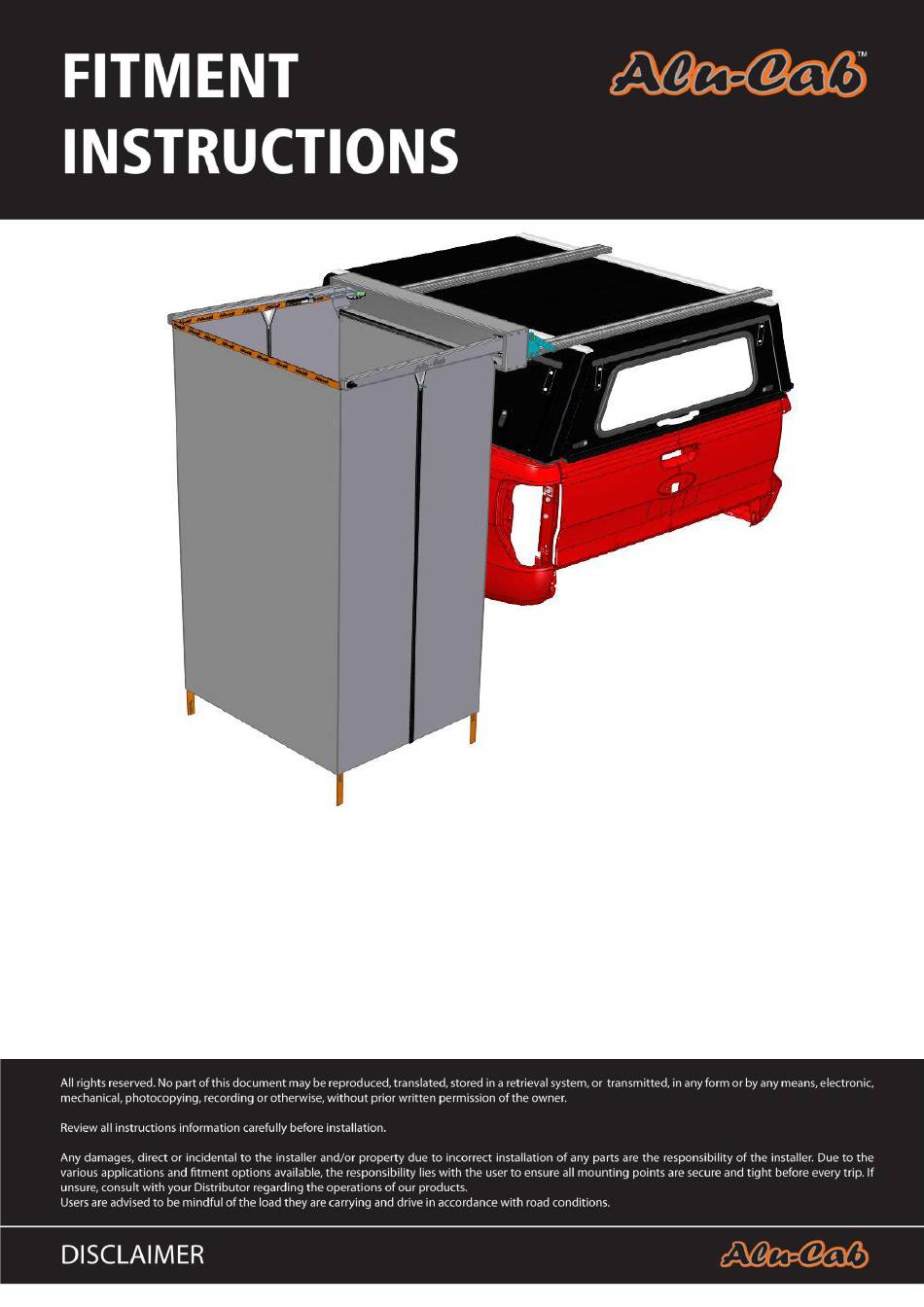

  • Page 1 Shower Cube Load bars (SH-BKT-LB)
  • Page 2 1. Shower Cubicle Fitment – Tools, Fasteners & Materials The tables below show the equipment, i.e. tools and fasteners required to start the shower cubicle fitment onto a Icarus Tent. 1.1. Tools & Items Required: TOOLS Ratchet 13mm Socket 13mm Ring Flat Spanner 1.2 Fasteners supplied: (Included with Shower Cubicle) ITEM HEX HEAD BOLT M8X20...

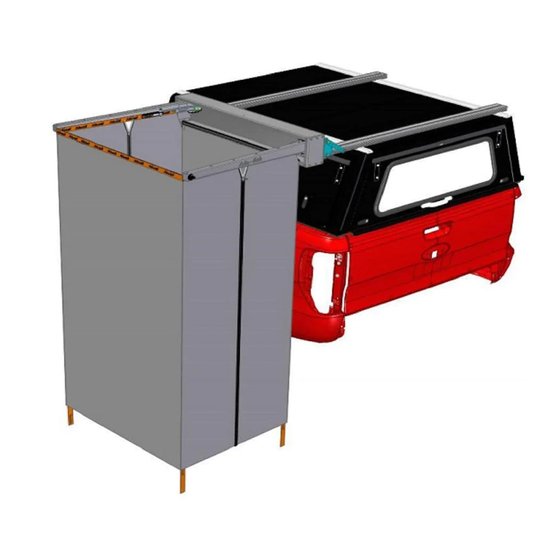

  • Page 3 Figure 1.SHOWER CUBICLE Fig 2. AMB-000-001 Rev b Fig 3. AMB-000-002...
  • Page 4 Mounting the brackets to Load bar Figure .4 Figure5 Figure .6 Figure 7. Sectional view mounting bracket sliding onto load bar. fit all bolts, washers and nuts to the brackets before fitting them to the load bar, as it has to slide into the slots as seen in figures 4,5 and 6.
  • Page 5 3. Mounting the shower cubicle Place shower cubicle assembly with the bag on mounting brackets and secure shower cubicle to the mounting brackets using the same nuts that where removed in fig 8. t Fig 8. Fig 9. Place M8 Plastic Nut Caps on all M8 Nyloc Nuts and bolt heads on the outside to finish of the mounting bracket fitment.
