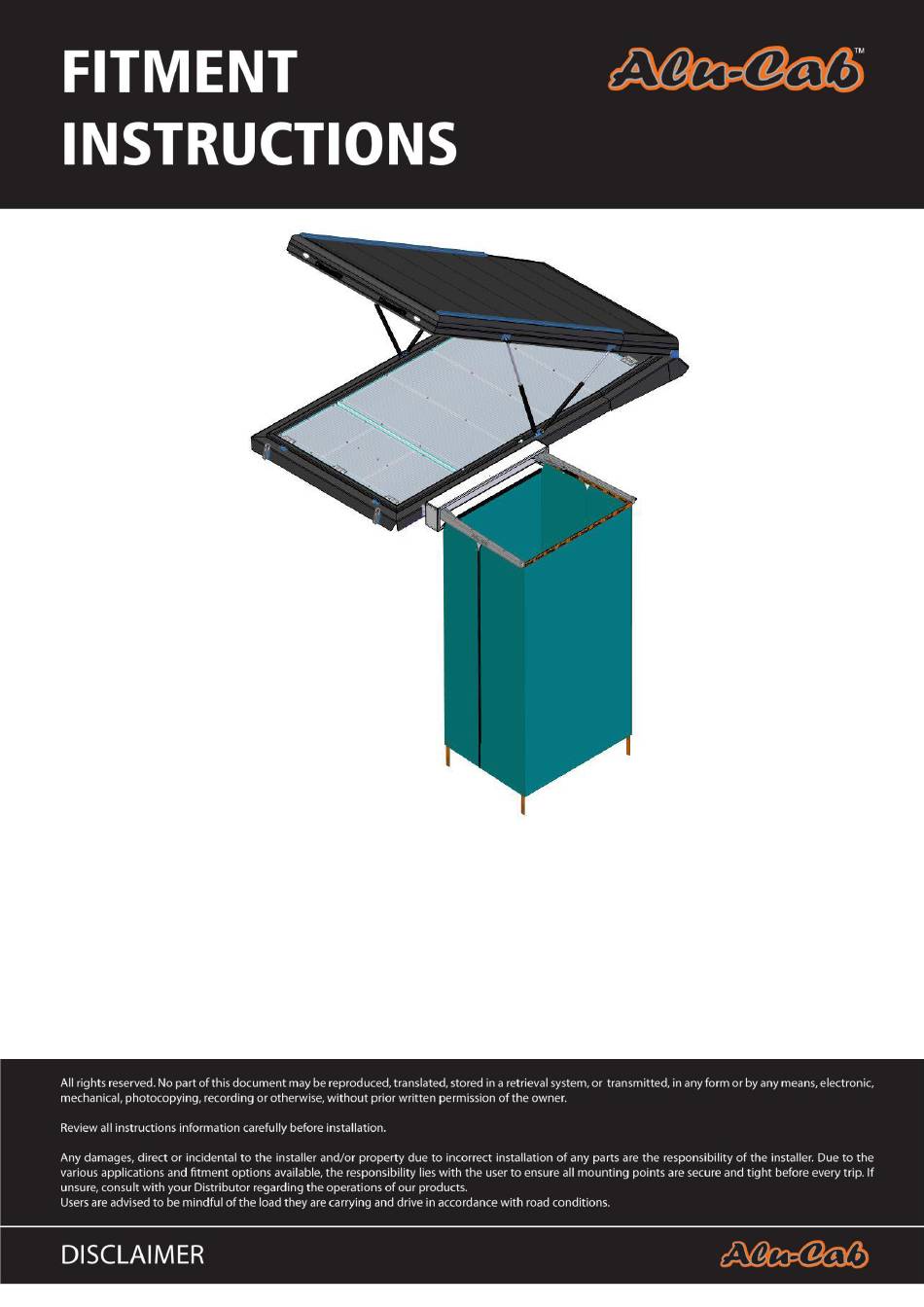

- Page 1 Shower Cube Hercules (SH-BKT-RC-TY)
- Page 2 1. Shower Cubicle Fitment – Tools, Fasteners & Materials The tables below show the equipment, i.e. tools and fasteners required to start the shower cubicle fitment onto a Hercules tent. 1.1. Tools & Items Required: TOOLS ITEM Ratchet Turpentine 13mm Socket Cloth 13mm Ring Flat Spanner Black sealant, silicone or Sikaflex...

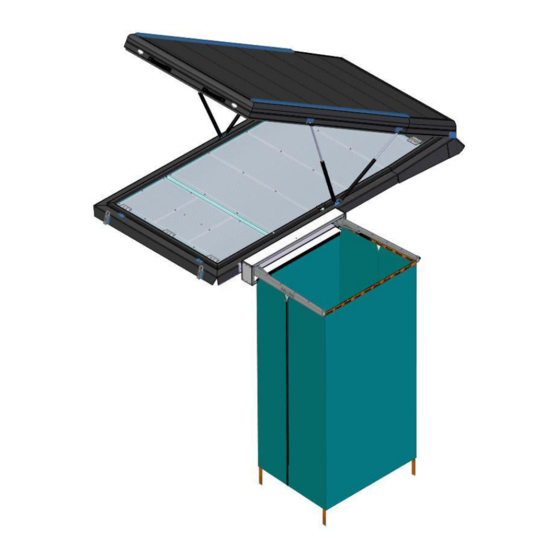

- Page 3 FIGURE 1: SHOWER CUBICLE FIGURE 2: TR-020-001-REV FIGURE 3: TR-AW-020-002 REV...
- Page 4 2. Mounting of the Brackets to the body Figure 4. Mount along the sides of the tent Mounting of the brackets( can be positioned anywhere along the TR-020-001-REV B) allocated area on the sides of the vehicle. Fit the (TR-020-001-REV B mounting bracket flange on top edge of the tent base and use the holes on the bracket as a jig to drill holes...
- Page 5 Stay clear of the vehicle mounting brackets Figure 6. Figure 7. 953.5mm spacing between the 2 brackets center to center TR-020-001-REV B HEX HEAD BOLT M8X100 NYLOC NUT M8 M8x20mm HEX BOLT WASHER M8 TR-AW-020-002 M8 rivnut Fig 8.
- Page 6 Place M8 Plastic Nut Caps on all M8 Nyloc Nuts and hex bolts to finish of the mounting bracket fitment. Mounting the shower cubicle. Loosen these 4 M8 nuts before fitting to mounting brackets on the tent Figure 9. Place shower cubicle assembly with the bag on mounting brackets and secure shower cubicle to the mounting brackets using the same nuts that where removed in figure 9.
