TERMINAL CAP

WIrIng ProCEDurE

CautIon
Power must not be applied to the device while
opening the housing or while plugging in or
removing the module.
1. Disassemble the enclosure by turning the housing
cover counterclockwise.
illustration of the xWatch assembly.
2. Carefully remove the camera module.
3. Connect the external wiring to the screw connectors
marked A-, B-, C-, and D- on the xWatch terminal
block. See Figure 6.
Important
Do not test any wiring connected to the xWatch
with a meg-ohmmeter. Disconnect wiring at
the camera before checking system wiring for
continuity.
2.1
WIRING TERMINAL BLOCK
INDEX PIN
QUICK CONNECT PLUG (4)

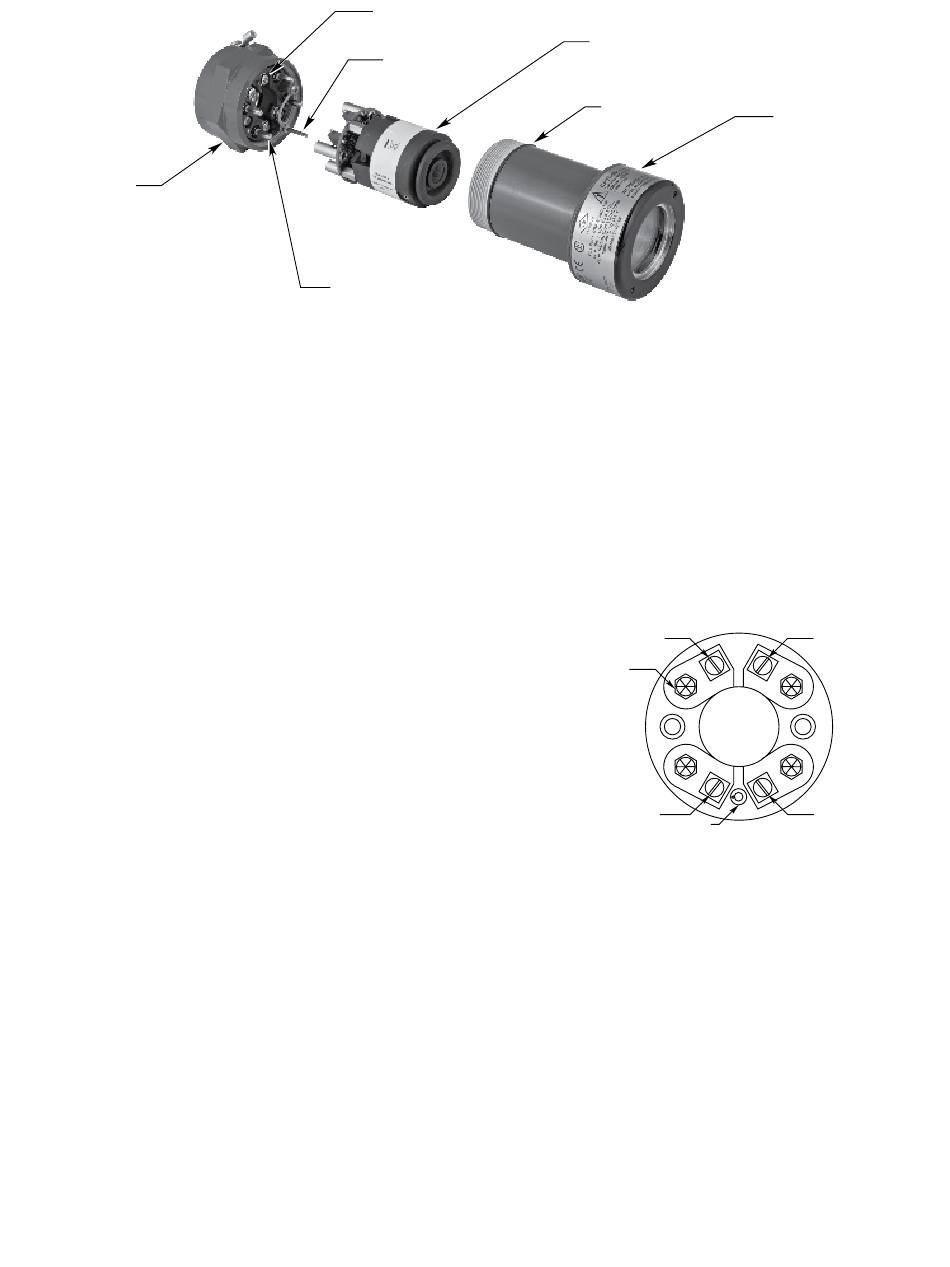

Figure 5—Exploded view of xWatch
See Figure 5 for an
CAMERA MODULE
O-RING (2)
4. Check all field wiring to be sure that the proper
connections have been made.
5. Using the index pin as a guide, install the camera
module on the terminal block.
6. Re-assemble the device housing.
7. Make the final sighting adjustments and ensure that
the mounting bracket hardware is tight.
VIDEO – (A)
QUICK CONNECT PLUG (4)
POWER + (B)
A2365
Figure 6—xWatch Wiring terminal Block
6
HOUSING COVER
A2366
VIDEO + (D)
POWER – (C)
INDEX PIN
95-8600
