Important
Be sure to read and understand the entire
instruction manual before installing or operating the
system. Any deviation from the recommendations
in this manual may impair system performance and
compromise safety.

Description

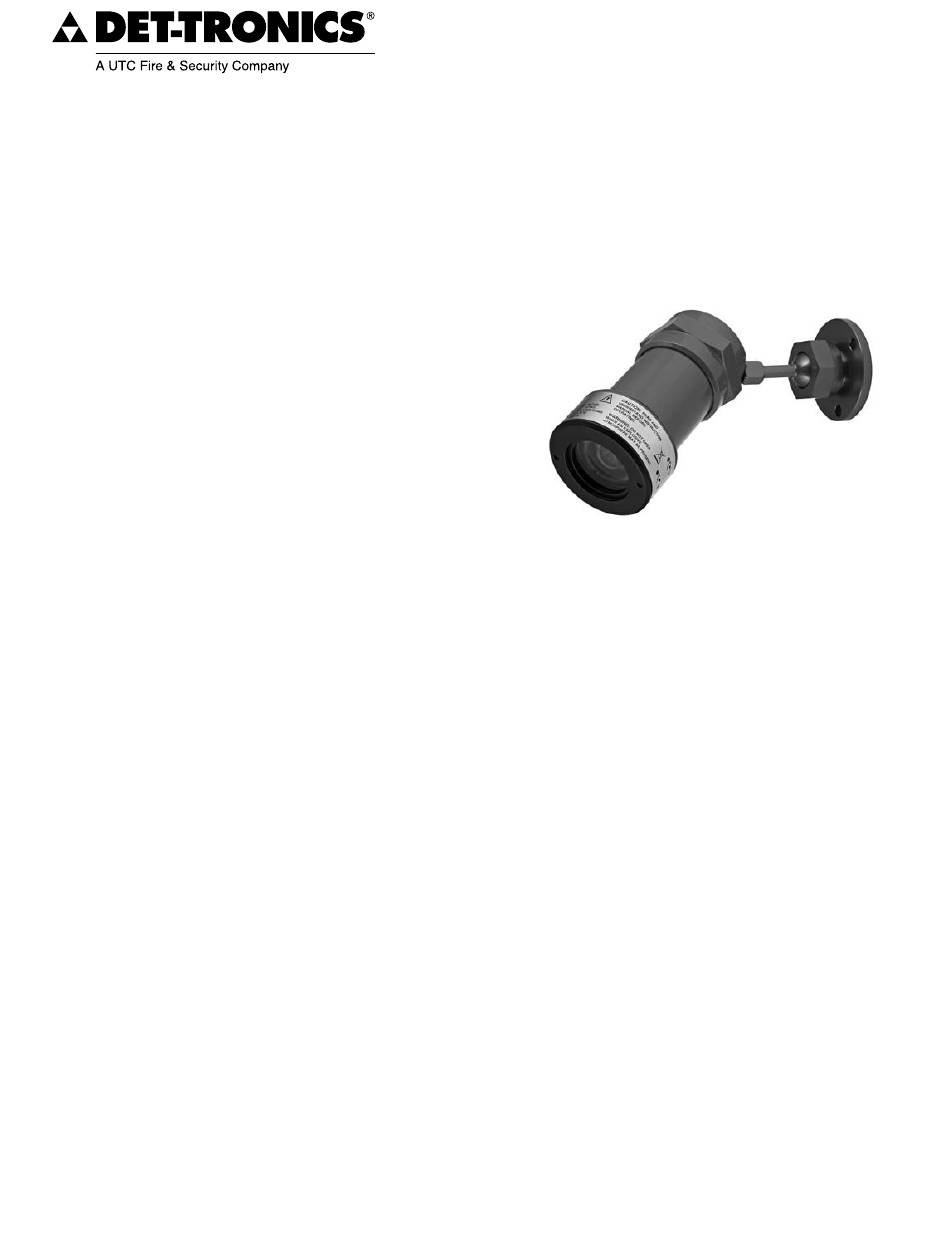

The xWatch Surveillance Camera produces a high
resolution color video picture using a camera module
that is mounted inside an explosion-proof NEMA 4X rated
housing. The device's explosion-proof rating makes it
suitable for Class I, Div. 1, Groups B, C and D locations.
xWatch can be used alone or in combination with fire
and gas detectors in any application that requires CCTV
surveillance capabilities.
The xWatch can be used in any of three configurations:
• xWatch can be used as a stand alone device to
perform typical CCTV functions.
• An xWatch camera module can be retrofitted in place
of the UV tube module in an existing C7050 Flame
Detector to provide basic visual information.
• xWatch can be ordered from the factory as a
combined unit with any X-Series flame detector. With
this arrangement, the camera and detector share the
same field of view.
In the event of a fire or gas alarm, the operator can
immediately view the monitored area to determine whether
personnel are present and safe. An accurate evaluation
of the hazard's size, nature, location and severity can be
determined quickly and safely.
The use of a digital video recorder (DVR) to capture the
event provides a permanent record for future analysis of
what occured.
©Detector Electronics Corporation 2009
2.1
xWatch Explosion-Proof Camera
®

Features

• Low cost surveillance of any flame, gas, or toxic
hazard location
• Parallel, non-interfering operation with hazard
detection system
• Easy connection to a video switcher using twisted
pair wiring
• Use existing wiring if suitable
• Easy retrofit into standard C7050 housing
• Simple no tool exchange of the tube module to
camera
• Compact housing for easy installation in small
spaces
• Ideally suited for remote and/or inaccessible areas
• Informed, appropriate response to incidents
• Pre- and post-event analysis of video recording
1
