Summary of Contents for UTC Fire and Security Det-Tronics xWatch X7050

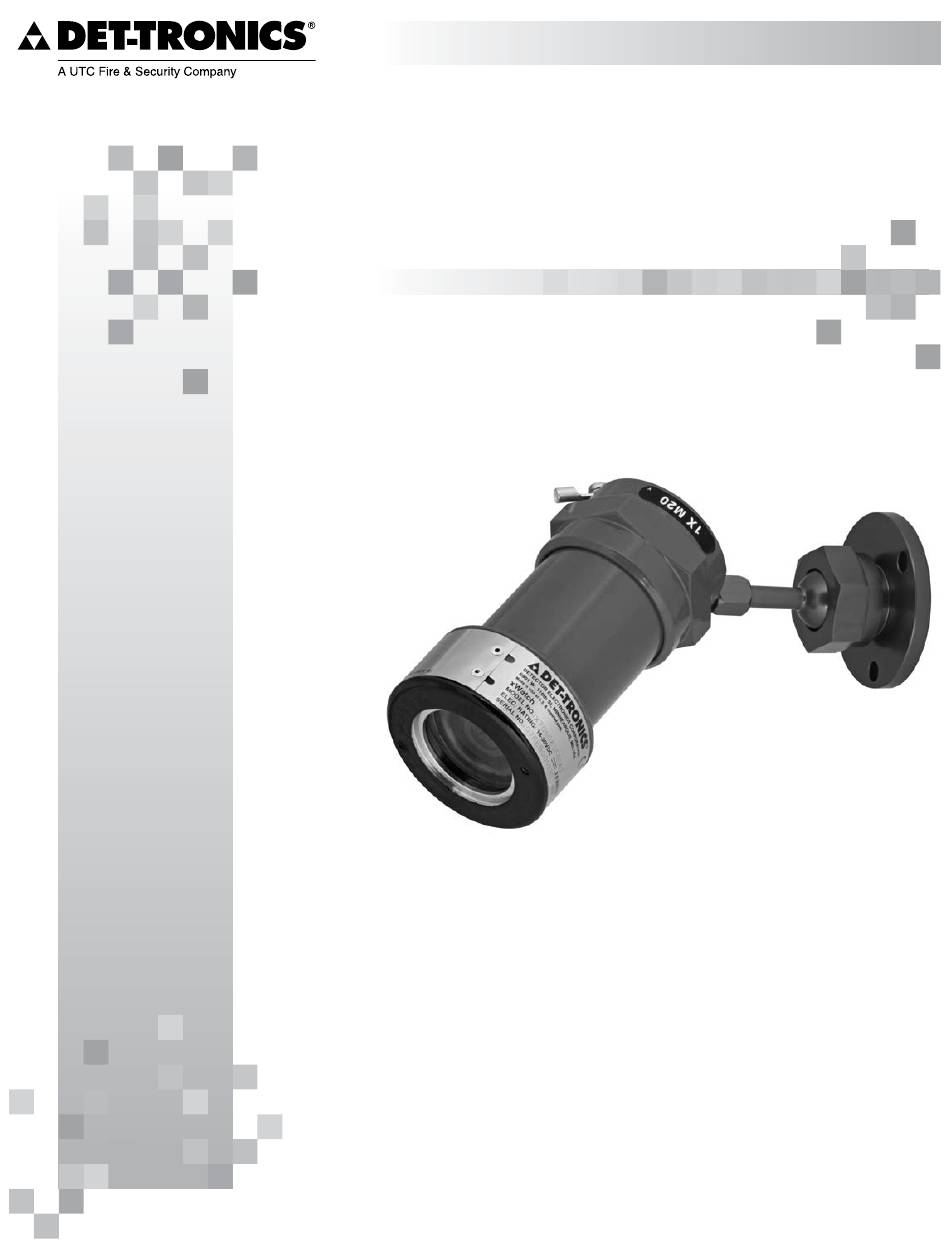

- Page 1 Instructions 95-8600 xWatch ® Explosion-Proof Camera X7050 6/09 95-8600...
-
Page 2: Table Of Contents
Table Of Contents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 features . -
Page 3: Description

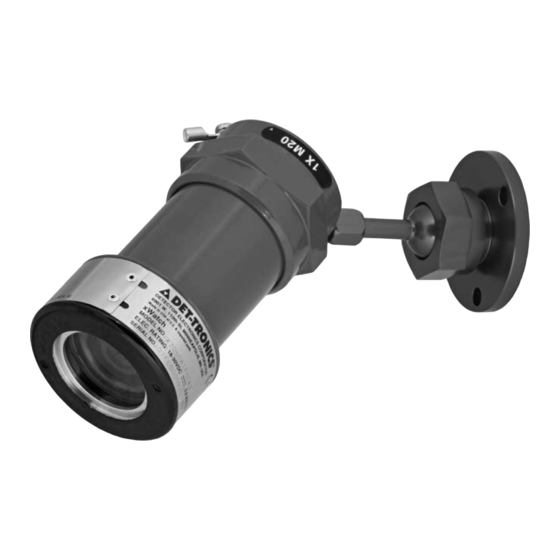

InstruCtIons xWatch Explosion-Proof Camera ® X7050 Important Be sure to read and understand the entire instruction manual before installing or operating the system. Any deviation from the recommendations in this manual may impair system performance and compromise safety. Description The xWatch Surveillance Camera produces a high resolution color video picture using a camera module that is mounted inside an explosion-proof NEMA 4X rated housing. -
Page 4: General Application Information
General application The monitor end must terminate the video cable inFormation with 100 ohms. Since most monitors have a built-in termination resistor of 75 ohms instead of 100 ohms, The xWatch has a balanced differential video output a balun or other matching network (video converter) for driving a long distance twisted pair signal to a must be used. -
Page 5: Specifications
speciFications HOuSing matEriaL— Aluminum or 316 Stainless Steel OPErating tEmPEraturE— –20°C to +70°C SHiPPing WEigHt (Approximate)— Aluminum: 1.2 pounds (0.6 kg) HaZarDOuS LOCatiOn rating— Stainless Steel: 2.2 pounds (1.0 kg) –40°C to +75°C DimEnSiOnS— StOragE tEmPEraturE— See Figures 2, 3 and 4. –30°C to +80°C rELativE HumiDity—... -
Page 6: Important Safety Notes
important saFety notes installation WarnIng CautIon Do not open the camera assembly in a hazardous Installation and wiring of the xWatch should be area when power is applied. The device contains performed only by qualified personnel. no serviceable components and should not be opened, except during installation and setup. -
Page 7: Camera Location
CAMErA loCAtIon Video Cable Considerations Cameras should be positioned to provide the best Proper video cable will ensure that the best quality video unobstructed view of the area to be monitored. If the is displayed on a remote monitor. Because composite xWatch is to monitor the same area as the detector, video frequencies span the range of 25 Hz to 6 MHz, it should be mounted as close to the detector as... -
Page 8: Wiring Procedure
WIRING TERMINAL BLOCK CAMERA MODULE INDEX PIN O-RING (2) HOUSING COVER TERMINAL CAP QUICK CONNECT PLUG (4) A2366 Figure 5—Exploded view of xWatch WIrIng ProCEDurE Check all field wiring to be sure that the proper connections have been made. CautIon Using the index pin as a guide, install the camera Power must not be applied to the device while module on the terminal block. -
Page 9: Aiming The Camera
AIMIng thE CAMErA lEVElIng thE CAMErA In installations where the xWatch is used for monitoring If the image on the monitor does not appear to be level, the same hazardous area as a single detector, the this can be corrected by rotating the camera module recommended procedure for ensuring that the camera within the xWatch. -
Page 10: Converting A C7050 Flame Detector To X7050 Xwatch
convertinG a c7050 Flame Remove the existing UV module from the C7050 Detector to X7050 XWatch detector. Disconnect the existing wiring at the controller. An xWatch camera module can be installed in place of Connect the grounding strap between the new the UV tube module in an existing C7050 Flame Detector index pin and the terminal mounting screw per the to provide basic visual monitoring capability. -
Page 11: Troubleshooting
trouBleshootinG maintenance The xWatch camera is not designed to be repaired in the ClEAnIng field. If it is determined that the problem is caused by The xWatch camera requires no periodic calibration or an electronic defect, the device must be returned to the servicing. -
Page 12: Device Repair And Return
Device repair anD return Q1201A laser holder/laser is used for sighting the flame detector and xWatch camera. The Laser Holder Prior to returning devices, contact the nearest local easily attaches to the front of the detector or camera. Detector Electronics office so that a Return Material The Laser projects a red laser beam to show the exact Identification (RMI) number can be assigned. - Page 13 95-8600 Detector Electronics Corporation 6901 West 110th Street Minneapolis, MN 55438 USA T: 952.941.5665 or 800.765.3473 F: 952.829.8750 W: http://www.det-tronics.com X3301 Multispectrum PointWatch Eclipse ® Eagle Quantum Premier ® Eagle Logic Solver E: det-tronics@det-tronics.com IR Flame Detector IR Combustible Gas Detector Safety System Safety System Det-Tronics, the DET-TRONICS logo, and xWatch are registered trademarks or trademarks of Detector Electronics...
