Mircom MGC MIX-4010 Installation And Maintenance Instructions page 2

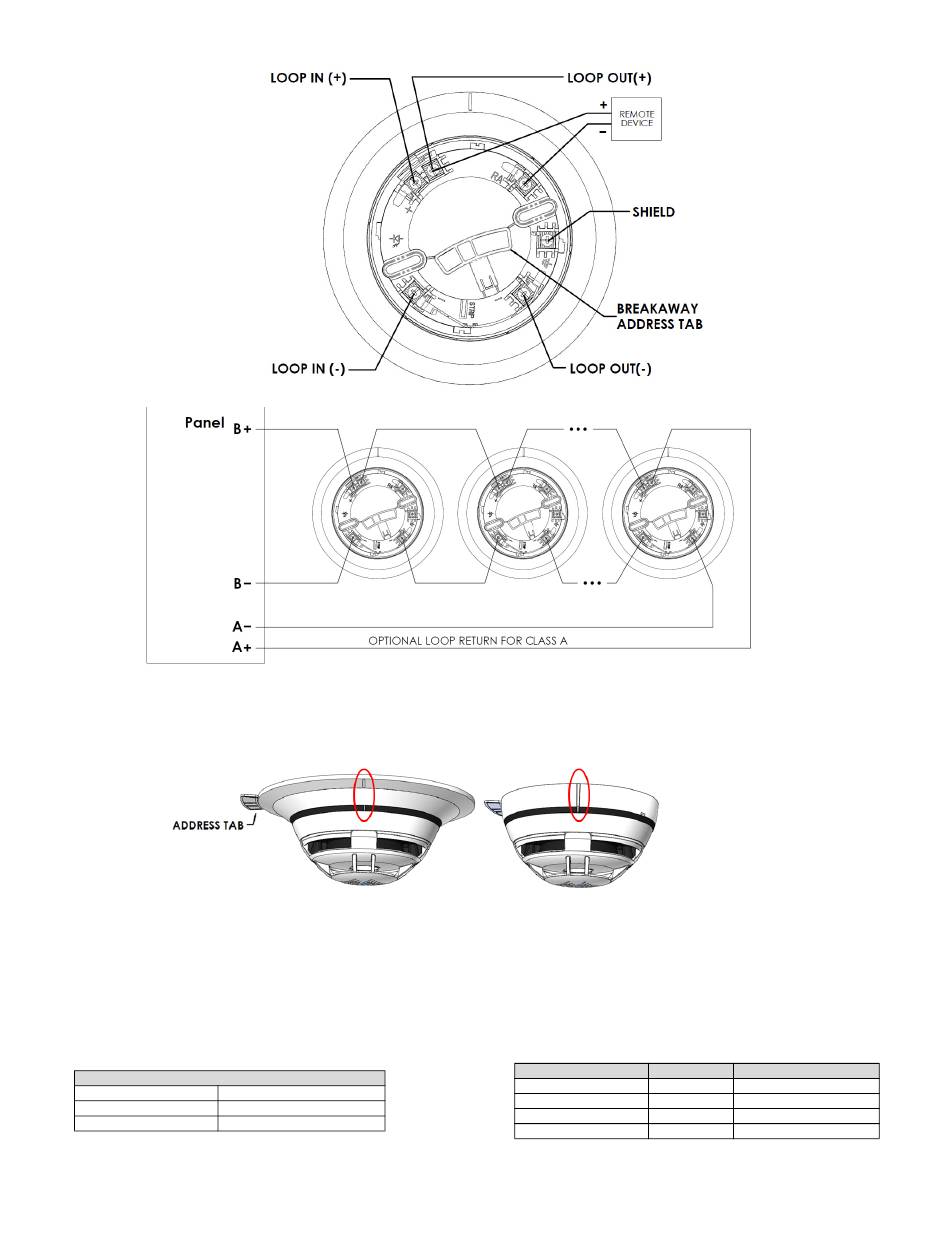

FIGURE 2 DETECTOR WIRING:
FIGURE 3 LOOP WIRING:
FIGURE 4 ALIGNMENT MARKS:
Detector LED Colors
Alarm Red (Steady on)
Air Sampling Green (Flash)
Fault Yellow (Steady on)
LT‐6136 rev 1.1 7/16/19
Sensitivity Level Typical
Level 1 2.0 %/feet
Level 2 2.5 %/feet
Level 3 3.0 %/feet
Level 4 3.5 %/feet
Note
Most sensitive level
Least sensitive level
