Mircom RTI-265 Installation Instructions

In no event shall Mircom be liable for any direct, indirect or consequential damages,
loss of anticipated profits, loss of time or any other losses incurred by the buyer in
connection with the purchase, installation or operation or failure of this product.
Important!
Mircom recommends that the entire system be completely tested on a regular basis.
However, despite frequent testing, and due to but not limited to criminal tampering or
electrical disruption, it is possible for this product to fail to perform as expected.
LT-2030MIR Rev. 1
Canada
25 Interchange Way
Vaughan, ON, L4K 5W3
Tel: (905) 695-3545
Fax: (905) 660-4113
www.mircom.com
USA
60 Industrial Parkway PMB 278
Cheektowaga, NY, 14227
Tel: 1-888-MIRCOM5
Fax: 888-660-4113
INSTALLATION
INSTRUCTIONS
RTI-265 RemoteTrouble Unit
RAM-265 Remote Trouble & Alarm Unit

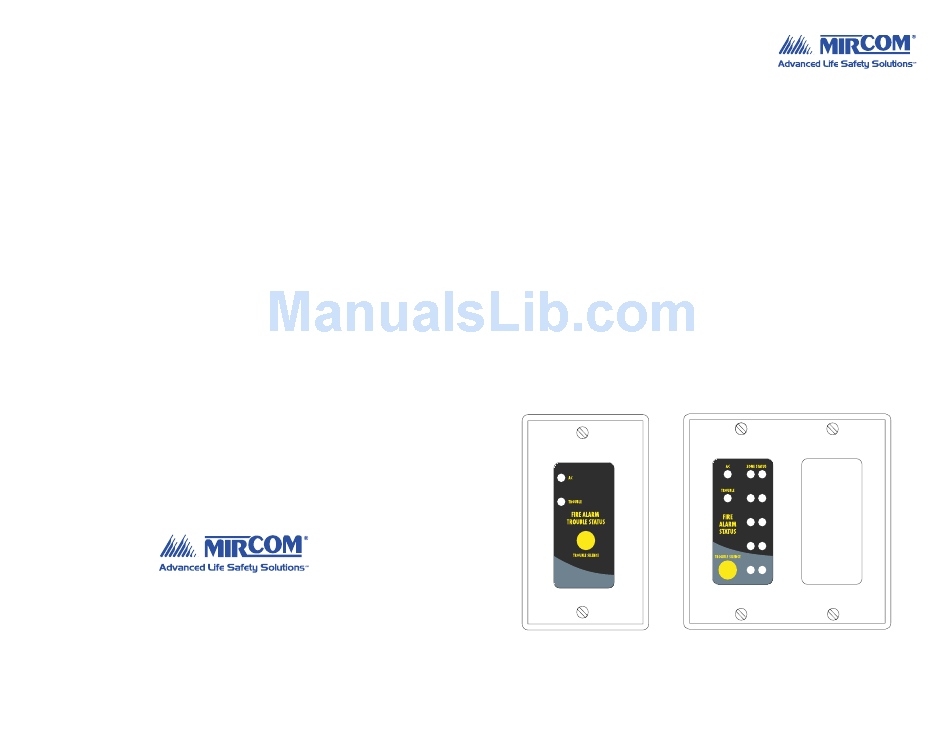

The RTI-265 Remote Trouble Unit provides remote trouble annunciation for the FA-
262/265 fire alarm control panels. The RAM-265 Remote Trouble and Alarm Unit
provides remote trouble annunciation for the FA-262/265 series fire alarm control
panels. A maximum of four RTI-265 and four RAM-265 units can be connected to each
control panel.

SPECIFICATIONS

• Green AC ON indicator
• Yellow Common Trouble
indicator
• Trouble Silence pushbutton
• Lamp Test function
• Communications: DAT & CLK
from control panel
NOTE: This component must be included in the control panel battery
calculation. Refer to the Standby Battery Calculation Sheet included
with the control panel.
RTI-265
• Alarm current: 25 mA max.
• Single gang mounting
• 2 3/4 x 4 1/2" (70 mm x 115 mm)
• Standby current: 15 mA
• Voltage: 24 V
DC
• Up to 8 addressable units
(4 of each type)
• Supervised
• Power: AUX & COM from control
panel
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
RAM-265
• Alarm current: 40 mA max.
• Double gang mounting
• 4 1/2 x 4 1/2" (115 mm x 115 mm)
• Alarm & Supervisiory LED/Zone
