Installation and Assembly - Multi-Channel Speaker
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
NOTE:
For use with FS-3200 C and FS-3200 LR speakers only

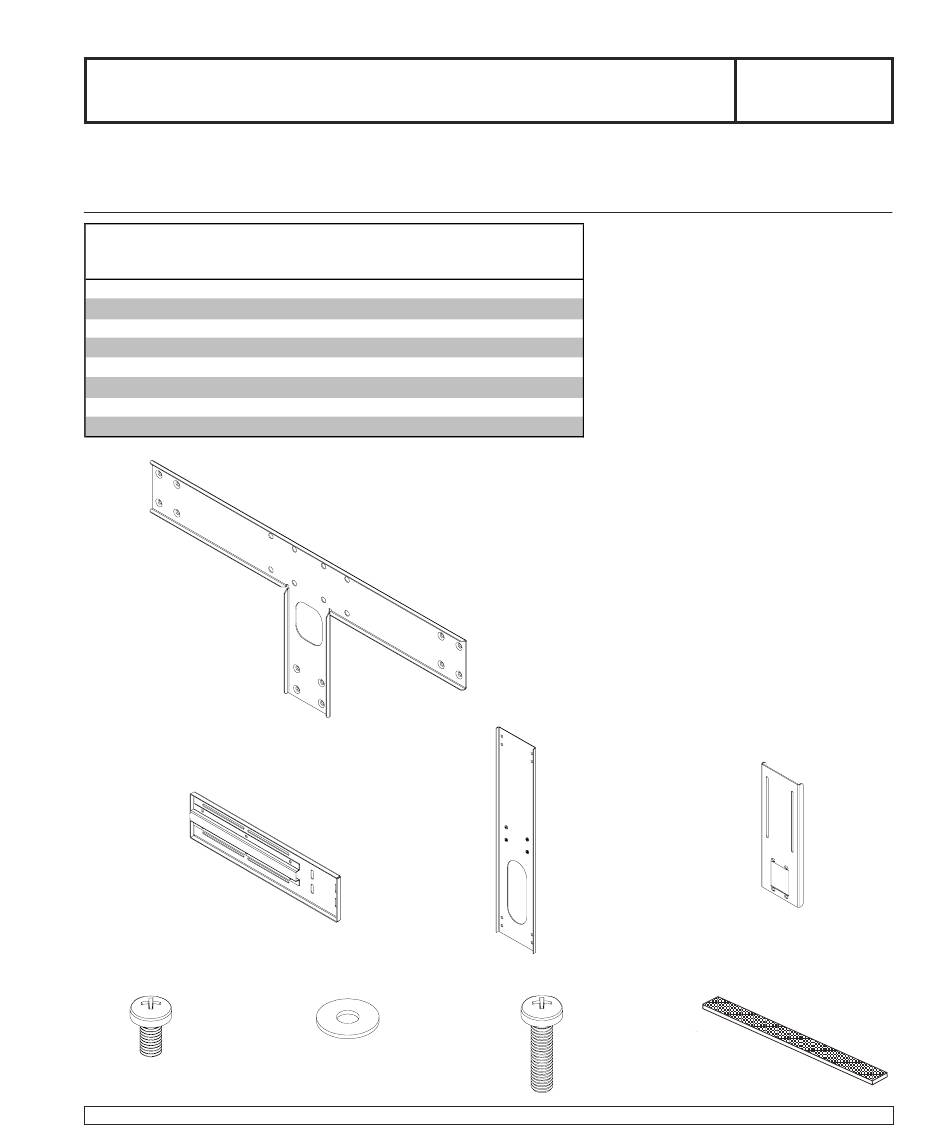

Parts List
Description
A cross support
B side extension
C speaker bracket
D extension bracket bottom
E M5 x 10 mm phillips screw
F #10 SAE flat washer
G M5 x 20 mm phillips screw
H adhesive velcro
Note: some parts may not appear exactly as illustrated.
A
B
E
Accessory
MSA-301
Qty.
Part #
1
087-1051
2
087-1054
3
087-1057
1
087-1050
24
520-1233
12
540-9400
12
510-1208
3
600-1018
C
F
1 of 3
MSA-301S
Part #
087-4051
087-4054
087-4057
087-4050
520-1233
540-9400
510-1208
600-1018
G
ISSUED: 02-09-07 SHEET #: 087-9014-1
Models: MSA-301,
MSA-301S
MAXIMUM LOAD CAPACITY:
50 lb (22.68 kg)
D
H
Advertisement
Table of Contents
Related Manuals for peerless-AV MSA-301
Summary of Contents for peerless-AV MSA-301
- Page 1 Installation and Assembly - Multi-Channel Speaker Models: MSA-301, Accessory MSA-301S IMPORTANT! Read entire instruction sheet before you start installation and assembly. MAXIMUM LOAD CAPACITY: 50 lb (22.68 kg) NOTE: For use with FS-3200 C and FS-3200 LR speakers only Parts List...
- Page 2 Installation to adapter plate Loosen screws on plasma adapter. Then place cross support bracket (A) between plasma adapter and mount. Tighten screws through cross support bracket to plasma adapter securely. Refer to adapter plate instructions for installation of screen. Note: some parts may not appear exactly as illustrated.
- Page 3 Installation of Speakers Position speaker brackets (C) to speakers using correct hole pattern as shown below and attach using twelve M5 x 20mm screws (G). LEFT SPEAKER CENTER SPEAKER RIGHT SPEAKER Attach speaker brackets (C) to side extension brackets (B) and extension bottom bracket (D) using twelve M5 x 10mm screws (E).
