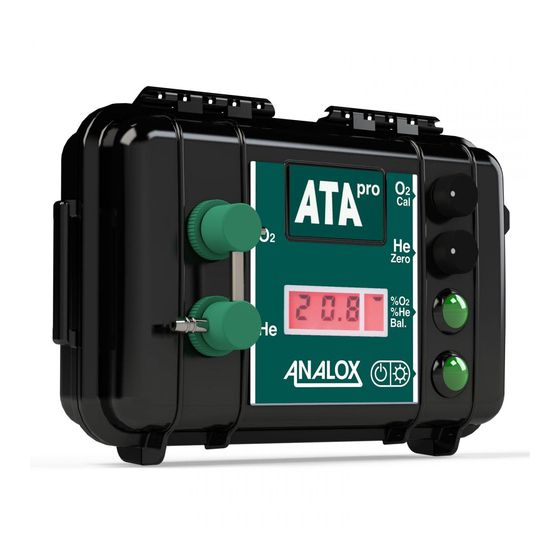

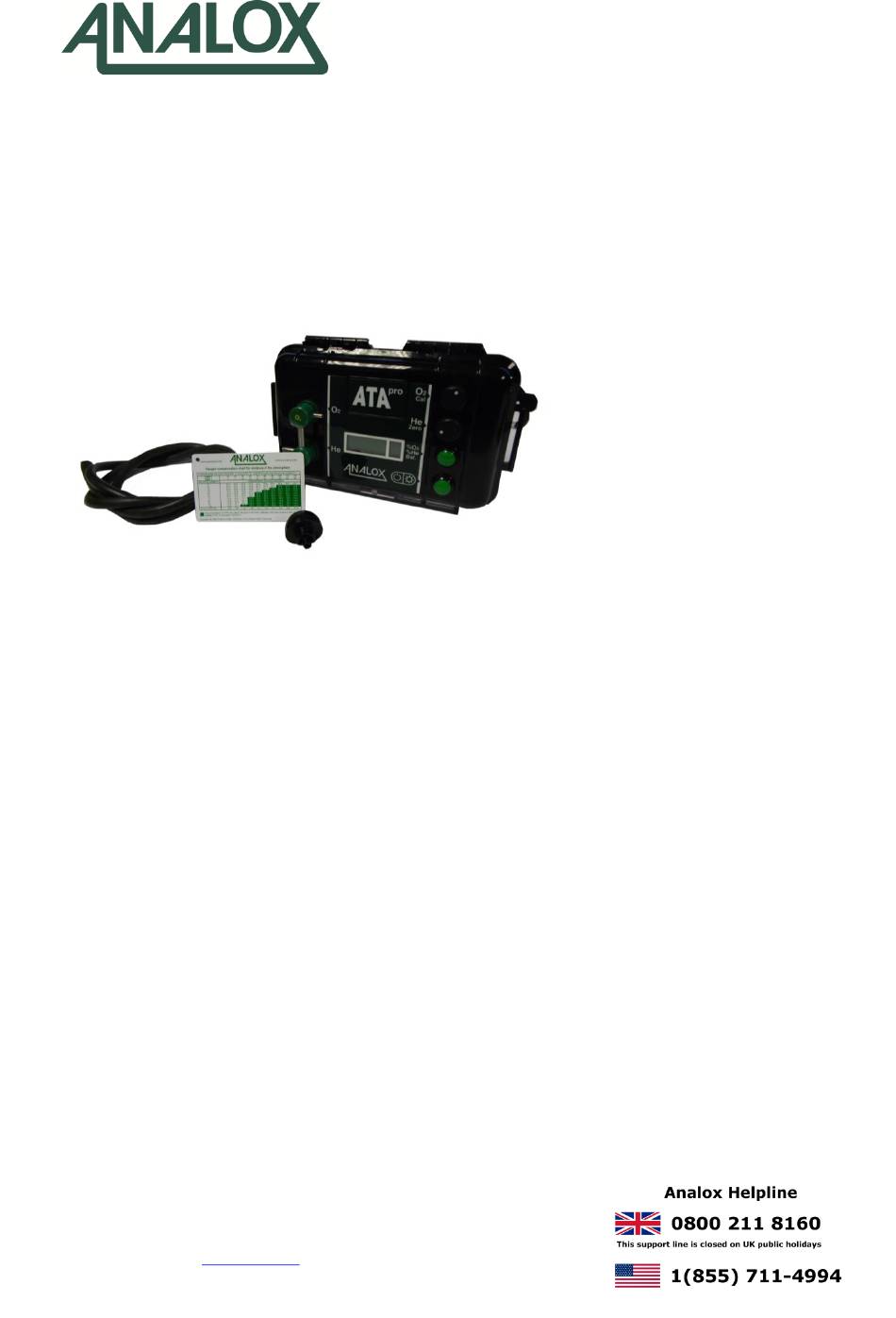

- Page 1 Commercial in Confidence Analox Limited 15 Ellerbeck Court, Stokesley Business Park, North Yorkshire, TS9 5PT, UK UK/RoW T: +44 (0)1642 711400 F: +44 (0)1642 713900 US T: (714) 891-4478 W: www.analox.net E: info@analox.net Copyright © 2017 Analox Ltd. All Rights Reserved.
- Page 3 2017- Update dimensions in specification, 16/05/2017 0051 general tidy up of page breaks, margins etc. 27/10/2016 2016- Update Ata Pro user manual for He sensor 02/11/2016 0081 life 13/01/2014 2013- Updated to suit ATA pro, DIN restrictor 0047 added as kit...
- Page 5 We are delighted to welcome you as a user of the ATA pro The following guide should assist you in using your ATA pro Document ref: HEL-810-12 December 2017 Page 1 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence...
-
Page 7: Table Of Contents
Specification ......................16 Altitude Correction Chart ..................17 Oxygen Compensation Chart ................... 18 Disposal ........................ 19 Declaration of Conformity ..................20 Document ref: HEL-810-12 December 2017 Page 1 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence... -
Page 8: Packaging And Contents Check
ATA Pro Technical Manual Int. Approved 1. Packaging and Contents Check On opening your Ax ATA pro, please check you have the following items: a) ATA pro & Battery b) Flow Adaptor, Tubing & Sample Dome c) O2 Compensation Card... -
Page 9: About The Ata Pro
Power is provided by one AA size battery. The ATA pro will automatically switch off after 15 minutes to ensure battery life is not compromised if the instrument is accidentally turned on. On receipt of the ATA pro all you have to do is fit the battery, refer to section 5.1 Battery Replacement. -
Page 10: Operation
When the analyser is switched on it will display a reading and a marker indicating which gas is being displayed, O2, He or BAL. Do not use the ATA pro before calibration (see section 3.2 Oxygen Sensor Calibration). He Zero... -
Page 11: Oxygen Sensor Calibration
If this is not possible refer to paragraph 3 below or to sections 4.0 Quick Check and 5.0 After Sales Service. calibration in clean air Document ref: HEL-810-12 December 2017 Page 5 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence... - Page 12 The analyser is sensitive to Oxygen partial pressure. Calibration must always be carried out at the same atmospheric pressure as Oxygen measurement. Document ref: HEL-810-12 December 2017 Page 6 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence...
-
Page 13: Helium Sensor Zero Adjust
0.0 3.4 Analysing Your Mix The ATA pro is provided with a flow adapter and tubing which can be connected to the gas Sampling Dome. 1. Ensure the ATA pro has been calibrated as per the instructions in sections 3.2, and 3.3. - Page 14 WARNING Very high flows may pressurise the sensors and inaccurate readings or sensor damage will result. Document ref: HEL-810-12 December 2017 Page 8 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence...
-
Page 15: Accessories
ATA Pro Technical Manual Int. Approved 3.5 Accessories The ATA pro can be supplied with any of the following accessories; a) Storage case; compact water proof, drop proof case ideal for storing your ATA pro, and accessories. Part number: SA2ATACASE b) DIN flow restrictor kit –... -
Page 16: Quick Check
= 20.9% x bar Reading drifts Rapid temperature Do not move analyser change from one temperature to another immediately before use Document ref: HEL-810-12 December 2017 Page 10 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence... -
Page 17: After Sales Service
Refit the battery cover d) Close the lid. e) Ensure the unit is turned off after fitting the battery. Document ref: HEL-810-12 December 2017 Page 11 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence... -
Page 18: Sensor Replacement
Connect sensor to the circuit board and carry out He coarse calibration. He coarse calibration a) Turn the Ax ATA pro on and calibrate the O2 sensor in clean air, as per the instructions in section 3.2 b) Change the display to show the Helium concentration, and expose the He sensor to clean air. -
Page 19: Warranties
To clean the ATA pro use a damp soft cloth. Protect the ATA pro from long periods of direct sunlight and do not subject it to high or low temperature extremes. The O2 sensor in the Ax ATA pro is an electrochemical device and contains a caustic electrolyte. -
Page 20: Safety Information
5.7 Sensor Handling Information ATA pro oxygen sensors are normally supplied in sealed packs. Before the pack is opened check that the sensor has not leaked. The sensors are themselves sealed and do not under normal circumstances present a health hazard however if leakage of the Potassium Hydroxide electrolyte has occurred use rubber gloves and wear chemical splash goggles to handle and clean up. -
Page 21: Warranty Information
ATA Pro Technical Manual Int. Approved 6. Warranty Information We provide the following Warranties for the ATA pro: A 3 year graded Oxygen sensor warranty. A 1 year Helium sensor warranty A 2 year electronics warranty. In both cases the Warranty period runs from the date of our Invoice. -
Page 22: Specification
(7.28 x 5.12 x 2.5”) Certification CE marked IP RATING IP65 If you have any comments or queries about the ATA pro please contact us; UK/RoW Tel: +44 (0)1642 711400 Fax: +44 (0)1642 713900 US Tel: (714) 891-4478 Email UK: analoxast@analox.net... -
Page 23: Altitude Correction Chart
9.61 Pressure will vary depending on altitude, but will not lead to significant error in your readings. Copyright © 2002: Analox Group, 15 Ellerbeck Court, Stokesley Business Park, North Yorkshire, UK. TS9 5PT. All Worldwide Rights Reserved. Document ref: HEL-810-12... -
Page 24: Oxygen Compensation Chart
0.5% O accuracy in NITROX 0 at 100% 11.5 Copyright © 1996-2009: Analox Group, 15 Ellerbeck Court, Stokesley Business Park, North Yorkshire, TS9 5PT UK. All Worldwide Rights Reserved. Document ref: HEL-810-12 December 2017 Page 18 of 27 Copyright ©... -
Page 25: Disposal
According to WEEE regulation this electronic product can not be placed in household waste bins. Please check local regulations for information on the disposal of electronic products in your area. Document ref: HEL-810-12 December 2017 Page 19 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence... -
Page 26: Declaration Of Conformity
ATA Pro Technical Manual Int. Approved 11. Declaration of Conformity Document ref: HEL-810-12 December 2017 Page 20 of 27 Copyright © 2017 Analox Ltd. All Rights Reserved. Commercial in Confidence...
