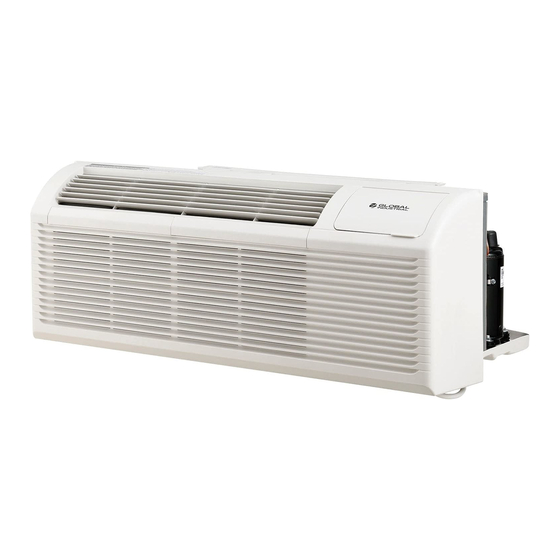

Klimaire PTAC Series Installation & Operation Manual

Packaged terminal air conditioner / heat pump
Hide thumbs Also See for PTAC Series:
Table of Contents

Advertisement

Quick Links

PTAC/PTHP
PACKAGED TERMINAL AIR CONDITIONER / HEAT PUMP
Installation & Operation
Manual
Mark of Superior Quality
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
For more information please visit www.klimaire.com
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTAC Series and is the answer not in the manual?

Questions and answers

Related Manuals for Klimaire PTAC Series

Summary of Contents for Klimaire PTAC Series

  • Page 1 Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. For more information please visit www.klimaire.com...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........5 3. AIR CONDITIONER FEATURES............6 4. CONTROL PANEL OPERATION............7 5. DIP SWITCHES CONFIGURATION............8 6. DIP SWITCHES CONFIGURATION BY PANEL CONTROL.....10 7. WALL THERMOSTAT TERMINAL............11 8. INSTALLATION..................13 9. CARE AND CLEANING..............15 10. TROUBLESHOOTING..............16...
  • Page 3 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
  • Page 5 WARNING Keep firearms away. Do not use the power Do not use the power cord cord close to heating near flammable gas or appliances. combustibles, such as gasoline, benzene, thinner, etc. t may cause fire. t may cause fire and electric t may cause an explosion shock.
  • Page 6 CAUTION Always insert the Do not place obstacles Ensure that the installation filters securely. Clean around air-inlets or bracket of the outdoor filter once every two inside of air-outlet. appliance is not damaged weeks. due to prolonged exposure. t may cause failure of f bracket is damaged, there peration without filters may cause failure.

  • Page 7: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS For your safety WARNING NOTE The power supply cord with Do not store or use gasoline or other flammable vapors this air conditioner contains a current and liquids in the vicinity of this or any other appliance. detection device designed to reduce Avoid fire hazard or electric shock.

  • Page 8: Air Conditioner Features

    Operation of Current Device(optional) The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do the following: 1. Plug in the Air Conditioner. 2. The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a click as the RESET button pops out.

  • Page 9: Control Panel Operation

    CONTROL PANEL OPERATION UP/DOWN BUTTONS ( The control panel keypad will look like the following - Push the UP (or DOWN) button to increase (or Fig.1. For some models with REMOTE SIGNAL decrease) the set temperature of the unit in cooling RECEPTOR, the unit can be controlled by the control or heating mode.The temperature can be set by panel alone or by the remote.

  • Page 10: Dip Switches Configuration

    CONTROL PANEL OPERATION CONTINUED Accessory NOTE:This air conditioner is designed to be operated under condition as follows: Cooling 18-43 C/64-109 F (18-52 C/64-125 F Outdoor temp: for special tropical models) operation THIS UNIT IS CONTROLLED BY WALL MOUNTED THERMOSTAT THIS UNIT IS CONTROLLED BY WALL MOUNTED THERMOSTAT Indoor temp: 17-32 C/62-90 F NOTE:When the unit displays LC (Pads on the...
  • Page 11 DIP SWITCHES CONFIGURATIONS (Optional) Table 1 DIP SWITCHES CONFIGURATIONS No . UP(ON) DOWN(OFF) Remarks Electric Heat and Pump Heat For Heat Pump unit only Electric Heat Only Temperature Display in C Temperature Display in F Wall Thermostat Enable Control Panel Enable Two configurations (S4*S5) UP*UP:61 F~86 F(16 C~30 C);...

  • Page 12: Dip Switches Configuration By Panel Control

    DIP SWITCHES CONFIGURATIONS by PANEL CONTROL (Optional) DIP SWITCHES CONFIGURATIONS by PANEL CONTROL - Turn off the unit. LED display window - Press the up ( ) and down ( ) buttons together High(left) Low(right) for 3 seconds to activate the dip switches configurations by panel control (see Fig.4).

  • Page 13: Wall Thermostat Terminal

    WALL THERMOSTAT TERMINAL (Optional) - Insert the wire connector of the wall t hermostat into IMPORTANT: Only trained, qualified personnel the relevant terminal according to different shapes as should access electrical panel on unit and install shown below. electrical accessories. Please contact your local some types of wall Terminal of electrical contractor, dealer, or distributor for...
  • Page 14 WALL THERMOSTAT TERMINAL (Optional) other Wall Thermostat(MODE B) FRONT DESK CONTROL Terminal of PTAC The controller can handle a switch signal from FC(L) and FC(N) input, called front desk control. Input must be 24VAC. If system doesn't receive a 24VAC signal, it will turn unit off; otherwise, the unit runs in normal control.

  • Page 15: Installation

    INSTALLATION HOW TO INSTALL THE UNIT Dimension of air conditioner CAUTION 1067mm/42inch There are sharp edges that can cause serious cuts. 408mm/16inch When lifting the air conditioner,it is HEAVY.Use 2 people to lift. 606mm/23.9inch - For existing sleeve,you should measure the wall sleeve dimensions.
  • Page 16 INSTALLATION CONTINUED UNIT INSTALLATION (CONTINUED) CAUTION - Rotate the vent control lever to either open or close the vent door.(See Fig.9) Do not put obstacles around air-inlet or inside of air-outlet of the unit, Vent control lever such as window curtain etc. Always insert the filter securely, clean filter once every two weeks as r equired.

  • Page 17: Care And Cleaning

    CARE AND CLEANING - Removing Air Filter FRONT PANEL AND CASE - Turn unit off and disconnect power supply.To clean, 2 Air filters use water and a mild detergent.DO NOT use bleach and abrasivers.Some commercial cleaners may Pull up damage the plastic parts. OUTDOOR COIL - Coil on outdoor side of unit should be checked regularly.Unit will need to be removed to inspect...

  • Page 18: Troubleshooting

    TROUBLESHOOTING POSSIBLE CAUSES SOLUTONS UNIT DOES NOT START Check that plug is plugged securely in wall receptacle. Unit may have become unplugged Note:Plug has a test/reset button on it.Make sure that the plug has Fuse may have blown not tripped. Circuit breaker may have been tripped Replace the fuse.See Note 1.
  • Page 19 TROUBLESHOOTING POSSIBLE CAUSES SOLUTONS ICE OR FROST FORMS ON INDOOR When outdoor temperature is approximately 55OF or below,frost COIL may form on the indoor coil when unit is in Cooling mode.Switch Low outdoor temperature unit to FAN operation until ice or frost melts. Dirty filters Remove and clean filters.
  • Page 20 The Klimaire logo is a registered Trademark of Klimaire Products inc. Copyright 2020 Klimaire Products Inc. 2190 NW 89 Place, Doral, FL 33172 - USA The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.

This manual is also suitable for:

Pthp series
