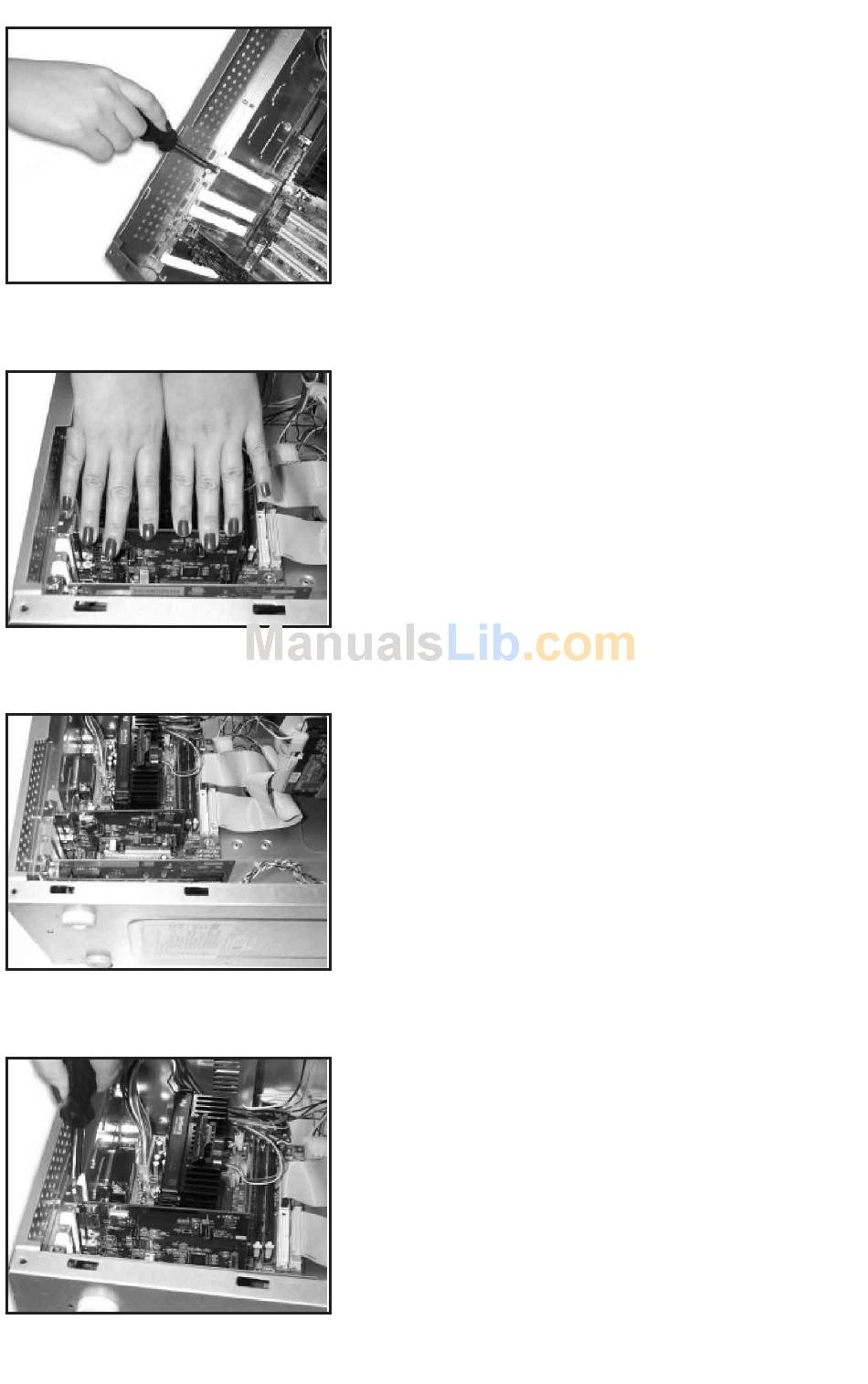

Step 7
If necessary, remove the knockout on
the back of your computer which cor-
responds to the PCI slot you have
confirmed as your selection. If there is
a screw, place it in a safe place as you
will be using it to attach the PYRO 1394
PCI Card.
Step 8
Push the PYRO 1394 PCI Card firmly
into the PCI slot. Apply pressure as
needed (but do not force the card) until
the edge connector is completely in the
slot.
Step 9
Once the PYRO 1394 PCI Card is fully
seated, the gold edge connectors are
completely in the slot.
Step 10
Mount the PYRO 1394 PCI Card in
place with a screw. Make sure the
screw is firmly tightened so the PYRO
1394 PCI Card does not slide out of its
seated position.
