Summary of Contents for ADS Technologies PTV-305

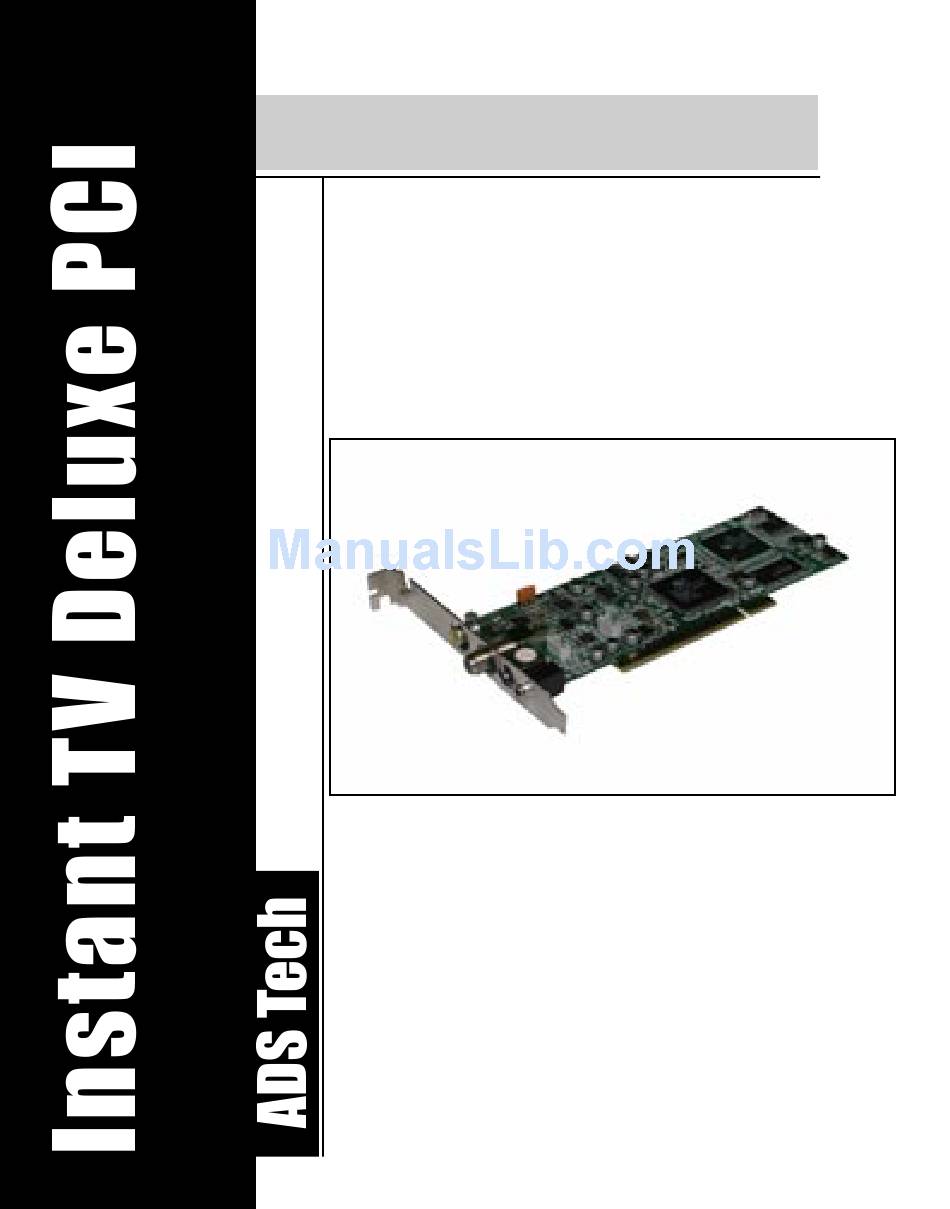

- Page 1 Instant TV Deluxe PCI English Watch and Record TV shows on CD or DVD Hardware User's Guide website: www.adstech.com Support: www.adstech.com/support/support.asp...
-
Page 3: Table Of Contents
Corporation. IBM is a registered trademark of the International Business Machines, Inc. ADS is a registered trademark of ADS Technologies Inc. ADS Technologies (ADS) makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. The information furnished within this written document is for information purposes only and is subject to change without notice. -
Page 4: Quick Installation Guide
Quick Installation Guide: This Quick Installation Guide should be used as a reference guide only. It is highly recommended that you read the complete Instant TV Deluxe Manual before using this product to help ensure you get the most of your Instant TV Deluxe. Follow these instructions when using the Instant TV Deluxe for the first time. -
Page 5: Hardware Installation
Step by Step Hardware Installation: 1. Turn your computer off. TURN OFF 2. Take the case off of your computer to have access to the PCI slot of your motherboard. 3. Take the Instant TV Deluxe PCI from the packaging. 4. -
Page 6: Driver Installation
Step by Step Instant TV Deluxe (PCI) Driver Installation: Step 1: After you have intalled the Instant TV Deluxe PCI into an open PCI slot, turn on your computer. Step 2: Place the provided Instant TV Deluxe CD into your CD ROM drive and wait for the autorun screen to come up. - Page 7 IR Blaster The IR Blaster is an infra-red transmitter and receiver. As an IR Receiver the IR Blaster acts as a receiver for the Instant TV Deluxe remote control. As an IR Blaster the device gives you the power to control external TV receiver devices. The IR Blaster is a very powerful addition to a TV Capture card.
-
Page 8: Ir Blaster Installation
IR Blaster and the Instant TV Deluxe Remote Once you have programmed the IR Blaster to send TV channel changing codes to your set top box, you can use the Instant TV Remote in conjunction with the IR Blaster to control your set top box. Point the Instant TV Deluxe remote at the IR Blaster –... - Page 9 Step 3: You are now finished with the hardware driver install of the ADS IR Blaster, click “Finish” to finalize the installation. This USB device creates a wireless, infrared connection between your cable box or satellite receiver and the PC running Beyond TV. The USB IR Blaster,”...
- Page 10 Step 2: You will now see the Instant FM Setup screen, follow the installation instructions and hit “Next”. Step 3: Choose the destination where you want to install the software. To proceed with the installation click “Next”. Step 4: The setup will now add program icons to the Program Folder, click “Next” to continue. Step 5: You are now finished with the Instant FM installation, click “Finish”...
- Page 11 ADS Instant FM Functions Adjust Frequency up and down Recall last channel Memo Channel - / + Allows you to adjust the Frequency up and down Skip back and forth from channel to channel 0-9 Preset channel buttons To toggle between the current channel and the previous channel Press the Enter button after inputting a channel Adjust volume up and down Allow you to name your stations that are set on each channel...
- Page 12 To mute/unmute the volume To start recording your radio tunes To bring up the recorded files you want to playback To stop the recording or playback of your recorded files Rewind the playback Fast Forward the playback To program your favorite stations to each channel Step 1: Click on the “Setup”...
-
Page 13: Service And Warranty
CES will ADS Technologies, Inc. be liable for consequential damages, including but not limited to any lost savings, lost profits, or any other dama-ges, caused by the use of any ADS Technologies, Inc. product or inability to use the product, even if the dealer or ADS Technologies, Inc. has been advised of such liability or other claims. -
Page 14: Technical Support
If you have any problems or questions on this product, please call: Technical Support - 562.926.4338 North America Support Hours: Mon-Fri: 8am - 5pm, PST Support: www.adstech.com/support/support.asp www.adstech.com European Technical Support: +353.61.702042 North America Support Hours Phone: 562-926-4338 M-F: 8:00 am - 5:00 pm, PST www.adstech.com Support: www.adstech.com/support/support.asp Southern Europe Office...
