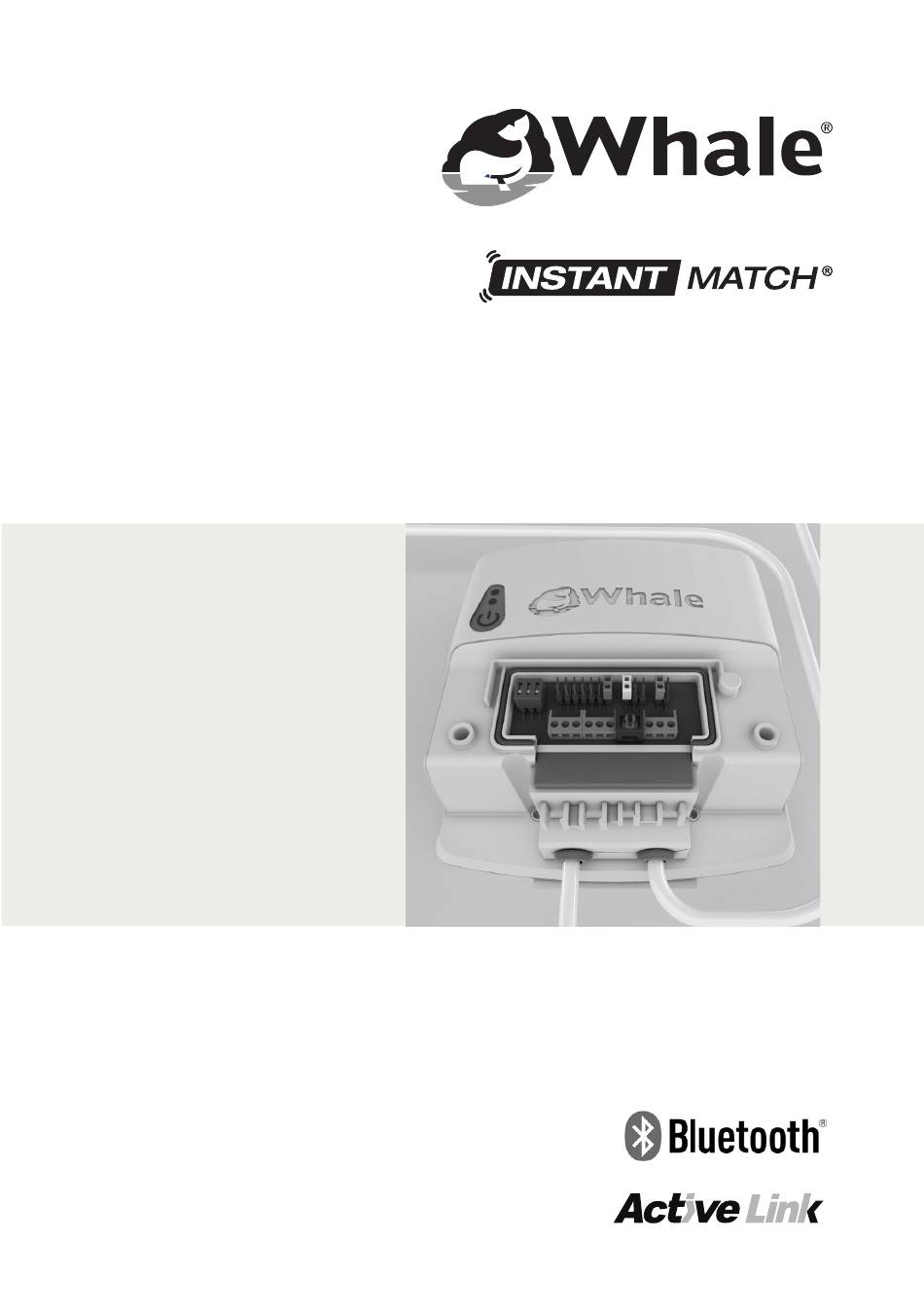

- Page 1 SDS236T Instant Match Transformer Quick Connect Guide WITH...
-
Page 2: Bluetooth Wireless Technology
• The electrical wiring must conform to EU wiring regulations BS7671:2008 Part 7 (17th Edition). ® ® • The Bluetooth function of the Whale Instant Match transformer will only work with the Mira Advance Flex Extra (J09N) shower. ® ®... - Page 3 2. Transformer set up • Switch the mains electric supply to the transformer ON. The light on the transformer will now flash red to indicate ® that a Bluetooth wireless technology connection has not yet been established. • Press and HOLD the blue test button on the transformer until the light flashes red and green to indicate that the transformer is now in pairing mode.
- Page 4 • The status light on the shower will then flash white to indicate that the transformer has successfully been paired to the shower. • The Whale transformer will flash green only to indicate that it is paired to the Mira shower.
- Page 5 PCB board may require the Bluetooth wireless technology connection between the ® shower and Whale Instant Match transformer to be terminated and paired again once the work has been completed. To unpair the transformer from the shower, please follow these steps.
- Page 6 Plumbing of the Waste Pipe Shower Hardwired Connections ® Triton Safeguard + Omnicare Design, Omnicare Style, T150Z+ Wired Connections to the Whale Instant ® Match Transformer Transformer Whale Transformer Settings Blue Jumper - Sensor Position 4 Grey Jumper - Over run 10 Seconds Red Jumper - Pipe inlet 15mm ®...
-
Page 7: Terminal Block
® Mira Advance Flex Extra 1.1785.005 (J09N) ® Wired Connections to the WHALE INSTANT MATCH Transformer Flex Extra J09N Ensure all LK settings are set to ‘OFF’ for hardwired connection BEAB 43 DEG C 45 DEG C RESERVED 6L/MIN PUMP LK3... - Page 8 Plumbing of the Waste Pipe Sika ® Sensor Connection Please see below for jumper and wiring connections. ® Whale Transformer Settings ® Sika Sensor Please ensure that water flow Blue Jumper - Sensor Position 2 through the sensor is in the Grey Jumper - Over run 10 Seconds direction of the arrow.
- Page 9 ® When connecting to the Grundfos ® Venturi sensor it is important to connect an earth wire from the Venturi sensor to the signal ® earth connection on Whale transformer (shown below). ® Whale Transformer Settings Venturi sensor Please ensure that water flow...
- Page 10 Product literature is guaranteed by the Company and may be subject to change at its sole discretion. Please note that by contacting Whale Support you will be indicating your consent to receiving product updates, recall information, help guides and appropriate marketing messages from us via post, email or telephone unless you indicated an objection to receiving such messages.
- Page 12 0845 0694 253 drainagesupport@whalepumps.com www.whalepumps.com Whale, 2 Enterprise Road, Bangor, Co. Down, @Whalecare BT19 7TA, N.Ireland Ref. 182.606_v1_1217...
