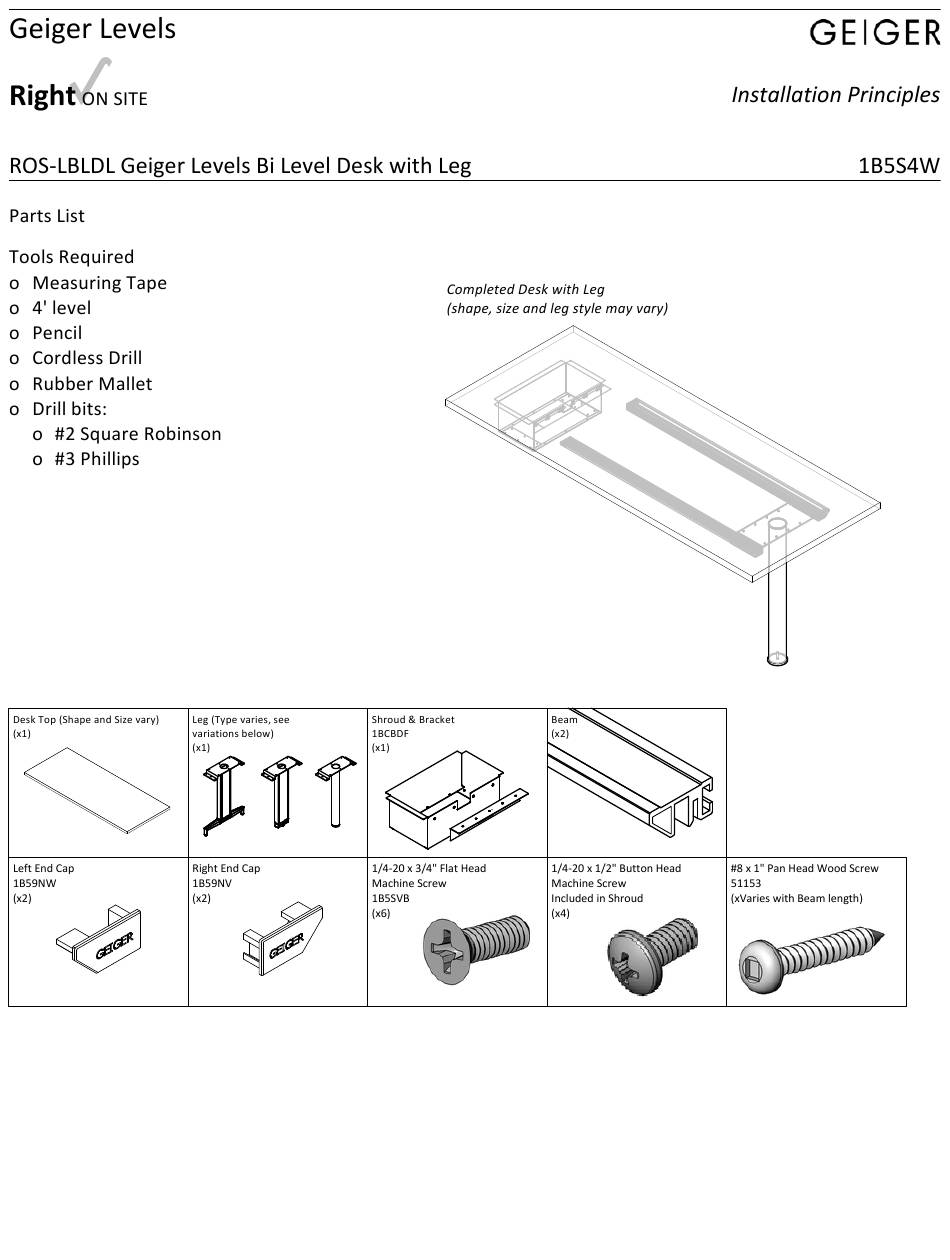

GEIGER ROS-LBLDL Installation Principles

Bi level desk with leg
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for GEIGER ROS-LBLDL

Summary of Contents for GEIGER ROS-LBLDL

  • Page 8 Geiger Levels Right Installation Principles ON SITE ROS-LVLAP 1B5TFT Geiger Levels Access Panel Parts List Tools Required o Cordless drill o Drill bits: o #2 Robertson or #2 Philips Panel With Attachment Brackets #8 x 1" Pan Head Wood Safety Clip...
  • Page 9 Installation Principles ON SITE ROS-LVLAP 1B5TFT Geiger Levels Access Panel 1. Install Access Panel Locate access panel brackets over magnets allowing 2" of clearance between the top of the bracket and the top of the panel. Locate panel relative to furniture as shown below.
  • Page 10 Geiger Levels Right Installation Principles ON SITE ROS-LVLAP 1B5TFT Geiger Levels Access Panel 2. Install Safety Clips Slide safety clips (1BJ2K0) over panel and then over brackets...
  • Page 11 Geiger Levels Right Installation Principles ON SITE ROS-LVBRU 1B5VJ2 Geiger Levels Bi Level Rear Unit Parts List Tools Required o Measuring Tape Completed Bi-Level Rear Unit o 4' level (Storage may vary) o Pencil o Cordless Drill o Rubber Mallet...
  • Page 12 Installation Principles ON SITE ROS-LVBRU 1B5VJ2 Geiger Levels Bi Level Rear Unit Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Credenza Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 13 ON SITE ROS-LVBRU 1B5VJ2 Geiger Levels Bi Level Rear Unit Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind credenza, install these (but only after overheads are installed).
  • Page 14 Installation Principles ON SITE ROS-LVBRU 1B5VJ2 Geiger Levels Bi Level Rear Unit Attach Credenza to Shroud Carefully flip assembled credenza top upright. Set pedestal(s) at end of credenza roughly in position to support end of credenza top. Lift credenza top over shroud and then down so that shroud bracket is within shroud. See Detail C.
  • Page 15 Geiger Levels Right Installation Principles ON SITE ROS-LVBDP 1B5VJ3 Geiger Levels Bi Level Desk with Pedestal Parts List Tools Required o Measuring Tape Completed Desk with Pedestal o 4' level (desk shape may vary) o Pencil o Cordless Drill o Cordless Right Angle Drill...
  • Page 16 Installation Principles ON SITE ROS-LVBDP 1B5VJ3 Geiger Levels Bi Level Desk with Pedestal Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Desk Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 17 ON SITE ROS-LVBDP 1B5VJ3 Geiger Levels Bi Level Desk with Pedestal Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind desk, install these (but only after overheads are installed).
  • Page 18 Installation Principles ON SITE ROS-LVBDP 1B5VJ3 Geiger Levels Bi Level Desk with Pedestal Attach Desk to Shroud Carefully flip assembled desk upright. Lift desk over shroud and then down so that shroud bracket is within shroud. See Detail B. Use Pedestal to support end of desk while installing desktop to shroud.
  • Page 19 Installation Principles ON SITE ROS-LVBDP 1B5VJ3 Geiger Levels Bi Level Desk with Pedestal Attach Beam Cover Insert Beam Cover flanges into beams and gently tap into beams until they are flush . Attach Beam To Desk Top Align beam flush to pedestal and recessed as shown in Detail C.
  • Page 20 Geiger Levels Right Installation Principles ON SITE ROS-LVBDE 1B5VJ4 Geiger Levels Bi Level Desk with End Panel Parts List Tools Required o Measuring Tape Completed Desk with End Panel o 4' level o Pencil o Cordless Drill o Rubber Mallet...
  • Page 21 ON SITE ROS-LVBDE 1B5VJ4 Geiger Levels Bi Level Desk with End Panel Attach End Bracket To End Panel Using pilot holes on inside of end panel as a guide, fasten end bracket to panel using (6x) #8 x 1" Flat Head Wood Screw (50162).
  • Page 22 ON SITE ROS-LVBDE 1B5VJ4 Geiger Levels Bi Level Desk with End Panel Attach Beam Covers Insert Beam Cover flanges into beam at open ends and gently tap into beams until they are flush . Attach End Panel Assembly To Top Align End Panel to edge of desk top and center end panel side to side with desk top.
  • Page 23 Installation Principles ON SITE ROS-LVBDE 1B5VJ4 Geiger Levels Bi Level Desk with End Panel Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Desk Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 24 ON SITE ROS-LVBDE 1B5VJ4 Geiger Levels Bi Level Desk with End Panel Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind desk, install these (but only after overheads are installed).
  • Page 25 Installation Principles ON SITE ROS-LVBDE 1B5VJ4 Geiger Levels Bi Level Desk with End Panel Attach Desk to Shroud Carefully flip assembled desk upright. Lift desk over shroud and then down so that shroud bracket is within shroud. See Detail E.
  • Page 26 Geiger Levels Right Installation Principles ON SITE ROS-LVDKL 1B5VJ5 Geiger Levels Desk with Leg and L Panel Parts List Tools Required o Measuring Tape Completed Desk with Leg (shape, size and leg style may vary) o Pencil o Cordless drill...
  • Page 27 ON SITE ROS-LVDKL 1B5VJ5 Geiger Levels Desk with Leg and L Panel Assemble Leg and Beams Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Attach beams to Leg top plate (Detail B).

  • Page 28: Finished Assembly

    Installation Principles ON SITE ROS-LVDKL 1B5VJ5 Geiger Levels Desk with Leg and L Panel Locate Leg/Beam Assembly on Desk Top Lay desk top upside down on clean, protected surface. Measure and locate Leg/Beam assembly relative to desk top. See below.
  • Page 29 Installation Principles ON SITE ROS-LVDKL 1B5VJ5 Geiger Levels Desk with Leg and L Panel Attach L Panel Join L panels by sliding panel with connectors on exterior over and onto panel with connectors embedded inside mortise. Carefully flip desktop/leg assembly over and place over L panel assembly.
  • Page 30 Installation Principles ON SITE ROS-LVDKL 1B5VJ5 Geiger Levels Desk with Leg and L Panel Attach Cover panels Does not apply to Round column legs Peel back sticker on pre-applied velcro strips to expose glue face of velcro. Align bottom of insert panels with seam as shown below. Press fit insert panels onto velcro strips to secure panels.
  • Page 31 Geiger Levels Right Installation Principles ON SITE ROS-LVWM 1B5VJ6 Geiger Levels Wall Mount Overhead Parts List Tools Required o Measuring Tape Actual style may vary o 4' level o Pencil o Cordless Drill o Drill bits: o #2 Robertson o #2 Phillips...
  • Page 32 Installation Principles ON SITE ROS-LVWM 1B5VJ6 Geiger Levels Wall Mount Overhead Locate Hanging Cleat The wall mounting cleat ships attached to the back of the overhead. Using a #2 Robertson bit screwdriver, remove the cleat from the cabinet. Starting from the highest point of the floor, measure up to locate the hanging cleat (Detail A).
  • Page 33 Installation Principles ON SITE ROS-LVWM 1B5VJ6 Geiger Levels Wall Mount Overhead 3. Attach Beam Caps If a task light has been specified, install task light now while overhead cabinet is not yet attached to wall. See separate task light installation instructions.
  • Page 34 Geiger Shelf Right Installation Principles ON SITE ROS-LVMP Geiger Levels Modesty Panel 1B5VJ7 Note: Details apply, however the actual configuration of your product may vary from what is depicted here. Parts List Tools Required o Cordless drill o Drill bits:...
  • Page 35 Geiger Shelf Right Installation Principles ON SITE ROS-LVMP Geiger Levels Modesty Panel 1B5VJ7 Note: Details apply, however the actual configuration of your product may vary from what is depicted here. Beam Attached Application (see next page for worksurface attached application) 1A.
  • Page 36 Geiger Shelf Right Installation Principles ON SITE ROS-LVMP Geiger Levels Modesty Panel 1B5VJ7 Note: Details apply, however the actual configuration of your product may vary from what is depicted here. Worksurface Attached Application 1B. Attach Brackets Using pilot holes, fasten brackets securely using #8 x 3/4" wood screws (56137).
  • Page 37 Geiger Levels Right Installation Principles ON SITE ROS-LVROT 1B5VJ8 Geiger Levels Table Desk Parts List Tools Required o Measuring Tape Completed Table Desk o 4' level (shape may vary) o Rubber Mallet o Cordless Drill o Drill bits: o #2 Robertson...
  • Page 38 ON SITE ROS-LVROT 1B5VJ8 Geiger Levels Table Desk Assemble Leg and Beams Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Attach beams to Leg top plate using (6x) 1/4-20 x 3/4" machine screws (1B5SVB), (Detail B). See Detail C to determine leg offset.
  • Page 39 Installation Principles ON SITE ROS-LVROT 1B5VJ8 Geiger Levels Table Desk Attach Beam and Legs to Top Lay desk top upside down on clean, protected surface. Center leg and beam assembly on underside of table top. Fasten leg top plates to table top using (20x) #8 x 1" pan head wood screws (51153).
  • Page 40 ON SITE ROS-LVROT 1B5VJ8 Geiger Levels Table Desk Attach Cover panels Peel back sticker on pre-applied velcro strips to expose glue face of velcro. Align bottom of insert panels with seam as shown below. Press fit insert panels onto velcro strips to secure panels.
  • Page 41 Geiger Levels Right Installation Principles ON SITE ROS-LRDL 1B5VJ9 Geiger Levels Runoff Desk with Leg Parts List Tools Required o Measuring Tape Completed Desk with Leg (shape, size and leg style may vary) o Pencil o Cordless drill o Rubber Mallet...
  • Page 42 ON SITE ROS-LRDL 1B5VJ9 Geiger Levels Runoff Desk with Leg Assemble Leg and Beams Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Attach beams to Leg top plate (Detail B).

  • Page 43: Finished Assembly

    Installation Principles ON SITE ROS-LRDL 1B5VJ9 Geiger Levels Runoff Desk with Leg Locate Leg/Beam Assembly on Desk Top Lay desk top upside down on clean, protected surface. Measure and locate Leg/Beam assembly relative to desk top. See below. Attach Leg Top Plate to desk top using #8 x 1" pan head wood screws. Detail C Attach beams to desk top through pre-drilled holes in beams using #8 x 1"...
  • Page 44 ON SITE ROS-LRDL 1B5VJ9 Geiger Levels Runoff Desk with Leg Attach to Adjoining Worksurface Locate position of runoff desk relative to adjoining worksurface. Locate flat brackets (10188) so that they are towards the edges of the runoff desk, but not exposed.
  • Page 45 Installation Principles ON SITE ROS-LRDL 1B5VJ9 Geiger Levels Runoff Desk with Leg Attach Cover panels Does not apply to Round column legs Peel back sticker on pre-applied velcro strips to expose glue face of velcro. Align bottom of insert panels with seam as shown below. Press fit insert panels onto velcro strips to secure panels.
  • Page 46 Geiger Levels Right Installation Principles ON SITE ROS-LVRDE 1B5VJB Geiger Levels Runoff Desk with End Panel Parts List Tools Required o Measuring Tape Completed Desk with End Panel o Pencil o Cordless drill o Rubber Mallet o Drill bits: o #2 Robertson...
  • Page 47 ON SITE ROS-LVRDE 1B5VJB Geiger Levels Runoff Desk with End Panel Attach End Bracket To End Panel Using pilot holes on inside of end panel as a guide, fasten end bracket to panel using (6x) #8 x 1" Flat Head Wood Screw (50162).
  • Page 48 Installation Principles ON SITE ROS-LVRDE 1B5VJB Geiger Levels Runoff Desk with End Panel Attach Beam Covers Insert Beam Cover flanges into beam at open ends and gently tap into beams until they are flush . Attach End Panel Assembly To Top Align End Panel to edge of desk top and center end panel side to side with desk top.
  • Page 49 ON SITE ROS-LVRDE 1B5VJB Geiger Levels Runoff Desk with End Panel Attach to Adjoining Worksurface Locate position of runoff desk relative to adjoining worksurface. Locate flat brackets (10188) so that they are towards the edges of the runoff desk, but not exposed.
  • Page 50 Geiger Levels Right Installation Principles ON SITE ROS-LVRDP 1B5VJC Geiger Levels Runoff Desk with Pedestal Parts List Tools Required o Measuring Tape Completed Desk with End Panel o Pencil o Cordless drill o Rubber Mallet o Drill bits: o #2 Robertson...
  • Page 51 ON SITE ROS-LVRDP 1B5VJC Geiger Levels Runoff Desk with Pedestal Attach to Adjoining Worksurface Locate position of runoff desk relative to adjoining worksurface. Locate flat brackets (10188) so that they are towards the edges of the runoff desk, but not exposed.
  • Page 52 Installation Principles ON SITE ROS-LVRDP 1B5VJC Geiger Levels Runoff Desk with Pedestal Attach Pedestal Remove drawers for access to pedestal interior. Position pedestal so that edge of pedestal aligns with edge of desk top and front edge of pedestal aligns with desk edge profile as shown below.
  • Page 53 Installation Principles ON SITE ROS-LVRDP 1B5VJC Geiger Levels Runoff Desk with Pedestal Attach Beam Covers Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Detail A Attach Beam to Desktop Attach beams to desk top through pre-drilled holes in beams using #8 x 1"...
  • Page 54 Geiger Levels Right Installation Principles ON SITE ROS-LVSR 1B5VJD Geiger Levels Square or Round Table Parts List Tools Required o Cordless drill o Drill bits: o #3 Phillips o #2 Robertson Top, Square or Round Base Beam (x1) (x1) (x2)
  • Page 55 Installation Principles ON SITE ROS-LVSR 1B5VJD Geiger Levels Square or Round Table 1. Assemble Beams Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Detail A 2. Attach Beams to Table Base Attach beams to Leg top plate (Detail B).
  • Page 56 Installation Principles ON SITE ROS-LVSR 1B5VJD Geiger Levels Square or Round Table 3. Attach Base with Beams to Top Lay desk top upside down on clean, protected surface. Center base assembly under top. Attach top plate to table top using #8 x 1" pan head wood screws.
  • Page 57 Geiger Levels Right Installation Principles ON SITE ROS-LVTB 1B5VJF Geiger Levels Tackboard Parts List Tools Required o Cordless Drill Completed Tackboard o Mallet (Shown from back) o Drill bits: o #2 Robertson o #2 Phillips Tackboard Upper Clip Lower Panel Clip Lower Wall Clip #8 x 1"...
  • Page 58 Installation Principles ON SITE ROS-LVTB 1B5VJF Geiger Levels Tackboard Attach Clips to Tackboard Note: (Only Applies to Wall Mount tackboards, For Upper Storage Unit, insert lower panel clips in tackboard as shown below and then proceed to Step 4. Upper clips and Lower Wall clips come pre-attached to back panel of Hutch).
  • Page 59 Installation Principles ON SITE ROS-LVTB 1B5VJF Geiger Levels Tackboard Attach Clips to Wall Using perforations in the wall as a guide, fasten upper clips and lower wall clips to wall using #8 x 1" flat head screws. Upper Clips (1B4Y4H)
  • Page 60 Geiger Levels Right Installation Principles ON SITE ROS-LVUS 1B5VJJ Geiger Levels Upper Storage Parts List Tools Required o Cordless drill o Drill bits: o #2 Robertson or o #2 Phillips Upper Storage Unit Stabilizer Bracket Foam Strip with 1 3/4" Titus Screw #8 x 1 1/2"...
  • Page 61 ON SITE ROS-LVUS 1B5VJJ Geiger Levels Upper Storage 1. Attach Closed Cell Foam Cut two strips of the closed cell foam to the width of the end panel. Peel off the paper backing, exposing the adhesive side and attach to the bottom edge of the end panels.
  • Page 62 Installation Principles ON SITE ROS-LVUS 1B5VJJ Geiger Levels Upper Storage 3. Place Upper Storage Place upper storage above worksurface in its final position. Attach upper storage to stabilizer brackets using (8x) #8 x 1 1/2" flat head wood screws (50165).
  • Page 63 Geiger Levels Right Installation Principles ON SITE ROS-LVCM 1B5VJK Geiger Levels Cable Manager Parts List Tools Required Completed Cable manager. o Cordless drill Mounts to underside of lowboy o Drill bits: credenza tops, below grommet o #2 Robertson or hole...
  • Page 64 Installation Principles ON SITE ROS-LVCM 1B5VJK Geiger Levels Cable Manager Attach Cable Manager Align cable manager with the lowboy credenza top grommet hole. Cable manager should be directed towards electrical source when used with an equipment pedestal, but should be installed directed left or right when used over any other lowboy storage unit.
  • Page 65 Geiger Levels Right Installation Principles ON SITE ROS-LVWP 1B5YL8 Geiger Levels Wall Mount Project Shelf Overhead Parts List Tools Required o Measuring Tape Actual style may vary o 4' level o Pencil o Cordless Drill o Drill bits: o #2 Robertson...
  • Page 66 Installation Principles ON SITE ROS-LVWP 1B5YL8 Geiger Levels Wall Mount Project Shelf Overhead Locate Hanging Cleat The wall mounting cleat ships attached to the back of the overhead. Using a #2 Robertson bit screwdriver, remove the cleat from the cabinet.
  • Page 67 ON SITE ROS-LVWP 1B5YL8 Geiger Levels Wall Mount Project Shelf Overhead 2. Drill the Hanging Cleat Drill the hanging cleat (wall attached portion) for the mounting hardware i.e., screws, toggle bolts, etc. The first screws and/or toggles should be started 2" down and 2" over from the top corner of the cleat on both sides.
  • Page 68 Geiger Levels Right Installation Principles ON SITE ROS-LVLG 1B6SZ5 Geiger Levels Leg Parts List Tools Required Completed Desk with Leg o Measuring Tape (shape, size and leg style may vary) o 4' level (Shown with shroud) o Pencil o Cordless Drill...

  • Page 69: Installation Principles

    ON SITE ROS-LVLG 1B6SZ5 Geiger Levels Leg Assemble Leg and Beams Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Attach beams to Leg top plate using (6x) 1/4-20 x 3/4" machine screws (1B5SVB), (Detail B).
  • Page 70 Installation Principles ON SITE ROS-LVLG 1B6SZ5 Geiger Levels Leg Locate Leg/Beam Assembly on Desk Top Lay desk top upside down on clean, protected surface. Measure and locate Leg/Beam assembly relative to desk top. See below. Attach Leg Top Plate to desk top using (10x) #8 x 1" pan head wood screws (51153). Detail C Attach beams to desk top through pre-drilled holes in beams using #8 x 1"...
  • Page 71 Installation Principles ON SITE ROS-LVLG 1B6SZ5 Geiger Levels Leg Attach Cover panels Does not apply to Round column legs Peel back sticker on pre-applied velcro strips to expose glue face of velcro. Align bottom of insert panels with seam as shown below. Press fit insert panels onto velcro strips to secure panels.
  • Page 72 Geiger Levels Right Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Desk with End Panel Desk with Leg See Pages 7 to 10 See Pages 2 to 6 (desk shape and leg style may vary) Desk with Pedestal...
  • Page 73 Geiger Levels Right Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Parts List Desk with Leg Tools Required (desk shape and leg style may vary) o Measuring Tape o 4' level o Pencil o Cordless Drill o Rubber Mallet...
  • Page 74 ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Assemble Leg and Beams Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Attach beams to Leg top plate using (6x) 1/4-20 x 3/4" machine screws (1B5SVB), (Detail B).

  • Page 75: Finished Assembly

    Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Locate Leg/Beam Assembly on Desk Top Lay desk top upside down on clean, protected surface. Measure and locate Leg/Beam assembly relative to desk top. See below. Attach Leg Top Plate to desk top using #8 x 1" pan head wood screws. Detail C Attach beams to desk top through pre-drilled holes in beams using #8 x 1"...
  • Page 76 Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Attach to Adjoining Worksurface Locate position of runoff desk relative to adjoining worksurface. Locate flat brackets (10188) so that they are towards the edges of the runoff desk, but not exposed.
  • Page 77 Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Attach Cover panels Does not apply to Round column legs Peel back sticker on pre-applied velcro strips to expose glue face of velcro. Align bottom of insert panels with seam as shown below. Press fit insert panels onto velcro strips to secure panels.
  • Page 78 Geiger Levels Right Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Parts List Tools Required Desk with End Panel o Measuring Tape o 4' level o Pencil o Cordless Drill o Rubber Mallet o Drill bits: o #2 Robertson...
  • Page 79 ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Attach End Bracket To End Panel Using pilot holes on inside of end panel as a guide, fasten end bracket to panel using (6x) #8 x 1" Flat Head Wood Screw (50162).
  • Page 80 Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Attach Beam Covers Insert Beam Cover flanges into beam at open ends and gently tap into beams until they are flush . Attach End Panel Assembly To Top Align End Panel to edge of desk top and center end panel side to side with desk top.
  • Page 81 Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Attach to Adjoining Worksurface Locate position of runoff desk relative to adjoining worksurface. Locate flat brackets (10188) so that they are towards the edges of the runoff desk, but not exposed.
  • Page 82 Geiger Levels Right Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Parts List Desk with Pedestal Tools Required (desk shape may vary) o Measuring Tape o 4' level o Pencil o Cordless Drill o Rubber Mallet o Drill bits:...
  • Page 83 Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Attach to Adjoining Worksurface Locate position of runoff desk relative to adjoining worksurface. Locate flat brackets (10188) so that they are towards the edges of the runoff desk, but not exposed.
  • Page 84 Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Attach Pedestal Remove drawers for access to pedestal interior. Position pedestal so that edge of pedestal aligns with edge of desk top and front edge of pedestal aligns with desk edge profile as shown below.
  • Page 85 Right Installation Principles ON SITE ROS-LVRD 1B6SZ5 Geiger Levels Runoff Desks Attach Beam Covers Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Detail A Attach Beam to Desktop Attach beams to desk top through pre-drilled holes in beams using #8 x 1"...

  • Page 86: Installation Principles

    Geiger Levels Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Desk with Leg Desk with End Panel Desk with Pedestal See Pages 2 to 8 See Pages 9 to 14 See Pages 15 to 19 (desk shape and leg style may vary)
  • Page 87 Geiger Levels Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Parts List Tools Required Desk with Leg o Measuring Tape (desk shape and leg style may vary) o 4' level o Pencil o Cordless Drill o Rubber Mallet...
  • Page 88 ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Assemble Leg and Beams Insert Beam Cover flanges into beam at both ends and gently tap into beams until they are flush (Detail A). Attach beams to Leg top plate using (6x) 1/4-20 x 3/4" machine screws (1B5SVB), (Detail B).
  • Page 89 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Locate Leg/Beam Assembly on Desk Top Lay desk top upside down on clean, protected surface. Measure and locate Leg/Beam assembly relative to desk top. See below. Attach Leg Top Plate to desk top using (10x) #8 x 1" pan head wood screws (51153). Detail C Attach beams to desk top through pre-drilled holes in beams using #8 x 1"...
  • Page 90 Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Desk Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 91 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind desk, install these (but only after overheads are installed).
  • Page 92 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Desk to Shroud Carefully flip assembled desk upright. Lift deskover shroud and carefully place shroud bracket within shroud. See Detail E. Align shroud bracket holes with shroud holes.
  • Page 93 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Cover panels Does not apply to Round column legs Peel back sticker on pre-applied velcro strips to expose glue face of velcro. Align bottom of insert panels with seam as shown below. Press fit insert panels onto velcro strips to secure panels.
  • Page 94 Geiger Levels Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Parts List Tools Required Desk with End Panel o Measuring Tape o 4' level o Pencil o Cordless Drill o Rubber Mallet o Drill bits: o #2 Robertson...
  • Page 95 ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach End Bracket To End Panel Using pilot holes on inside of end panel as a guide, fasten end bracket to panel using (6x) #8 x 1" Flat Head Wood Screw (50162).
  • Page 96 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Beam Covers Insert Beam Cover flanges into beam at open ends and gently tap into beams until they are flush . Attach End Panel Assembly To Top Align End Panel to edge of desk top and center end panel side to side with desk top.
  • Page 97 Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Desk Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 98 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind desk, install these (but only after overheads are installed).
  • Page 99 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Desk to Shroud Carefully flip assembled desk upright. Lift desk over shroud and then down so that shroud bracket is within shroud. See Detail E. Align shroud bracket holes with shroud holes.
  • Page 100 Geiger Levels Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Parts List Desk with Pedestal Tools Required (desk shape may vary) o Measuring Tape o 4' level o Pencil o Cordless Drill o Rubber Mallet o Drill bits:...
  • Page 101 Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Desk Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 102 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind desk, install these (but only after overheads are installed).
  • Page 103 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Desk to Shroud Carefully flip assembled desk upright. Lift desk over shroud and then down so that shroud bracket is within shroud. See Detail B. Use Pedestal to support end of desk while installing desktop to shroud.
  • Page 104 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Beam Cover Insert Beam Cover flanges into beams and gently tap into beams until they are flush . Attach Beam To Desk Top Align beam flush to pedestal and recessed as shown in Detail C.
  • Page 105 Geiger Levels Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Parts List Rear Unit Tools Required (Storage may vary) o Measuring Tape o 4' level o Pencil o Cordless Drill o Rubber Mallet o Drill bits:...
  • Page 106 Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Credenza Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 107 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind credenza, install these (but only after overheads are installed).
  • Page 108 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Credenza to Shroud Carefully flip assembled credenza top upright. Set pedestal(s) at end of credenza roughly in position to support end of credenza top. Lift credenza top over shroud and then down so that shroud bracket is within shroud. See Detail C.

  • Page 109: Installation Principles

    Geiger Levels Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Parts List Tools Required o Measuring Tape Completed Bi-Level L Return o 4' level o Pencil o Cordless Drill o Rubber Mallet o Drill bits: o #2 Square Robinson...
  • Page 110 Right Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Credenza Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 111 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind credenza, install these (but only after overheads are installed).
  • Page 112 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach Flat Plates to Desk Using #8 x 1" Flat Head wood screws (50162), attach flat plates to underside of desk top. (8x) #8 x 1" Flat head wood...
  • Page 113 Installation Principles ON SITE ROS-LVBD 1B6SZ6 Geiger Levels Bi Level Desks Attach L Return to Shroud and Flat Plates Carefully flip assembled return top upright. Set desk roughly in position to support end of return top. Lift return top over shroud and then down so that shroud bracket is within shroud (See Detail C), and end of return rests on flat plates Align shroud bracket holes with shroud holes.
  • Page 124 Geiger Levels Right Installation Principles ON SITE ROS-LVBLR 1B8DBL Geiger Levels Bi Level L Return Parts List Tools Required o Measuring Tape Completed Bi-Level L Return o 4' level o Pencil o Cordless Drill o Rubber Mallet o Drill bits:...
  • Page 125 Installation Principles ON SITE ROS-LVBLR 1B8DBL Geiger Levels Bi Level L Return Attach Power Module (if applicable) Applies only to units with cutout for power module. Install power module as per separate instruction sheet. Attach Shroud Bracket to Credenza Top Using pilot holes on underside of desk top as guide, fasten shroud bracket to desktop using (5x) #8 x 1"...
  • Page 126 ON SITE ROS-LVBLR 1B8DBL Geiger Levels Bi Level L Return Attach Shroud to Lowboy Credenza Position lowboy credenza at its final location and level. If there will be tackboards located behind credenza, install these (but only after overheads are installed).
  • Page 127 Installation Principles ON SITE ROS-LVBLR 1B8DBL Geiger Levels Bi Level L Return Attach Flat Plates to Desk Using #8 x 1" Flat Head wood screws (50162), attach flat plates to underside of desk top. (8x) #8 x 1" Flat head wood...
  • Page 128 Installation Principles ON SITE ROS-LVBLR 1B8DBL Geiger Levels Bi Level L Return Attach L Return to Shroud and Flat Plates Carefully flip assembled return top upright. Set desk roughly in position to support end of return top. Lift return top over shroud and then down so that shroud bracket is within shroud (See Detail C), and end of return rests on flat plates Align shroud bracket holes with shroud holes.
  • Page 129 Installation Principles ON SITE ROS-LVLP 1BDV75 Geiger Levels L Panel Build L Panel Join L panels by sliding panel with connectors on exterior over and onto panel with connectors embedded inside mortise Using (8x) #8 x 1" pan head wood screws (51153) , attach L panel brackets to underside of top.

This manual is also suitable for:

1b5s4w
