AGS Parksafe Control Panel Installation & Operation Manual
Gas detection and ventilation control system
Hide thumbs
Also See for Parksafe Control Panel:
- Installation & operation manual (16 pages) ,
- Installation operation & maintenance (16 pages) ,
- Installation, operation & maintenance manual (20 pages)
Table of Contents
Advertisement
Quick Links
Installation & Operation Manual
Parksafe Control Panel

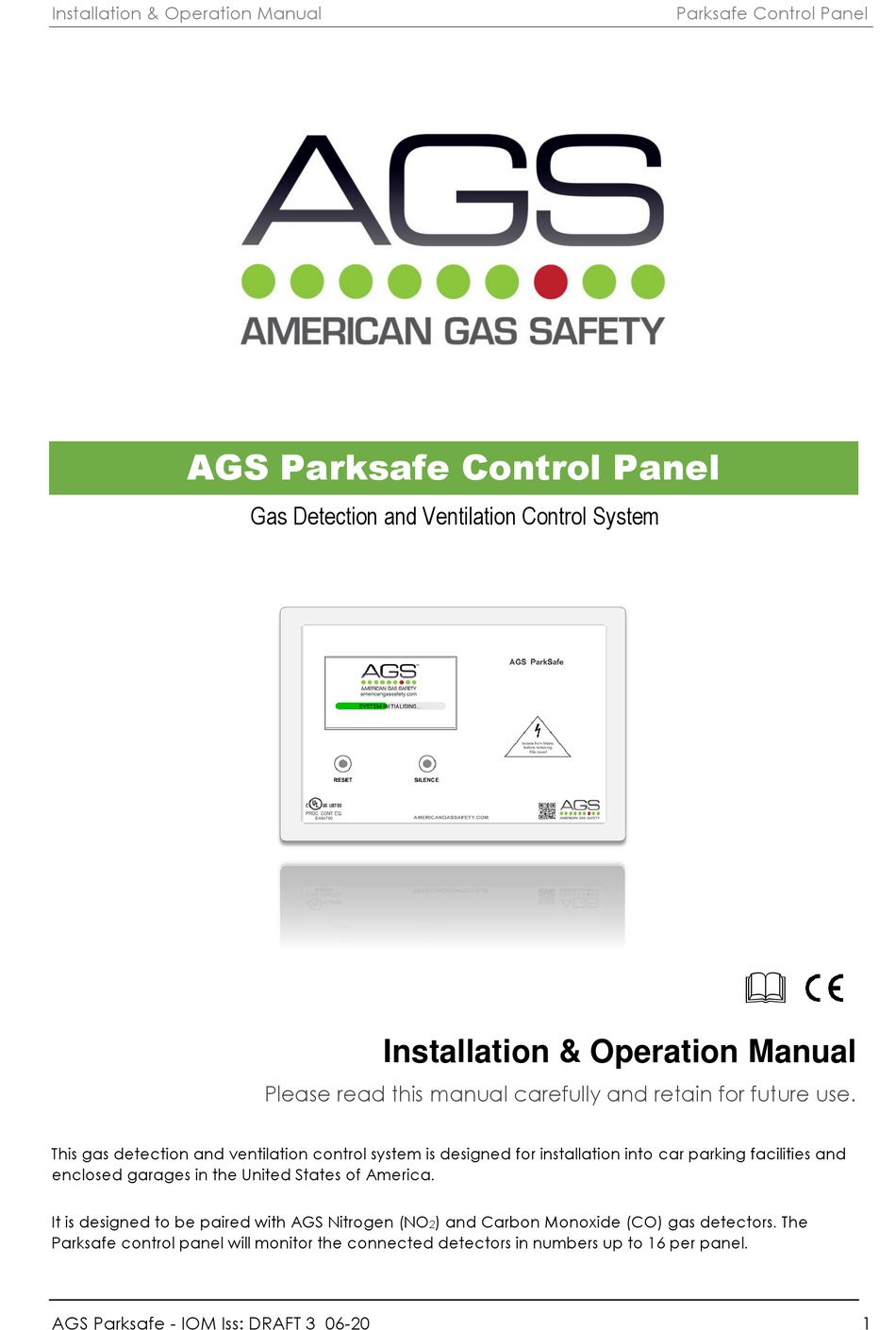

AGS Parksafe Control Panel
Gas Detection and Ventilation Control System
Installation & Operation Manual
Please read this manual carefully and retain for future use.
This gas detection and ventilation control system is designed for installation into car parking facilities and
enclosed garages in the United States of America.
It is designed to be paired with AGS Nitrogen (NO
) and Carbon Monoxide (CO) gas detectors. The
2
Parksafe control panel will monitor the connected detectors in numbers up to 16 per panel.
AGS Parksafe - IOM Iss: DRAFT 3 06-20
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AGS Parksafe Control Panel
Summary of Contents for AGS Parksafe Control Panel
- Page 1 It is designed to be paired with AGS Nitrogen (NO ) and Carbon Monoxide (CO) gas detectors. The Parksafe control panel will monitor the connected detectors in numbers up to 16 per panel. AGS Parksafe - IOM Iss: DRAFT 3 06-20...
-
Page 2: Table Of Contents
Fault Status ......................... 10 End Of Life Status....................... 10 Service Status ......................10 General Maintenance ..................... 10 Bump Testing ......................11 IMPORTANT WARNING STATEMENTS ..........12 Manufacturer’s Warranty ..................12 Installation Details ..................... 16 AGS Parksafe - IOM Iss: DRAFT 3 06-20... -
Page 3: Installation
It is designed to be paired with AGS Nitrogen (NO ) and Carbon Monoxide (CO) gas detectors that will be linked via MODBUS back to this Parksafe control panel. The Parksafe control panel will monitor the connected detectors in numbers up to 16 per panel. -
Page 4: Fixing
3. After executing the mounting and the connections – replace the front cover and insert the security caps over the four bolts. Be careful when creating access for cables – Damage to boards will void any warranty. Wiring your Parksafe Panel AGS Parksafe - IOM Iss: DRAFT 3 06-20... - Page 5 100-120V AC single phase mains power should be supplied to the [POWER/LINE IN] connector using a 3 core cable and fused at 3A. On connecting the mains supply to the panel the power LED indicator will light up – this is located on the front cover (AGS Logo). 2. OUTPUT 1 RELAY This relay output switches when any external AGS gas detectors reach ‘pre-alarm’...
-
Page 6: Parksafe Detector Identification
The Parksafe panel has a touch screen which allows the engineer/ user to configure the system. Adjust the screen brightness. Change/select option. (Press or slide the cursor up and down) (Press the blue option box or press and hold) AGS Parksafe - IOM Iss: DRAFT 3 06-20... -
Page 7: Menu Options Explained
Gas Detector Wiring Length 500 Yards Housing Material Polylac PA-765 Flame Rating UL 94 Approvals CE, RoHS O/All Dimensions (H x W x D) mm / inch 7.08 x 10 x 3.03” AGS Parksafe - IOM Iss: DRAFT 3 06-20... -
Page 8: Operation
Parksafe Control Panel OPERATION First Power Up On connecting mains power, the Parksafe control panel will ‘warm up’ for approximately 60 seconds – during this time the screen will display an ‘system initialising’ message. The panel will now search for detector signals. -
Page 9: Accessing Gas Detector Information
0 - 25 ppm 25 -100 ppm + 100 ppm Nitrogen Dioxide (NO 0 - 0.7 ppm 0.7 - 2 ppm + 2 ppm For more information refer to your Parksafe detector manual. AGS Parksafe - IOM Iss: DRAFT 3 06-20... -
Page 10: Fault Status
Avoid exposure of high concentrations of alcohol found in many products, this can damage, deteriorate or affect the gas sensing elements. For more information refer to your Parksafe gas detector manual. AGS Parksafe - IOM Iss: DRAFT 3 06-20... -
Page 11: Bump Testing
Remember, bump testing does not remove the need to have gas detectors inspected, calibrated and serviced periodically by a trained engineer. You should not attempt this yourself and should employ the services of a specialist company. For more information on this, contact us. AGS Parksafe - IOM Iss: DRAFT 3 06-20... -
Page 12: Important Warning Statements
Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. Please contact your supplier or local authority for details of recycling schemes in your area. AGS Parksafe - IOM Iss: DRAFT 3 06-20... - Page 13 Installation & Operation Manual Parksafe Control Panel Notes AGS Parksafe - IOM Iss: DRAFT 3 06-20...
- Page 14 Installation & Operation Manual Parksafe Control Panel Notes AGS Parksafe - IOM Iss: DRAFT 3 06-20...
- Page 15 Installation & Operation Manual Parksafe Control Panel Notes AGS Parksafe - IOM Iss: DRAFT 3 06-20...
-
Page 16: Installation Details
CONTACT US: AGS Head Office Tel: (727) 608-4375 Fax: (727) 538-4237 info@americangassafety.com American Gas Safety is the owner of this document and reserves all rights of modification without prior notice. AGS Parksafe - IOM Iss: DRAFT 3 06-20...
