GENERAL INFORMATION

General

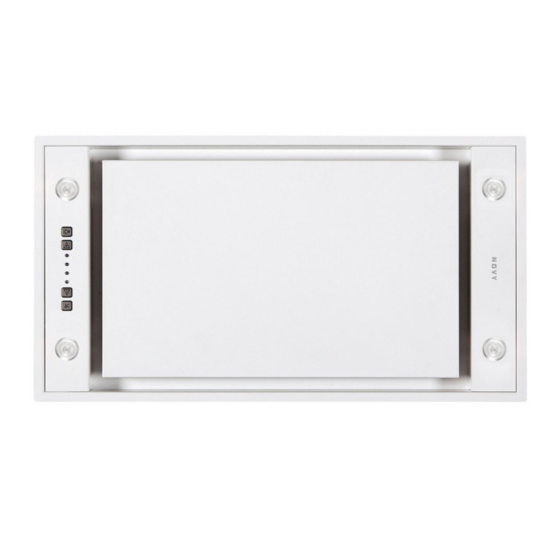

These are the mounting instructions for the Novy unit shown on the cover. The user manual is delivered separately with
this unit. Carefully read these instructions before installing and commissioning this unit. It is recommended to have one
or more qualified persons carry out the installation.
This manual makes use of a number of symbols. The meaning of these symbols are given below.
Symbol
Safety
Observe the following mounting and safety tips for mounting:
• The installation and electrical connection of the unit shall be carried out by an authorised expert.
• The manufacturer does not accept any responsibility for any damage resulting from faulty building in or connection.
• Carefully take the unit from the packaging and check it for damage before mounting.
• Do not mount the unit in case of any damage.
• Check if all mounting materials have been supplied using the drawings at page 2.
• The unit is intended for household use only (preparation of food) excluding any other domestic, commercial or in-
dustrial use.
• Safety can only be guaranteed if the unit is connected to an earth wire in accordance with the required regulations.
• Do not use an extension cord for connecting to the electricity grid.
• Replace defective or damaged parts only with original Novy parts.
• Replace a damaged power cable with an original Novy power cable.
Important before mounting
Page 2 of these mounting instructions show the mounting drawings. Observe the following mounting tips before starting
the mounting activities:
• For easier mounting of the ceiling unit, it is recommended to do this with at least 2 persons.
• Make sure that the construction has sufficient load bearing capacity.
• Position the wall socket in such a way that it is behind the ceiling unit.
Exhaust or recirculation
Before starting any mounting activities, you must have made the choice if you are going to make an exhaust duct to the
outside or if you are going to use the hood as a recirculation hood. In case of an exhaust duct to the outside, carefully
read the section in these mounting instructions for installing the exhaust duct. If you choose for recirculation, Novy offers
the exhaust box (see accessories).
InTouch
InTouch offers the option to control the Novy cooker hood from the Novy InTouch induction hotplate. The ceiling unit
may, as a default, be combined with InTouch induction hotplates. Visit the website for the different models of induction
hotplates with InTouch

INSTALLATION

Proceed following the mounting drawings on page 2.
1
Make a build-in opening:
Type 810 / 811 – Cut-away 545 mm x 286 mm
Type 820 / 821 – Cut-away 845 mm x 286 mm
The built-in unit can be built into plates with a thickness of 18-35mm. Do not mount directly into gypsum
board; always make sure there is reinforcement for the tightening of the mounting clamps.
Make sure there is a socket near the built-in unit, so that the power may, at all times, be removed from the unit.
The mounting height for a gas or induction cooking plate is min. 650 mm and max. 750 mm. The mounting
height for a ceramic or electrical cooking plate is min. 600 mm and max. 750 mm.
• The built-in unit is to be mounted with the control on the right side of the user so the bottom plate is hinged away
from you and the filter can be easily taken out of the hood.
• Before mounting the built-in unit, a cut-away must be made in the mounting plate. It is recommended to finish the
cut-away in a watertight way.
Meaning
Indication
Warning
Action
Explanation of an indication on the
hood
This symbol indicates an important tip
or a dangerous situation.
EN 12
