FC-7 Quick Start Guide
This guide helps you install and use your FC-7 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

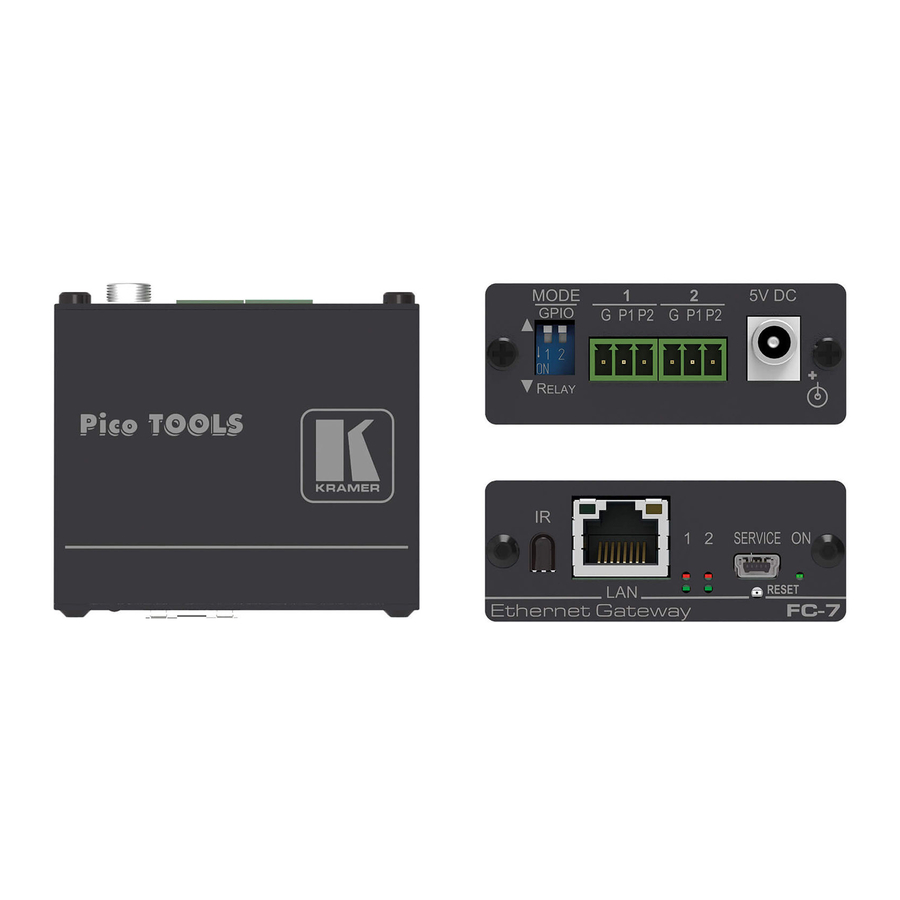

FC-7 Ethernet Gateway
1 USB-A to USB mini cable

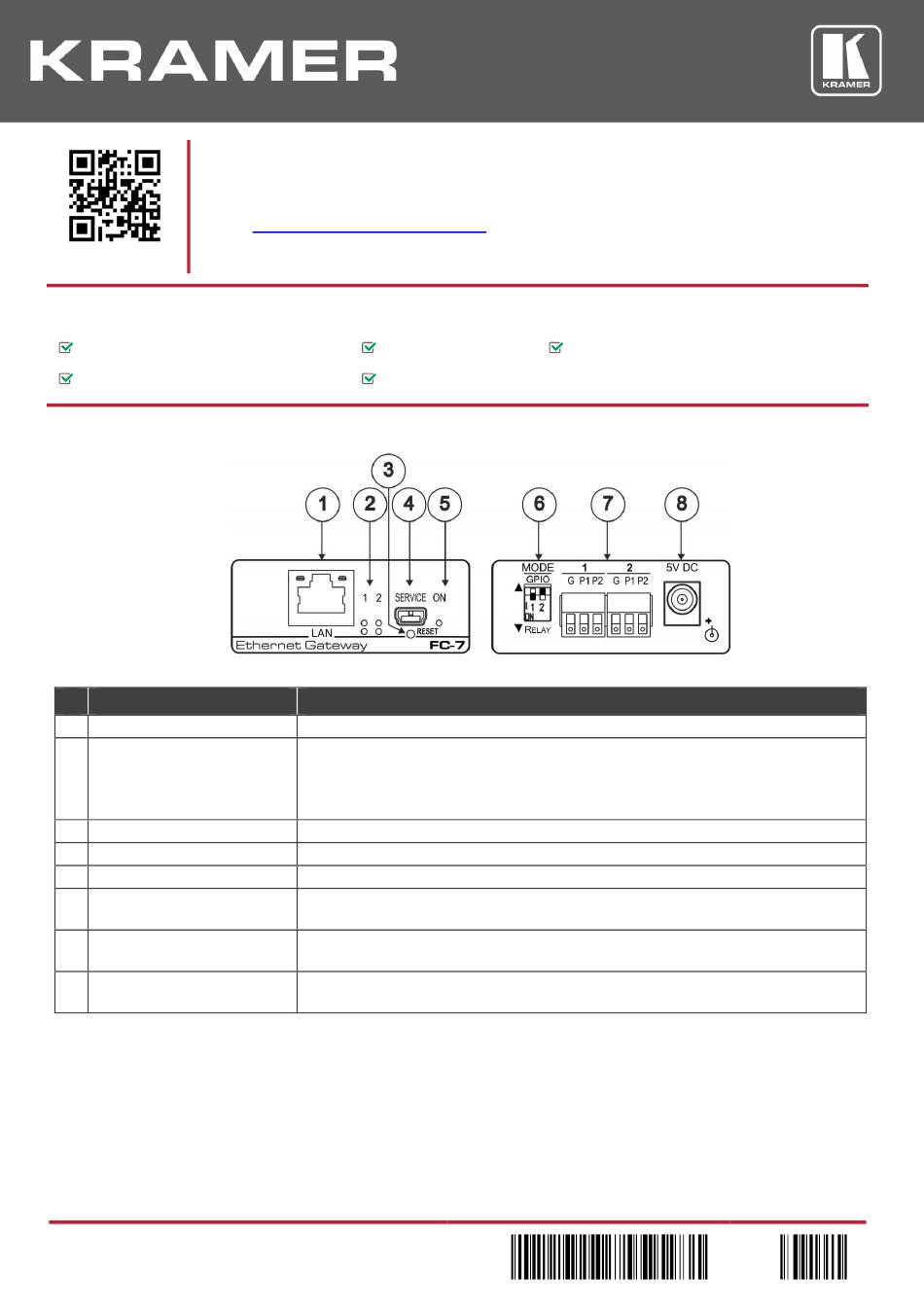

Step 2: Get to know your FC-7
# Feature
1 LAN RJ-45 Connector
2 Activity LEDs
Ports 1 and 2, white (upper) and
blue (lower)
3 RESET Button
4 SERVICE Mini USB Connector
5 ON LED
6 MODE DIP-switches
(Port 1 and Port 2)
7 Port 1 and 2 I/O 3-pin Terminal
Block
8 5V DC Connector
FC-7 Quick Start (P/N: 2900-300597QS REV 1)
www.kramerav.com/downloads/FC-7
4 Rubber feet
1 Quick start guide
Function
Connects to an IP client or other controller, either directly or via a LAN
Show the transmission status of port 1 and port 2:
When set as GPIO, the white LED indicates active IO-P1 and blue LED indicates active IO-P2
When set as RELAY, the white LED indicates active Relay-P1 and blue LED indicates active
Relay-P2
Press and hold while cycling the device power to reset to factory default parameters
Connects to a USB power source for powering and to a PC for a local firmware upgrade
Lights green when the unit is powered on
Switch up (off) for GPIO, switch down (on) for relay
The default setting is port 1 GPIO (up) and port 2 relay (down)
Each terminal block port connects to two GPIO ports or one relay
For extra power resiliency, connect to the optional 5V DC power supply, center pin positive.
Not needed when the device is supplied power by a USB power source
to download the latest user manual and check if firmware
1 Bracket set
P/N: 2 9 0 0 - 3 0 0 5 9 7 QS Rev: 1
