FC-7P Quick Start Guide
This guide helps you install and use your FC-7P for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
FC-7P Ethernet Gateway
1 USB-A to USB mini cable

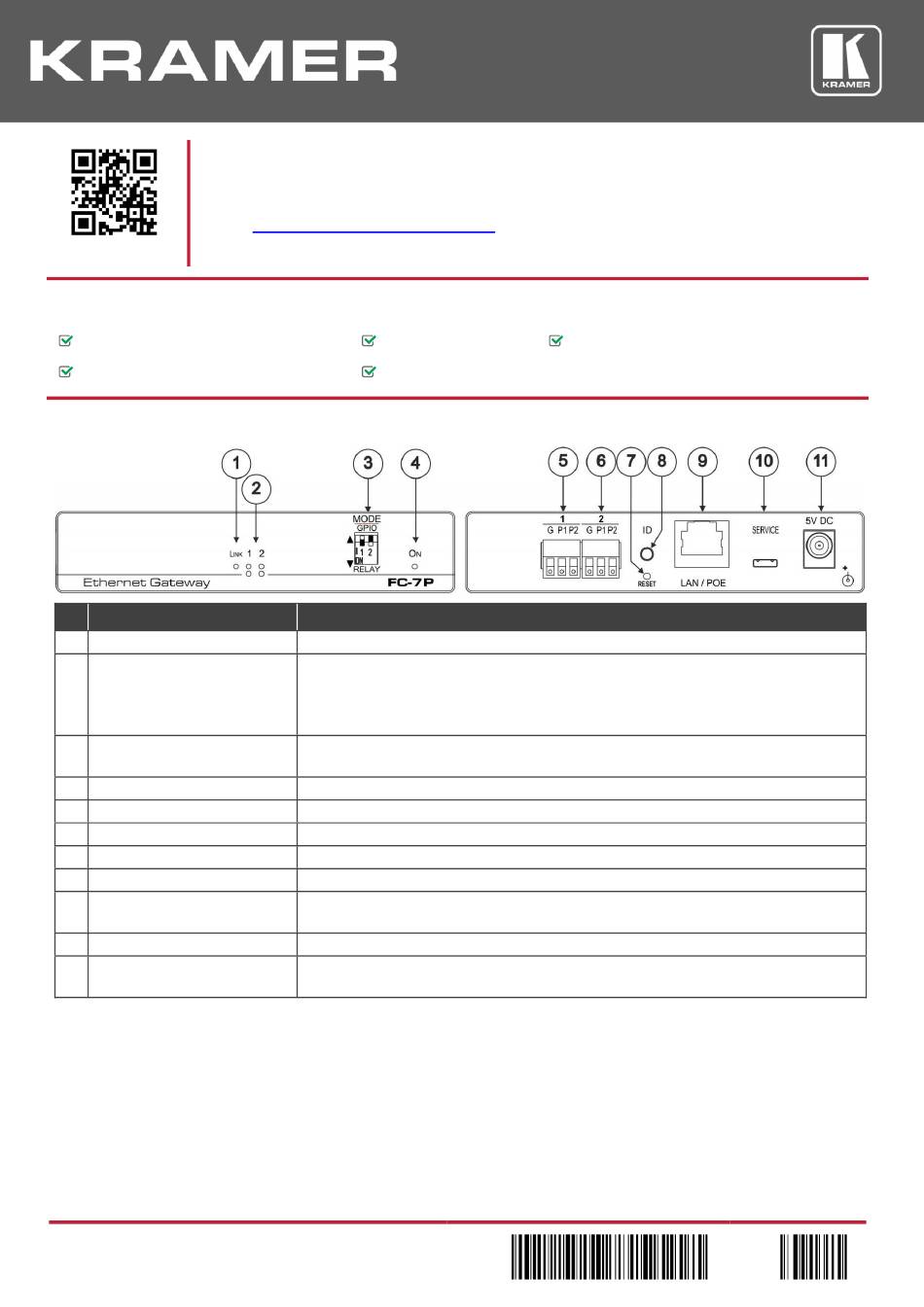

Step 2: Get to know your FC-7P

# Feature
1 LINK LED
2 Activity LEDs
Ports 1 and 2, white (upper) and
blue (lower)
3 MODE DIP-switches
(Port 1 and Port 2)
4 ON LED
5 Port 1 I/O 3-pin Terminal Block
6 Port 2 I/O 3-pin Terminal Block
7 RESET Button
8 ID
9 LAN/POE RJ-45 Connector
10 SERVICE Mini USB Connector
11 5V DC Connector
FC-7P Quick Start (P/N: 2900-300615QS REV 1)
www.kramerav.com/downloads/FC-7P
4 Rubber feet
1 Quick start guide
Function
Shows the Ethernet link is active
Show the transmission status of port 1 and port 2:
When set as GPIO, the white LED indicates active IO-P1 and blue LED indicates active IO-P2
When set as RELAY, the white LED indicates active Relay-P1 and blue LED indicates active
Relay-P2
Switch up (off) for GPIO, switch down (on) for relay
The default setting is port 1 GPIO (up) and port 2 relay (down)
Lights green when the unit is on
Port 1 terminal block port connects to two GPIO ports or two relays
Port 2 terminal block port connects to two GPIO ports or two relays
Press and hold while cycling the device power to reset to factory default parameters
Press to broadcast ID message for auto-discovery of the device
Connects to a PoE source (Power over Ethernet) for powering and an IP client or other
controller, either directly or via a LAN
Connects to a USB power source for powering and to a PC for a local firmware upgrade
For extra power resiliency, connect to the optional 5V DC power supply, center pin positive.
Not needed when the device is supplied power by PoE or a USB power source
to download the latest user manual and check if firmware
1 Bracket set
