Anynet +


Connecting Anynet + Devices
Anynet + is a function that enables you to control all connected Samsung devices that support Anynet + with your Samsung TV's remote.
The Anynet + system can be used only with Samsung devices that have the Anynet + feature. To be sure your Samsung device has this
feature, check if there is an Anynet + logo on it.
Connect the HDMI IN (1(DVI), 2 or 3) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI
cable.
1
Connect the HDMI IN (1(DVI), 2 or 3) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an
HDMI cable.
2
Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet + device using an HDMI
cable.
■ Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on
the Home Theatre.
■ When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the
Home Theatre's Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the
DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable / Satellite Box (ie Anynet Device 1 or 2) directly to
the Amplifier or Home Theatre, not the TV.
■ Connect only one Home Theatre.
You can connect an Anynet + device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet + functions.
■
Anynet + works when the AV device supporting Anynet + is in the Standby or On status.
■
Anynet + supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
■
What is Anynet + ?

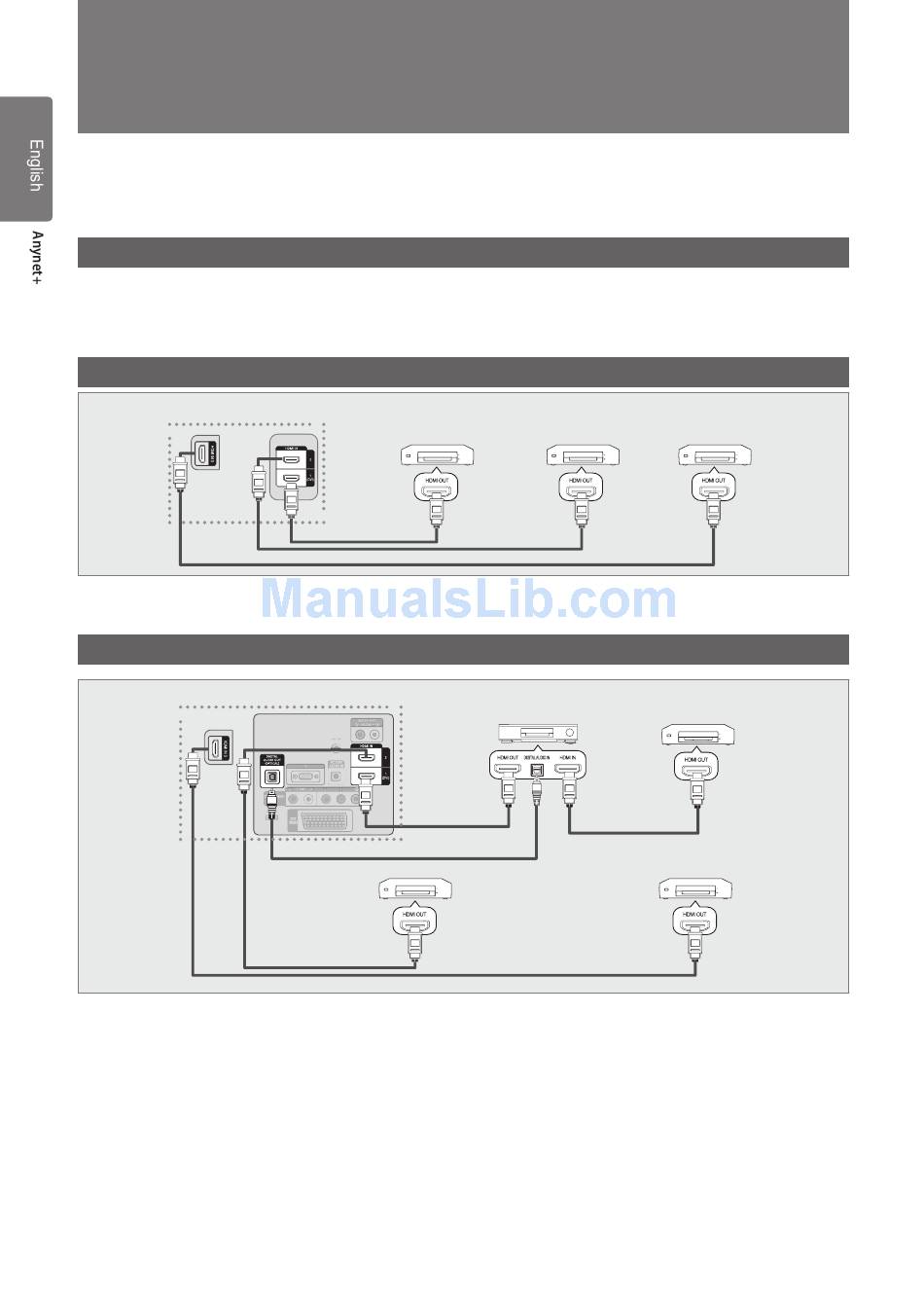

To connect to a TV
Anynet +
TV
Device 1
HDMI 1.3 Cable
To connect to Home Theatre
TV
Optical Cable
Anynet + Device 2
HDMI 1.3 Cable
Anynet +
Device 2
HDMI 1.3 Cable
HDMI 1.3 Cable
Home Theatre
HDMI 1.3
Cable
HDMI 1.3 Cable
HDMI 1.3 Cable
Anynet+
Device 3
Anynet + Device 1
Anynet + Device 3
