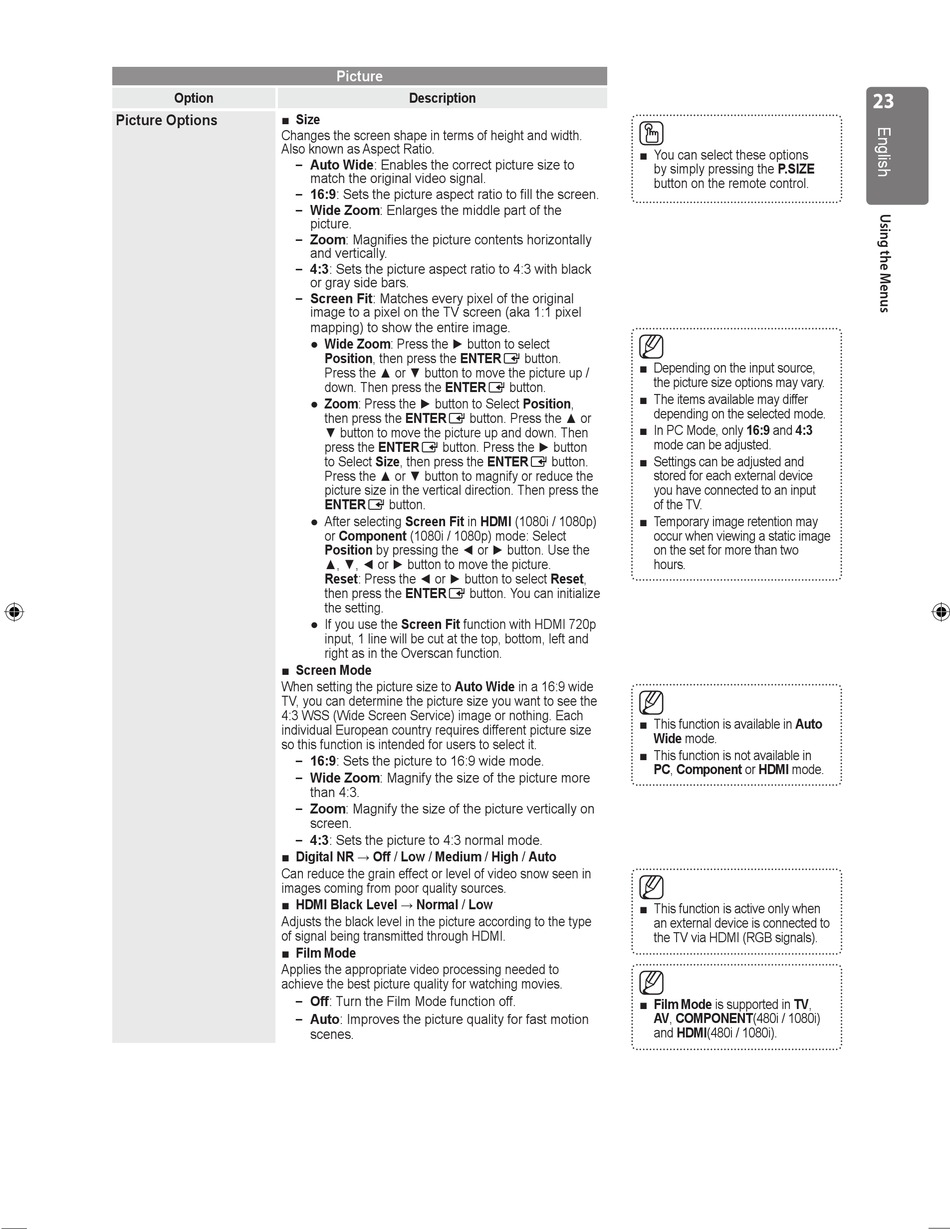

Samsung LE32B530P7N User Manual page 23

Option
Picture Options
Description
■ Size
Changes the screen shape in terms of height and width.
Also known as Aspect Ratio.
• Auto Wide: Enables the correct picture size to
match the original video signal.
• 16:9: Sets the picture aspect ratio to fill the screen.
•
Wide Zoom: Enlarges the middle part of the
picture.
•
Zoom: Magnifies the picture contents horizontally
and vertically.
•
4:3: Sets the picture aspect ratio to 4:3 with black
or gray side bars.
•
Screen Fit: Matches every pixel of the original
image to a pixel on the TV screen (aka 1:1 pixel
mapping) to show the entire image.
● Wide Zoom: Press the ► button to select
Position, then press the ENTERE button.
Press the ▲ or ▼ button to move the picture up /
down. Then press the ENTERE button.
● Zoom: Press the ► button to Select Position,
then press the ENTERE button. Press the ▲ or
▼ button to move the picture up and down. Then
press the ENTERE button. Press the ► button
to Select Size, then press the ENTERE button.
Press the ▲ or ▼ button to magnify or reduce the
picture size in the vertical direction. Then press the
ENTERE button.
● After selecting Screen Fit in HDMI (1080i / 1080p)
or Component (1080i / 1080p) mode: Select
Position by pressing the ◄ or ► button. Use the
▲, ▼, ◄ or ► button to move the picture.
Reset: Press the ◄ or ► button to select Reset,
then press the ENTERE button. You can initialize
the setting.
● If you use the Screen Fit function with HDMI 720p
input, 1 line will be cut at the top, bottom, left and
right as in the Overscan function.
■ Screen Mode
When setting the picture size to Auto Wide in a 16:9 wide
TV, you can determine the picture size you want to see the
4:3 WSS (Wide Screen Service) image or nothing. Each
individual European country requires different picture size
so this function is intended for users to select it.
• 16:9: Sets the picture to 16:9 wide mode.
•
Wide Zoom: Magnify the size of the picture more
than 4:3.
• Zoom: Magnify the size of the picture vertically on
screen.
• 4:3: Sets the picture to 4:3 normal mode.
Digital NR → Off / Low / Medium / High / Auto
■
Can reduce the grain effect or level of video snow seen in
images coming from poor quality sources.
■ HDMI Black Level → Normal / Low
Adjusts the black level in the picture according to the type
of signal being transmitted through HDMI.
■ Film Mode
Applies the appropriate video processing needed to
achieve the best picture quality for watching movies.
•
Off: Turn the Film Mode function off.
•
Auto: Improves the picture quality for fast motion
scenes.
■ You can select these options
by simply pressing the P.SIZE
button on the remote control.
■ Depending on the input source,
the picture size options may vary.
■ The items available may differ
depending on the selected mode.
■ In PC Mode, only 16:9 and 4:3
mode can be adjusted.
■ Settings can be adjusted and
stored for each external device
you have connected to an input
of the TV.
■ Temporary image retention may
occur when viewing a static image
on the set for more than two
hours.
■ This function is available in Auto
Wide mode.
■ This function is not available in
PC, Component or HDMI mode.
■ This function is active only when
an external device is connected to
the TV via HDMI (RGB signals).
Film Mode is supported in TV,
■
AV, COMPONENT(480i / 1080i)
and HDMI(480i / 1080i).
