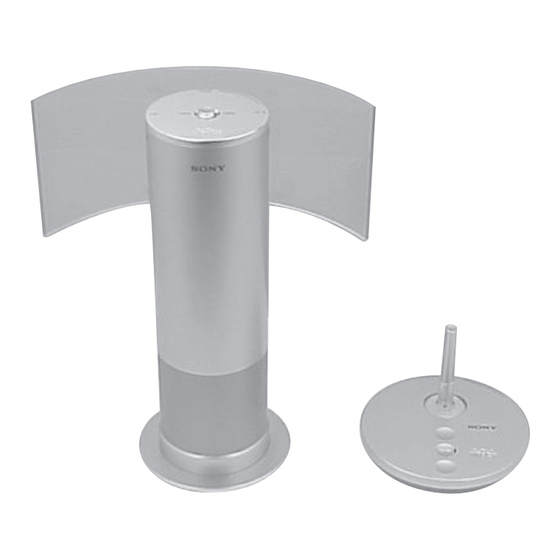

Wireless stereo speaker system wireless stereo speaker system
Hide thumbs Also See for SRS-RF90RK:

Advertisement

SERVICE MANUAL
Ver 1.0 2002. 02
• SRS-RF90RK is composed of following models.
COMPONENT MODEL NAME
SRS-RF90RK
Wireless Active Speaker
SRS-RF90R
RF Transmitter
TMR-RF90
• SRS-RF90R is sold as single model too.
General
Carrier frequency 913.5 – 914.5 MHz
Channel
Modulation
Transmitter (SRS-RF90RK only)
Power source
Audio input
Input impedance 33 kΩ/51 Ω switchable
Dimensions
Mass
Speaker system SRS-RF90RK, SRS-RF90R
Speaker system 2 way magnetically shielded
Enclosure type Bass reflex
Speaker units
Power source
Rated output
Dimensions
Mass
Sony Corporation
9-873-530-01
2002B1600-1
Personal Audio Company
© 2002.02
Published by Sony Engineering Corporation
SRS-RF90R
SPECIFICATIONS
Ch1, Ch2, Ch3
FM stereo
DC 9 V: supplied AC power adaptor
(AC-S901)
phono jacks/stereo mini jack
Approx. 136 × 136 × 100 mm
(6 × 6 × 4
1
/
in.) (w/h/d)
3
Approx. 146 g (5.2 oz.)
tweeter: 30 mm × 2
woofer: 57 mm × 1
DC 9 V: supplied AC adaptor (AC-S906T)
Built in amplifiers total 4W (while
using the supplied AC adaptor)
* power output:
Tweeter: 0.25W + 0.25W < 10%
T.H.D., 5 kHz 24 ohms
Woofer: 3.5W < 10% T.H.D., 1kHz
6 ohms
Approx. 234 × 300 × 126 mm
× 11
× 5 in.) (w/h/d)
( 9
1
/
7
/
4
8
Approx. 905 g (31.9 oz.) incl.
built-in rechargeable battery
WIRELESS STEREO SPEAKER SYSTEM
SRS-RF90R/RF90RK/
TMR-RF90
Built-in Ni-Cd rechargeable battery
Voltage
7.2 V
Capacity
700 mAh
Duration time
Approx. 4 hours
(with the 10 mW reflector light OFF)
Charging time
Approx. 28 hours (from fully
discharged to fully charged)
Supplied accessory
The transmitter (SRS-RF90RK only)
AC adaptor (2 for SRS-RF90RK) (1 for SRS-RF90R)
Connecting cord phono plug-stereo miniplug (1m) (1)
Operating instructions (1)
Design and specifications are subject to change without
notice.
TMR-RF90
US Model
Canadian Model

Advertisement

Table of Contents
loading

Summary of Contents for Sony SRS-RF90RK

  • Page 1 Approx. 136 × 136 × 100 mm Dimensions The transmitter (SRS-RF90RK only) (6 × 6 × 4 in.) (w/h/d) AC adaptor (2 for SRS-RF90RK) (1 for SRS-RF90R) Mass Approx. 146 g (5.2 oz.) Connecting cord phono plug-stereo miniplug (1m) (1) Operating instructions (1)
  • Page 2: Table Of Contents

    SRS-RF90R/RF90RK/TMR-RF90 TABLE OF CONTENTS 1. GENERAL ·········································································· 4 2. DISASSEMBLY 2-1. Grille bracket ································································· 5 2-2. Front cabinet section, Rear cabinet section ··················· 6 2-3. Nickel cadmium battery, Speaker (057F022) ················ 6 2-4. Cabinet (Top section), JACK Board, RX board ············ 7 2-5.
  • Page 3 SRS-RF90R/RF90RK/TMR-RF90 SERVICING NOTE Leading about of wiring ( Front side ) cushion cushion ( Rear side ) tape Note : In the place of a mark, as shown in figure, the wires are taken about.
  • Page 4: General

    SRS-RF90R/RF90RK/TMR-RF90 SECTION 1 This section is extracted from instruction manual. GENERAL SRS-RF90R Connect the speaker system to a power OFF y ON The switch of the source. reflector light High TUNING button VOLUME control POWER switch Tweeter Tweeter POWER indicator (left) (right) AC power adaptor (supplied)
  • Page 5: Disassembly

    SRS-RF90R/RF90RK/TMR-RF90 SECTION 2 DISASSEMBLY Note : Disassemble the unit in the order as shown below. SET(SRS-RF90R) GRILLE BRACKET FRONT CABINET SECTION, (Page 5) REAR CABINET SECTION (Page 6) NICKEL CADMIUM BATTERY, CABINET(TOP SECTION), AMP BOARD, SPEAKER(057F022) JACK BOARD, RX BOARD MEGABASS BOARD, (Page 6) (Page 7)
  • Page 6: Front Cabinet Section, Rear Cabinet Section

    SRS-RF90R/RF90RK/TMR-RF90 2-2. Front Cabinet Section, Rear Cabinet Section 8 connector (CN203) 9 front cabinet section rear cabinet section 6 eight screws (+BVTP 3 × 12) 1 reflector 5 stand 7 connector 4 two screws 2 three screws (CN802) (+P 3 × 10) (+P 3 ×...
  • Page 7: Cabinet (Top Section), Jack Board, Rx Board

    SRS-RF90R/RF90RK/TMR-RF90 2-4. Cabinet (Top Section), JACK board, RX board 5 two screws (+BVTP 3 × 10) 1 connector (CN302) 9 screw (DIA. 12) 3 power button 2 connector (CN301) 6 cabinet (top section) q; JACK board 8 connector (CN804) 7 connector (CN801) qa connector (CN101) 4 connector (CN304)
  • Page 8: Amp Board, Megabass Board

    SRS-RF90R/RF90RK/TMR-RF90 2-6. AMP board, MEGABASS board, REFLECTOR board 3 screw 7 Remove eight solderings. (+P 2.6 × 6) 8 MEGABASS board 6 AMP board 9 connector (CN304) q; screw (+P 2.6 × 6) qa REFLECTOR board 2 connector (CN202) 1 power button 5 connector (CNP201) 4 connector (CNP202) 2-7.
  • Page 9: Electrical Adjustments

    SRS-RF90R/RF90RK/TMR-RF90 SECTION 3 ELECTRICAL ADJUSTMENTS TMR-RF90 Setting : Modulation Check and Adjustment 1. Set the channel to CH2. AF signal 2. An electric wave is output for 5or 10 minutes when off to on a generator power supply (Power indicator will on). 3.
  • Page 10 SRS-RF90R/RF90RK/TMR-RF90 SRS-RF90R Notes: 13. Switch on the transmitter again. 1. Use transmitter with check and adjustment already completed. 14. Set the transmitter CHANNEL switch to 1. 2. On adjusting the speaker section, use the transmitter as a 15. Push the TUNE switch (S301) to receive radio frequency. jig.
  • Page 11 SRS-RF90R/RF90RK/TMR-RF90 17. Check the difference of the L and R to more than 20 dB. oscilloscope digital voltmeter (AC range) L+ / R+ IC101 pin4 L– / R– – L– – – Asjustment Location : RX BOARD IC101 7 (Conductor side) (Connect a 33 K Ω...
  • Page 12: Diagrams

    SRS-RF90R/RF90RK/TMR-RF90 SECTION 4 DIAGRAMS Note on Printed Wiring Boards: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.
  • Page 13: Srs-Rf90R

    SRS-RF90R/RF90RK/TMR-RF90 4-1. Block Diagrams (SRS-RF90R) L102 IC101 IF AMP/DECODE IC201 (ANT) FRONT END FM IF/ DECODE IC202 FM FE (SPEAKER) FE UNIT DISCRI R-CH POWER AMP CF102 R-CH R-CH (914MHz) IC103 10.7MHz COMP. +2.2V DETUNE TUNING CF101 MUTE R-CH R-CH 10.7MHz (SPEAKER) AUTO...
  • Page 14: Tmr-Rf90

    SRS-RF90R/RF90RK/TMR-RF90 (TMR-RF90) IC403 ANT401 STEREO MPX RV403 IC401 MODULATION R-CH J401 (STEREO COMPOSITE SIGNAL) BUFFER MOD IN TIME DIVISION AUDIO IN J402 R-CH (VCO UNIT) NOISE BUFFER FILTER R-CH S401 NOISE FILTER DIVIDER IC402 Q404 DC IN 9V Q408 SWITCH CHANNEL X401 38kHz...
  • Page 15: Rx Bord Section

    SRS-RF90R/RF90RK/TMR-RF90 4-2. Printed Wiring Boards (SRS-RF90R) – RX Board Section – IC105 IC101 FE UNIT • Semiconductor Location Ref. No. Location D101 D102 D103 D601 D602 D701 IC101 IC102 IC103 IC104 IC105 Q101 Q102 Q103 Q104 Q105 Q106 Q107...
  • Page 16: Schematic Diagram (Srs-Rf90R)

    SRS-RF90R/RF90RK/TMR-RF90 4-3. Schematic Diagram (SRS-RF90R) – RX Board Section – • IC Block Diagram IC104 TC7W74FU...
  • Page 17: Amp Bord Section

    SRS-RF90R/RF90RK/TMR-RF90 4-4. Printed Wiring Boards (SRS-RF90R) – AMP Board Section – • Semiconductor Location Ref. No. Location D201 D202 D203 D204 D801 IC201 IC202 IC203 Q202 Q203 Q204 Q901 IC201 RECHARGEABLE BATTERY (NICKEL-CADMIUM) 6PCS. 7.2V...
  • Page 18: Schematic Diagram (Srs-Rf90R)

    SRS-RF90R/RF90RK/TMR-RF90 4-5. Schematic Diagram (SRS-RF90R) – AMP Board Section – • IC Block Diagram IC202, 203 TEA2025B THERMAL PROTECT START CIRCUIT DECOUPLING...
  • Page 19: Printed Wiring Board (Tmr-Rf90)

    SRS-RF90R/RF90RK/TMR-RF90 4-6. Printed Wiring Board (TMR-RF90R) IC402 IC401 VCO UNIT • Semiconductor Location Ref. No. Location D401 D403 D404 D405 D406 D408 D409 D410 IC403 IC401 IC402 IC403 Q401 Q402 Q404 Q405 Q406 Q408...
  • Page 20: Schematic Diagram (Tmr-Rf90)

    SRS-RF90R/RF90RK/TMR-RF90 4-7. Schematic Diagram (TMR-RF90) D401 POWER • Waveforms IC403 6 TO CRYSTAL 1.8 Vp-p 26.3 µ s 500mV/DIV, 10 µ s /DIV IC403 8 PILOT OUTPUT 0.58 Vp-p 52.6 µ s 200mV/DIV, 20 µ s /DIV...
  • Page 21: Exploded Views

    SRS-RF90R/RF90RK/TMR-RF90 SECTION 5 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may • The mechanical parts with no reference number • Abbreviation have some differences from the original one. in the exploded views are not supplied. CND : Canadian model •...
  • Page 22: Rear Cabinet Section (Srs-Rf90R)

    SRS-RF90R/RF90RK/TMR-RF90 5-2. Rear Cabinet Section (SRS-RF90R) supplied supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1-683-315-11 JACK BOARD 1-683-317-11 REFLECTOR BOARD 4-227-899-01 SCREW (DIA. 12), FROATING 3-235-605-01 PILLAR 3-235-597-01 HOLDER (R), MDD 3-235-617-01 CUSHION, LED * 54 A-3178-298-A MEGABASS BOARD, COMPLETE 3-235-595-11 CABINET, REAR...
  • Page 23: Tmr-Rf90

    SRS-RF90R/RF90RK/TMR-RF90 5-3. TMR-RF90 ANT401 supplied supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks X-3381-187-1 CABINET SUB ASSY, LOWER 3-235-620-11 CABINET (UPPER)(CND) 4-984-729-01 FOOT, RUBBER X-3381-189-1 ANTENNA SUB ASSY * 103 A-3178-145-A TX BOARD, COMPLETE * 108 A-3021-940-A VCO UNIT 3-235-599-01 LIGHT (POWER), GUIDE, ANT401 4-213-164-01 TERMINAL, ANTENNA...
  • Page 24: Electrical Parts List

    SRS-RF90R/RF90RK/TMR-RF90 SECTION 6 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • CAPACITORS: • SEMICONDUCTORS parts list may be different from the parts uF: µF In each case, u: µ, for example: specified in the diagrams or the components •...
  • Page 25 SRS-RF90R/RF90RK/TMR-RF90 CHARGE JACK MEGABASS REFLECTOR Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R206 1-216-833-11 METAL CHIP 1/16W < JACK > R207 1-216-833-11 METAL CHIP 1/16W R208 1-216-821-11 METAL CHIP 1/16W J801 1-785-066-11 JACK,DC(POLARITY UNIFIED TYPE) (DC IN 9V) R209 1-216-829-11 METAL CHIP 4.7K...
  • Page 26 SRS-RF90R/RF90RK/TMR-RF90 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C107 1-162-921-11 CERAMIC CHIP 33PF < IC > C108 1-162-908-11 CERAMIC CHIP 8.33% 50V C109 1-162-924-11 CERAMIC CHIP 56PF 5.00% 50V IC101 8-752-072-12 IC CXA1538N-T4 C110 1-162-924-11 CERAMIC CHIP 56PF 5.00% 50V IC102...
  • Page 27 SRS-RF90R/RF90RK/TMR-RF90 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R127 1-216-835-11 METAL CHIP 1/16W A-3178-145-A TX BOARD, COMPLETE R128 1-216-857-11 METAL CHIP 1/16W ******************* R129 1-216-841-11 METAL CHIP 1/16W A-3021-940-A VCO UNIT R130 1-216-837-11 METAL CHIP 1/16W R131 1-216-841-11 METAL CHIP...
  • Page 28 SRS-RF90R/RF90RK/TMR-RF90 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < IC > R440 1-216-049-11 RES-CHIP 1/10W R446 1-216-051-00 METAL CHIP 1.2K 1/10W IC401 8-759-998-71 IC BA3308F-E2 R448 1-216-049-11 RES-CHIP 1/10W IC402 8-759-537-90 IC KIA78S05P-TP R449 1-216-081-00 METAL CHIP 1/10W IC403 8-759-667-59 IC NJM2035M(TE2)
  • Page 29 SRS-RF90R/RF90RK/TMR-RF90 MEMO...
  • Page 30 SRS-RF90R/RF90RK/TMR-RF90 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2002.02...
