Pulsar dB Series Instruction Manual

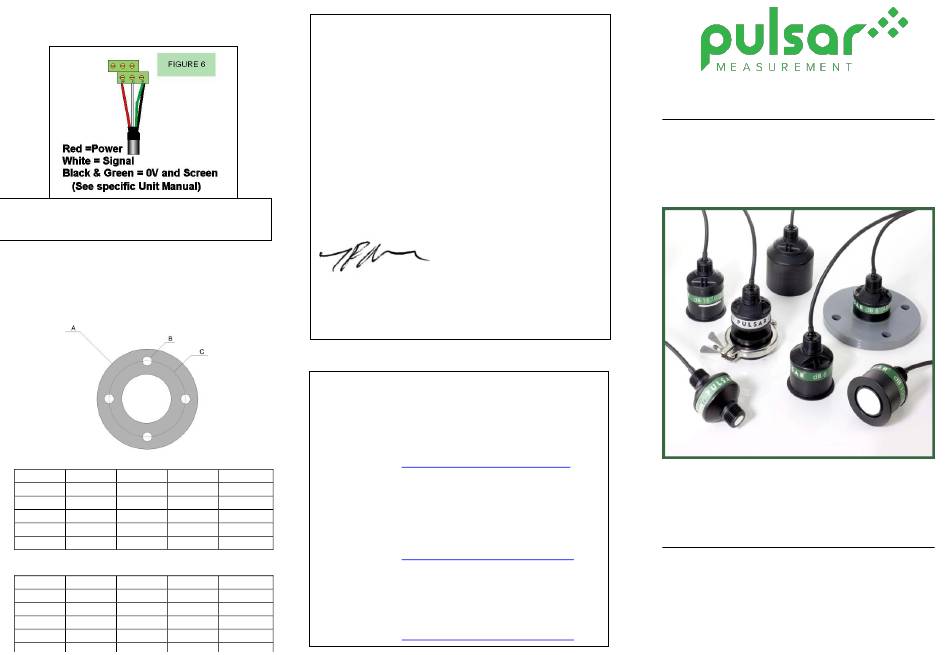

Wire the transducer into the relevant PULSAR ultra
instrument as shown in figure 6. Terminal numbers will
depend on the unit.
NOTE: All extension cables must use 2 or 3 core screened
cables not exceeding a total of 100nF between conductor
to screen and 40 ohms/conductor.
The installation is now complete; refer to the PULSAR ultra
user manual for instructions on how set up the PULSAR
ultra instrument.
dB FLANGE DIMENSIONS (mm)
EN1092 (BS 4504)
Size A B
50 165 19 125
80 200 19 160
100 220 19 180
150 286 19 240
200 337 19 295
ANSI Class 150
Size A B
2 165 19 121
3 200 19 152
4 220 19 190
6 286 19 241
8 343 19 298
EU DECLARATION OF CONFORMITY
Pulsar Measurement declares under our sole responsibility that the
products listed below conform with the relevant provisions of EU
directives 2014/34/EU (ATEX), 2014/30/EU (EMC) & 2011/65/EU
(RoHS). Product(s): dB3, dBmach3, dB6, dB10, dB15, dB25 & dB40.
Notified Body:
Conformity has been demonstrated with reference to the following
documentation: Quality Assurance Notification Sira 02ATEXM230.
EU type examination certificate Sira 02ATEX2103X (Exia),
02ATEX5104X (Exmb), and IECEx SIR 18.0037X (Exmb).
Compliance with the Essential Health & Safety Requirements has been
assessed by reference to the following relevant standards:
ATEX: EN 60079-0:2012+A11:2013. EN60079-11:2012.
EN60079-18:2015+A1:2017.
EMC: EN 61326-1:2013, class industrial.
Tim Brown – Electronics Engineer Date 14th September 2020
Dispose of Transducer and cable in accordance with regional
environment regulations for electronic equipment e.g. WEEE
regulations apply within the EU to Directive 2012/19/EU
PULSAR MEASUREMENT CONTACT DETAILS
UK Office
Cardinal Building
Enigma Commercial Centre
Sandy's Road
Malvern
WR14 1JJ
United Kingdom
C No. holes
Canada Office
4 -18mm
8 -18mm
16456 Sixsmith Drive
8 -18mm
Long Sault
8 -23mm
ON
12 -23mm
K0C 1PO
Canada
USA Office
C No. holes
4 -18mm
11451 Belcher Road South
4 -18mm
Largo
8 -18mm
FL 33773
8 -22mm
USA
8 -22mm
CSA Group NL B.V. Sira (2813)
Utrechseweg 310,
6812 AR,
Arnhem,
Netherlands
Tel: +44 (0)1684 891371
Fax: +44 (0)1684 575985
http://www.pulsameasurement.com
Tel: 613-938-8956
Toll Free: 855-300-9151
http://www.pulsarmeasurement.com
Tel: 315-788+9500
Toll Free: 888-473-9546
http://www.pulsarmeasurement.com

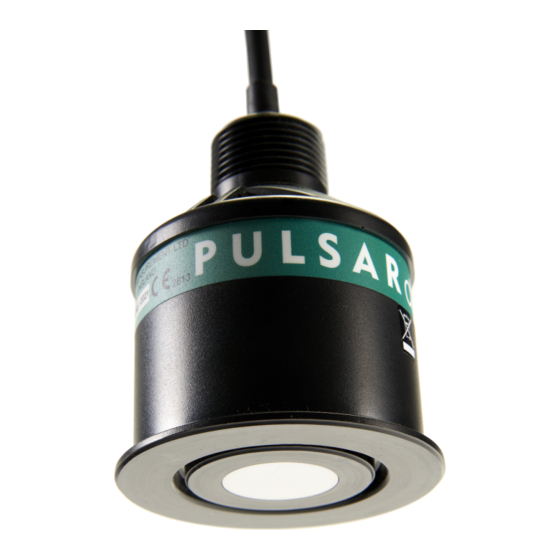

dB Series TRANSDUCERS
I M
NSTRUCTION ANUAL
M-DB-0-005-2P
