Dacor Modernist DHD Series Planning Manual

DHDxx

General Specifications

All Models: DHD30/36/48
Features Description
Blower Speeds Four (4)
Filters Baffle style, dishwasher safe
Exhaust(s) 8" duct diameter
30", 36": 120V, 60 Hz, 15 Amp (actual load 3.3 Amp, 6
Total
Amp initial surge)
Connected
48": 120V, 60 Hz, 15 Amp (actual load 6.1 Amp, 12 Amp
Load
initial surge)
Dimmable LED: PAR16 E26/27; 120V, 7.5W (75W Max.
Lights
other bulbs)
Individual Models: DHD30/36/48
Components 48"
Lights
Filters
Blowers
Exhaust Vents
Blower Rating 1200 CFM
Weight Specifications
Individual Models: DHD30/36/48
Model
30
36
48
Ventilation
Individual Models
Model Top Vent
30 X
36 X
48 X
All specifications subject to change without notice.
Modernist 30", 36", 48" Wide
36"
4 3
2 1
600 CFM 600 CFM
Weight
53 lbs (24 kg)
57 lbs (26 kg)
77 lbs (35 kg)
Rear Vent Rotatable Fan
X X
X X
X X
Wall Hood
• Observe all local ordinances during planning and installation.
Contact your local building department for details.
• This unit must be installed according to its installation instructions.
Dimensions
Single Blower DHD30/36
30"
2
1

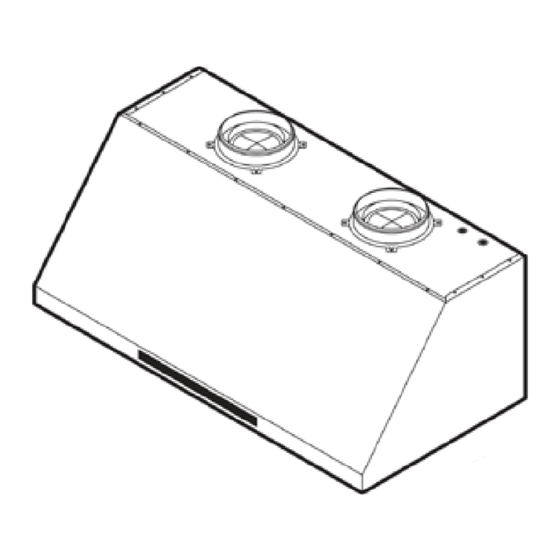

Dual Blower DHD48
Model
30 29 7/8" (75.9 cm)
36 35 7/8" (91.1 cm)
48 47 7/8" (121.6 cm)
www.dacor.com
Doc #: PGH-DHD.01 Revised 19 Sept 2018 Page 1 of 3
All tolerances: ±¹/₁₆" (±1.6 mm) unless otherwise stated.
PLANNING
WARNING
A B
24"
(61 cm)
GUIDE
C D
18" 11 7/8"
(45.7 cm) (30.2 cm)
Ph. 800.793.0093
