Johannus Ecclesia D-35 Quick Reference Manual

Ecclesia D-35
Switch on the organ with the on/off switch (J) on the right next to the manuals.
Wait for a few seconds. Starting the control functions and the settings will take some time.
The lamps of the SET and 0 buttons light up and the settings appear on the display.

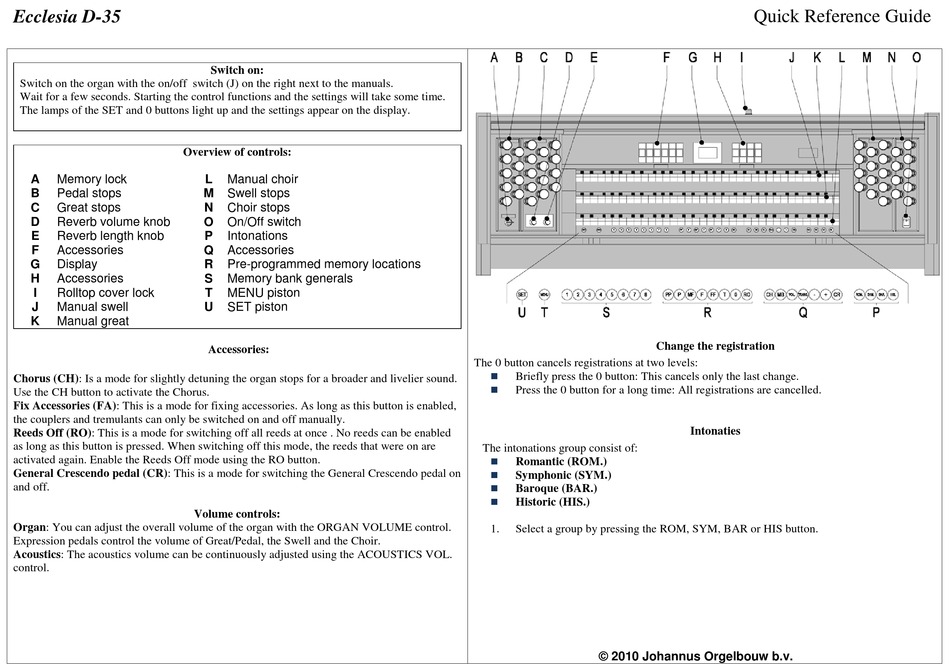

Overview of controls:

A Memory lock
B Pedal stops
C Great stops
D Reverb volume knob
E Reverb length knob
F

Accessories

G Display
H Accessories
I Rolltop cover lock
J Manual swell
K Manual great
Chorus (CH): Is a mode for slightly detuning the organ stops for a broader and livelier sound.
Use the CH button to activate the Chorus.
Fix Accessories (FA): This is a mode for fixing accessories. As long as this button is enabled,
the couplers and tremulants can only be switched on and off manually.
Reeds Off (RO): This is a mode for switching off all reeds at once . No reeds can be enabled
as long as this button is pressed. When switching off this mode, the reeds that were on are
activated again. Enable the Reeds Off mode using the RO button.
General Crescendo pedal (CR): This is a mode for switching the General Crescendo pedal on
and off.
Organ: You can adjust the overall volume of the organ with the ORGAN VOLUME control.
Expression pedals control the volume of Great/Pedal, the Swell and the Choir.
Acoustics: The acoustics volume can be continuously adjusted using the ACOUSTICS VOL.
control.

Switch on:

L Manual choir
M Swell stops
N Choir stops
O On/Off switch
P

Intonations

Q Accessories
R Pre-Programmed Memory Locations
S Memory bank generals
T MENU piston
U SET piston
Accessories:
Volume controls:
The 0 button cancels registrations at two levels:

Briefly press the 0 button: This cancels only the last change.

Press the 0 button for a long time: All registrations are cancelled.
The intonations group consist of:

Romantic (ROM.)

Symphonic (SYM.)

Baroque (BAR.)

Historic (HIS.)
1. Select a group by pressing the ROM, SYM, BAR or HIS button.
© 2010 Johannus Orgelbouw b.v.
Quick Reference Guide

Change the registration

Intonaties
