MULTI V
Indoor Unit

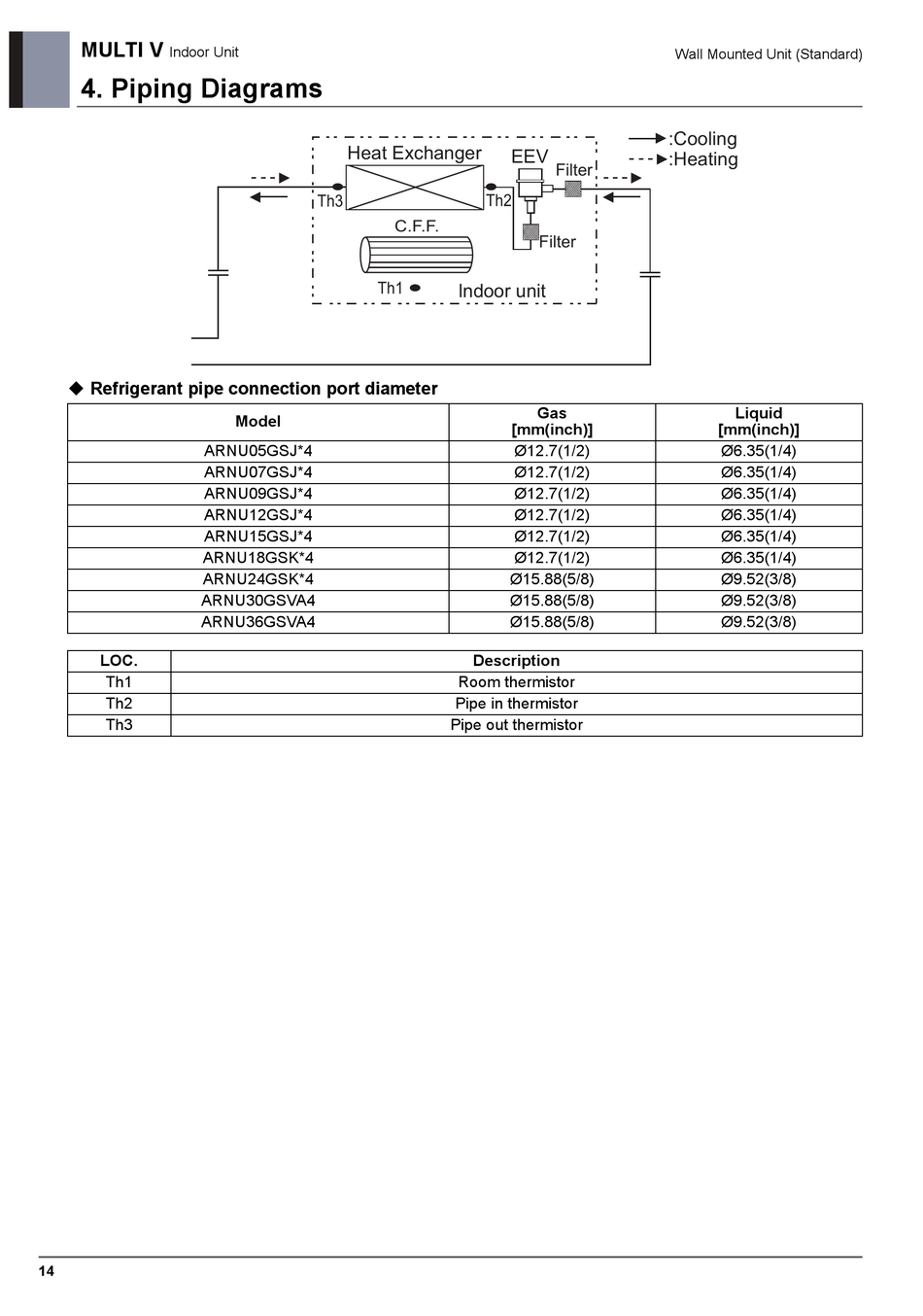

4. Piping Diagrams

 Refrigerant pipe connection port diameter
ARNU05GSJ*4
ARNU07GSJ*4
ARNU09GSJ*4
ARNU12GSJ*4
ARNU15GSJ*4
ARNU18GSK*4
ARNU24GSK*4
ARNU30GSVA4
ARNU36GSVA4
LOC.
Th1
Th2
Th3
14
Heat Exchanger
Th3
C.F.F.
Th1
Model
EEV
Filter
Th2
Filter
lndoor unit
Gas
[mm(inch)]
Ø12.7(1/2)
Ø12.7(1/2)
Ø12.7(1/2)
Ø12.7(1/2)
Ø12.7(1/2)
Ø12.7(1/2)
Ø15.88(5/8)
Ø15.88(5/8)
Ø15.88(5/8)
Description
Room thermistor
Pipe in thermistor
Pipe out thermistor
Wall Mounted Unit (Standard)
:Cooling
:Heating
Liquid
[mm(inch)]
Ø6.35(1/4)
Ø6.35(1/4)
Ø6.35(1/4)
Ø6.35(1/4)
Ø6.35(1/4)
Ø6.35(1/4)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
