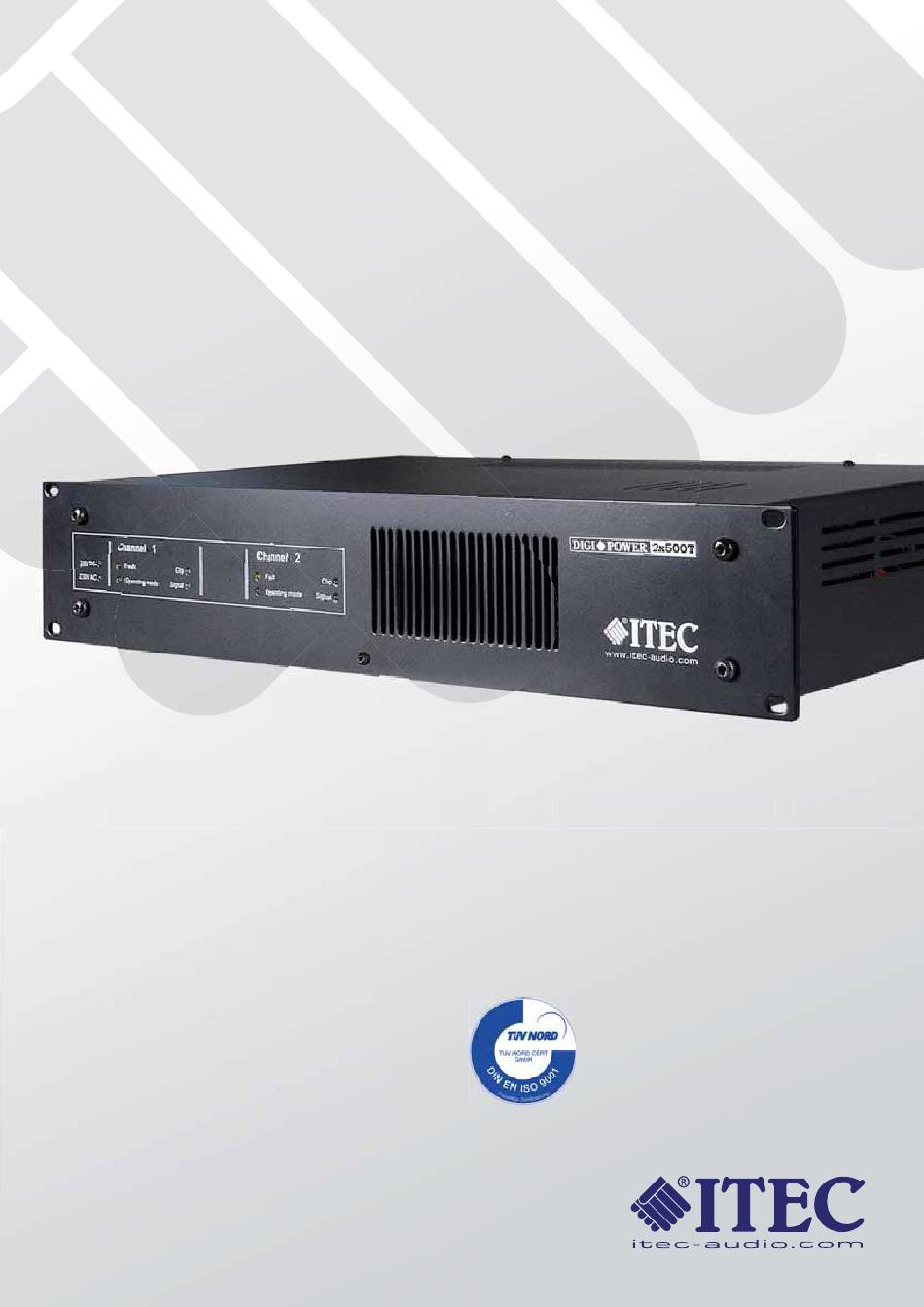

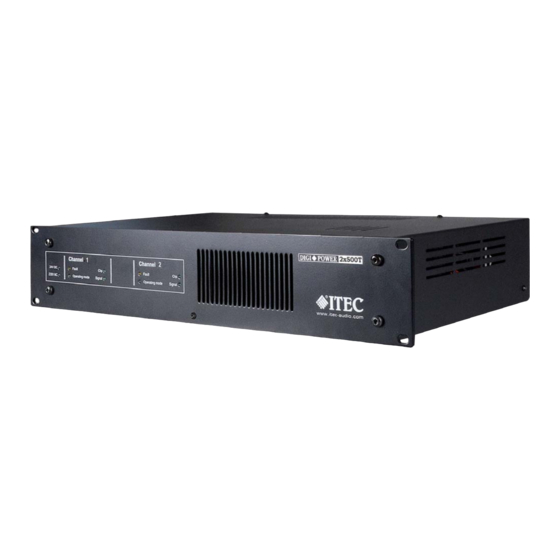

  • Page 1 DIGIPOWER 2x500T 2x500T POWER AMPLIFIER MANUAL VERSION 1.0, MARCH 2019 Designed and Manufactured by ITEC Tontechnik und Industrieelektronik GesmbH 8200 Laßnitzthal 300 Austria / Europe...

  • Page 2: Dear Customer

    ITEC DIGIPOWER 2x500T - INTRODUCTION Dear Customer, The power amplifi ers of the series “ITEC DigiPower” offer due to the latest digital technology in place an extremely high effi ciency. Another feature is the very low power consumption in the automatic standby mode.

  • Page 3: Safety Instructions

    ITEC DIGIPOWER 2x500T Safety instructions Please read this instruction manual carefully before installation and putting the “ITEC DigiPower” amplifi er into operation. Keep this document easy to fi nd on a safe place to have it available as a later reference.
  • Page 4 ITEC DIGIPOWER 2x500T - FRONT VIEW 1. 24V DC: indicates that 24V DC power is applied 2. Channel 1 Fault: indicates a fault, e.g.: thermal overload at channel 1 During normal operation this LED fl ashes shortly after powering up until the protection mode is terminated and the speaker output is enabled.
  • Page 5 ITEC DIGIPOWER 2x500T - BLOCK DIAGRAM ITEC DigiPower 2x500T Block diagram 230 V AC 230 V OK 24 V DC – + 24 V 24 V OK + 24 V Volume 1 100 V 50 V IN 1 1.4/1.5/1.6 Protect...
  • Page 6 ITEC DIGIPOWER 2x500T - BACK VIEW 2 3 0 V ~ / 8 A / M USE ONLY FOR A 250V FUSE 50-60 Hz, 800VA RISK OF ELECTRIC SHOCK DO NOT OPEN BEFORE DISCONNECT MAINS PLUG DC IN 24V OUT 2...
  • Page 7 ITEC DIGIPOWER 2x500T CH 1 CH 2 20. CH 2 Volume: like item 13, but for channel 2 21. 2 IN1: like item 14, but for channel 2 22. 2 IN2: like item 15, but for channel 2 23. SWITCH IN2: like item 16, but for channel 2 24.
  • Page 8 Weight 16,5 kg No responsibility is taken for the correctness of this information - Specifi cations subject to change ITEC-Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133 / 3780-0, offi ce@itec-audio.com, www.itec-audio.com www.itec-audio.com www.itec-audio.com...
