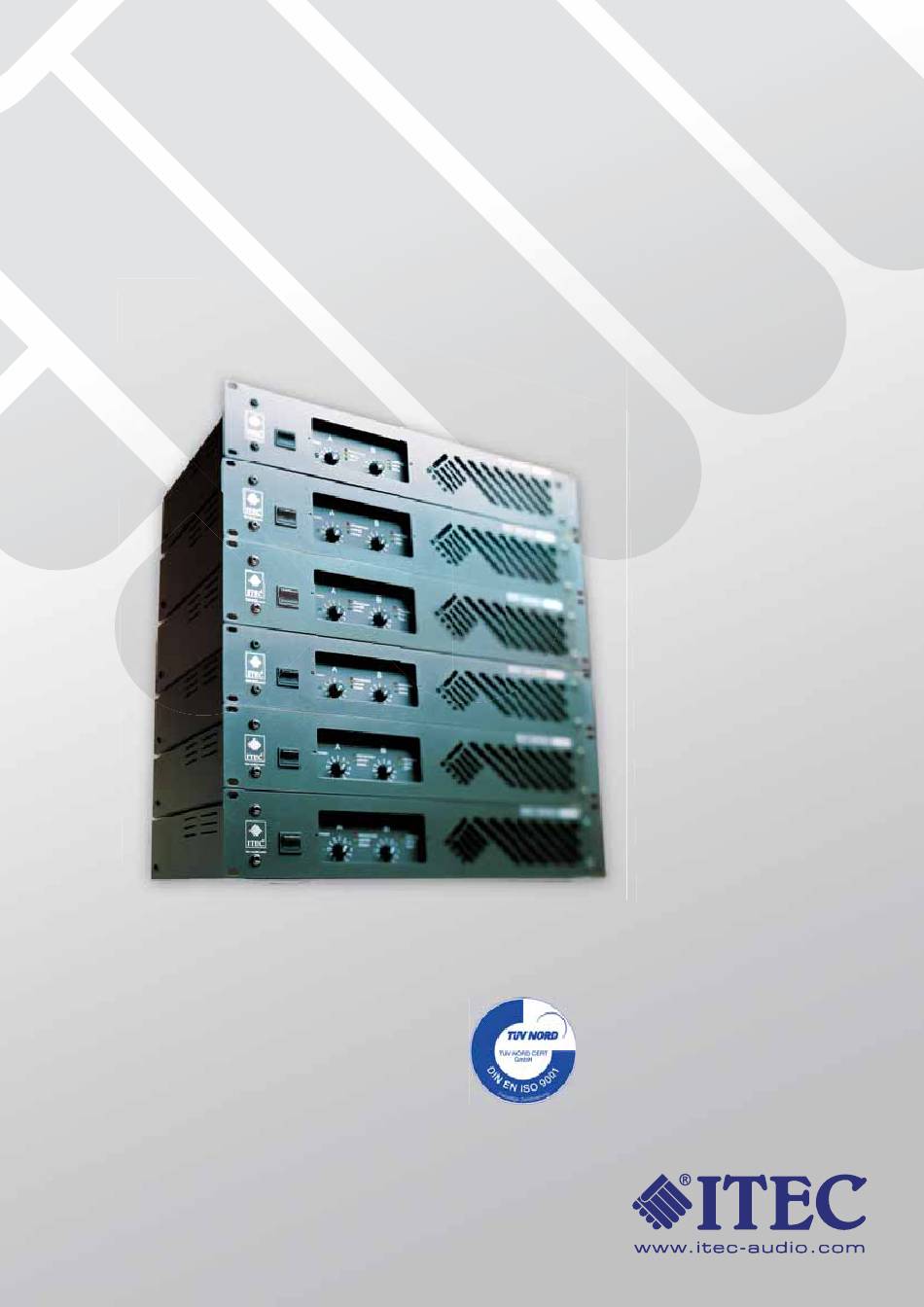

- Page 1 MULTIPOWER MANUAL Designed and Manufactured by ITEC Tontechnik und Industrieelektronik GesmbH 8200 Laßnitzthal 300 Austria / Europe...
- Page 2 A series of protective features provides operation at highest-possible security levels. We assure you to have taken the right decision in purchasing an ITEC MULTIPOWER power out- put stage. State-of-the-art technology is paired with best usability, functionality-focussed design, small form factor and various valuable details.
-
Page 3: Safety Instructions
MULTIPOWER SAFETY INSTRUCTIONS Please read this manual carefully before turning on the ITEC MULTIPOWER. Keep it in a safe place where you can fi nd it easily for future reference. Train all personnel who will use the device regarding use and safety instructions especially. - Page 4 MULTIPOWER ITEC Multipower 2x200 ITEC Multipower 2x350 ITEC Multipower 2x750 ITEC Multipower 2x1000 ITEC Multipower 2x200T ITEC Multipower 2x300T FEATURES Power switch on the front panel Switch-able 230 V socket for add-on devices Temperature-controlled axial fan One volume control per channel...
- Page 5 - RED: Protective switch activated (short circuit, overheated, etc.) REMARK: Every ITEC MULTIPOWER power output stage ships with a transparent shield made from plexiglas and two screws. This shield can be used to prevent unauthorized access to the level controls.
-
Page 6: Rear Panel
You can supply power to auxiliary devices like pre-amplifi ers, wireless transmitters and playback devices via this socket. These devices will also be powered on/off together with the MULTIPOWER power output stage. CAUTION: Do not connect other power output stages via this socket. The fuse is not designed for this load. www.itec-audio.com MULTIPOWER... - Page 7 12. REMOTE POWER-ON (optional) If your MULTIPOWER is equipped with this option, you can remote control it using a 12V line (see connectivity layout). The power switch on the front panel has to be turned on to enable remote con- trol. MULTIPOWER www.itec-audio.com...
- Page 8 MULTIPOWER CONNECTING LOW-RESISTANCE SPEAKERS 2-channel Mode Bridge Mode www.itec-audio.com MULTIPOWER...
- Page 9 MULTIPOWER CONNECTING 100V SPEAKERS (MULTIPOWER 2X200T / 2X300T) 2-channel Mode Alternatively 50 or 70 Bridge Mode Short circuit has to be wired MULTIPOWER www.itec-audio.com...
- Page 10 MULTIPOWER CONNECTING MONITORING SYSTEMS Individual Monitoring Monitoring System Circuit closed = OK Bulk Monitoring Monitoring System Circuit closed = OK www.itec-audio.com MULTIPOWER...
-
Page 11: Input Muting
MULTIPOWER INPUT MUTING External Power 12V DC Input muted if power applied Input circuit electrically isolated using Opto-cou- pling REMOTE POWER ON (OPTIONAL) External Power 12V DC Device ON if power applied Input circuit electrically isolated using relay. MULTIPOWER www.itec-audio.com... - Page 12 Protective Switches DC, Short Circuit, Oscillating, Temperature Cooling Temperature-controlled fans All information without guarantee. Subject to technical changes. ITEC- Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133 / 3780-0, offi ce@itec-audio.com, www.itec-audio.com www.itec-audio.com MULTIPOWER...
