TFP662
Page 2 of 4
Components:
1 -
-
2
3 -
4 -
5 -
6 - De ector
**
Installation
The TYCO Series TY-B, 5.6 K-factor,
Conventional Sprinklers (TY365) must
be installed in accordance with this
section:
General Instructions
Do not install any bulb type sprinkler
if the bulb is cracked or there is a loss
of liquid from the bulb. With the sprin-
kler held horizontally, a small air bubble
should be present. The diameter of the
air bubble is approximately 1/16 in.
(1,6 mm) for the 135°F (57°C) to 3/32 in.
(2,4 mm) for the 360°F (182°C) tempera-
ture ratings.
A leak tight 1/2 in. NPT sprinkler joint
should be obtained with a torque of 7 to
14 lb-ft (9,5 to 19,0 N∙m). Higher levels
of torque may distort the sprinkler inlet
and cause leakage or impairment of the
sprinkler.
Step 1. With pipe thread sealant
applied to the pipe threads, hand
tighten the sprinkler into the sprinkler
fitting.
Step 2. Tighten the sprinkler into the
sprinkler fitting using only the W-Type 6
Sprinkler Wrench (Figure 2), except that
an 8 in. or 10 in. adjustable Crescent
wrench is to be used for wax coated
sprinklers. With reference to Figure 1,
the W-Type 6 Sprinkler Wrench or the
Crescent wrench, as applicable, is to
be applied to the wrench flats.
*
Temperature
Frame rating is indicated
on De ector.
Button
Sealing
*
6
Assembly
Bulb
5
Compression
Screw
* 4
2
Pipe thread
3
connections per
ISO 7-1 can be
1
provided on
special request.

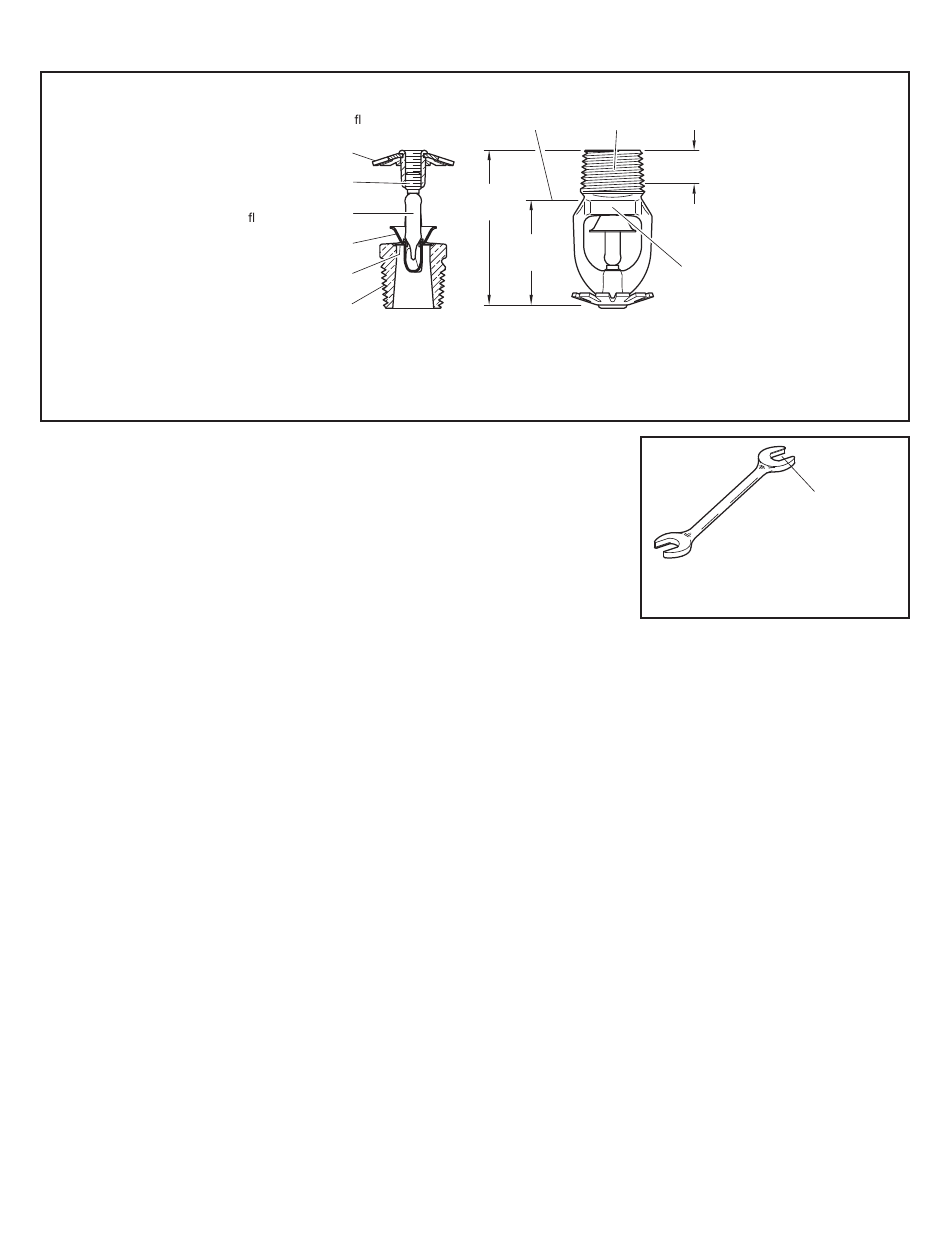

CROSS SECTION
SHOWN UPRIGHT
SERIES TY-B CONVENTIONAL SPRINKLERS (TY365 AND TY3650)
5.6 K-FACTOR, 1/2 INCH NPT, STANDARD RESPONSE
Care and
Maintenance
The TYCO Series TY-B, 5.6 K-fac-
tor, Conventional Sprinklers (TY365)
must be maintained and serviced in
accordance with this section.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system
that it controls, obtain permission to
shut down the affected fire protection
systems from the proper authorities
and notify all personnel who may be
affected by this action.
Sprinklers which are found to be
leaking or exhibiting visible signs of
corrosion must be replaced.
Automatic sprinklers must never be
painted, plated, coated, or other-
wise altered after leaving the factory.
Modified sprinklers must be replaced.
Sprinklers that have been exposed to
corrosive products of combustion, but
have not operated, should be replaced
if they cannot be completely cleaned
by wiping the sprinkler with a cloth or
by brushing it with a soft bristle brush.
Care must be exercised to avoid
damage to the sprinklers before,
during, and after installation. Sprin-
klers damaged by dropping, striking,
wrench twist/slippage, or the like, must
be replaced. Also, replace any sprinkler
that has a cracked bulb or that has lost
liquid from its bulb. Refer to the Instal-
lation section for additional information.
ESCUTCHEON PLATE 1/2"
SEATING SURFACE NPT
2"
(50,8 mm)
1-3/8"
(34,9 mm)
SHOWN
PENDENT
FIGURE 1
7/16" (11,1 mm)
NOMINAL
**
MAKE-IN
WRENCH
FLATS
WRENCH RECESS
(USE ONLY
END "A")
FIGURE 2
W-TYPE 6
SPRINKLER WRENCH
The owner is responsible for the inspec-
tion, testing, and maintenance of their
fire protection system and devices in
compliance with this document, as well
as with the applicable standards of the
NATIONAL FIRE PROTECTION ASSO-
CIATION (e.g., NFPA 25), in addition to
the standards of any other authorities
having jurisdiction. Contact the install-
ing contractor or sprinkler manufac-
turer regarding any questions.
It is recommended that automatic
sprinkler systems be inspected, tested,
and maintained by a qualified Inspec-
tion Service in accordance with local
requirements and/or national codes.
