Digi Connectware PortServer TS 1 + Modem Quick Start Manual

Quick Start Guide
PortServer TS 1/3 + Modem
SET DIP
SWITCH
Connect
modem to
phone line
INSTALL
RUN
Software &
Documentation
WIZARD
Insert CD
© Digi International Inc., 2004.
Digi, Digi International, the Digi logo, the Digi Connectware logo, the Making Device Networking Easy logo, Digi One TS, PortServer TS,
and RealPort are trademarks or registered trademarkds of Digi International, Inc. in the United States and other countries worldwide.
All other trademarks are the property of their respective owners.
Pin outs
RI TXD- TXD-
DSR RxD- RxD-
RTS RTS+ n/a
GND GND
GND
TxD TxD+ TxD+
RxD RxD+ RxD+
SG SG SG
CTS CTS+ n/a
DTR RTS-
n/a
DCD CTS- n/a
Connect
serial device

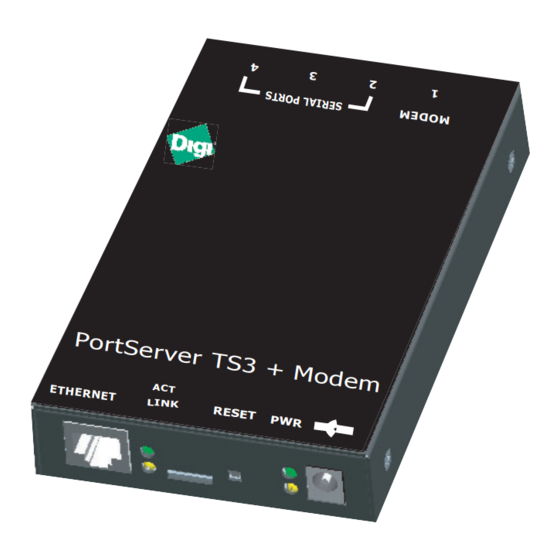

PortServer TS3+Modem
shown
Ethernet cable not included
Set serial DIP switch according to your serial device
requirements (EIA-232/422/485).
*If switch 4 is up, termination resistor connected
If down, termination resistor unconnected.
Connect
Ethernet cable
Follow wizard
visit us at www.digi.com
What you will need
power supply
may be either
supply shown here
modem cable may
vary from illustration
Software &
Documentation
PN:(1P) 90000597
* *
Connect
power supply
Congratulations!
Configuration is complete.
Go to the User Guide
on the CD for more
information.
A
