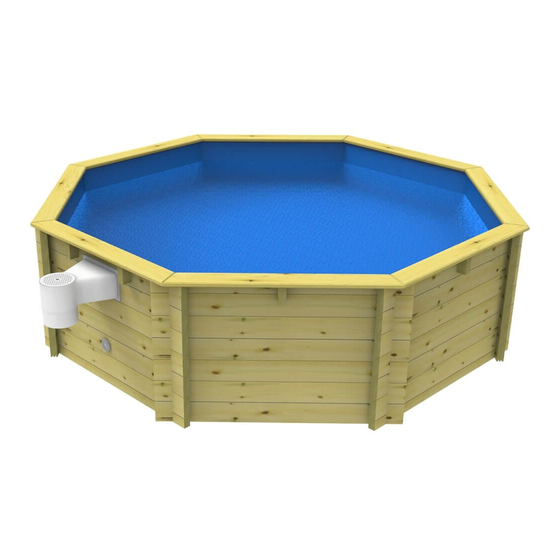

- Page 1 WOODEN FUN POOL Self Build Install Instructions 8ft & 10ft Octagonals www.plasticapools.com WP 010 May 2015 Edition...
-
Page 2: Table Of Contents
Contents Introduction Recommendations for Storage after Delivery General Safety Precautions Required Tools Kit Contents Safety Precautions Natural Timber Defects Preparation of the Base Option 1: Subsoil Base Option 2: Concrete Base Assembly of the Shell Decide on the Layout of your P ool Assembling the Pool Walls Installing the Top Shelving Fixing the Skimmer to the Wall... -
Page 3: Introduction
Introduction You are advised to read this entire manual before In the event of any problems please contact your starting your project. dealer immediately. Warranty claims will not be entertained if there is delay in reporting a problem or these instructions have not been followed correctly. Recommendations for Storage after Delivery •... -
Page 4: Natural Timber Defects
Natural Timber Defects Whilst we try to ensure that our timber products reach you in perfect condition, we have to remember we are dealing with a natural material and there are many defects which can arise. These are completely normal and have no detrimental effect on the product. -
Page 5: Preparation Of The Base
Preparation of the Base OPTION 1: Subsoil Base • Although the recommended base is concrete (see • Ensure that the cleared area is flat, level and Option 2 below) you may choose to construct your smooth and that all vegetation has been removed. pool on undisturbed subsoil. -
Page 6: Assembly Of The Shell
Assembly of the Shell Decide on the Layout of your Pool • Decide which end of the pool you would like the • If you are planning to use an underwater light skimmer and return or low level suction (depending decide which side to install it on. - Page 7 • Find the 4 bottom half planks that have a flat under • Choose the position for your filtration wall carefully. • 8ft Models Only: There is no skimmer plank. You side and two tongues facing upwards. Place these flat side down as shown below. will be provided with an inlet and low level suction plank which has two holes.
- Page 8 • At this point hang the skimmer as shown before you • Finish off the wall structure using the top half planks continue installing planks. as shown on page 6. • The next stage is to insert your top full planks and •...
-
Page 9: Installing The Top Shelving
Installing the Top Shelving (10ft models) • The pool is supplied with nine shelving brackets. Carefully mark the centre of each wall and either side of the skimmer on the top of the pool wall. Using the 5mm x 70mm screws provided fix the top shelving brackets to the outside of the pool wall. -
Page 10: Fixing The Skimmer To The Wall
Installing the Top Shelving (all models) • Carefully work your way around the perimeter of the pool, positioning your top shelving. Take your time to get the overhang even on all sides. Please note that the bevelled mitres indicate the top side of the shelving. -
Page 11: Fixing The Return
Fixing the Return (10ft models) • Use the two 3.5mm x 20mm countersunk screws provided in the fixing kit to secure the return fitting on the inside of the pool as shown. Fixing the Return Low Level Suction (8ft models) •... -
Page 12: Fitting The Linerlock
Fitting the Linerlock • You will be supplied with a white plastic profile called Linerlock. This is fitted at the top of the wall under the top shelving as shown. You can mitre the Linerlock at each corner of the pool, but this is not essential as you can cut a straight edge and butt the two pieces of Linerlock together. -
Page 13: Installing The Liner
Installing the Liner • Prior to fitting your liner, ensure the following: The • Once you have approximately three inches of water liner has been stored in a warm environment and in the pool, get into the pool bare foot and work out that you have carefully examined and removed any any remaining creases in the pool floor by pushing sharp objects from inside the pool area. - Page 14 • IMPORTANT: Proceed with extreme caution when • Using the two screw positions already exposed, cutting the liner. undo the top screw and attach the faceplate at the top. The faceplate will swing down into the correct • The two screws which you left in the top and bottom position to line up with the bottom screw.
- Page 15 • Screw on the relevant fixed grill for a low level • You can now connect the standard cartridge filter suction or directional eyeball for a return inlet. supplied with your pool. • If you have upgraded to a sand filter, please refer to the upgrade instructions at the back of this manual (page 17).
- Page 16 • Carefully cut out the excess liner material from inside the skimmer faceplate to reveal the skimmer. • When this has been done you can clip the cover plate on, as shown below. – 16 –...
-
Page 17: Krystal Klear Filter
Krystal Klear Filter Upgrade • You will be provided with a pack of fittings labelled IPK100. These are connected to the white fittings (ie. skimmer, low level suction) supplied with your pool. • Using PTFE tape insert the 1.5’’ thread into the pool fittings. - Page 18 8’ Funpool Structure – 5 boards high (0.668m deep) Filtration Wall – 18 –...
- Page 19 10’ Funpool Structure – 6.5 boards high (0.877m deep) Filtration Wall – 19 –...
- Page 20 10’ Funpool Structure – 9 boards high (1.204m deep) Filtration Wall – 20 –...
