Krystal Klear Filter; Nano Plug & Play Heater - Plastica WOODEN FUN POOL Self Build Install Instructions

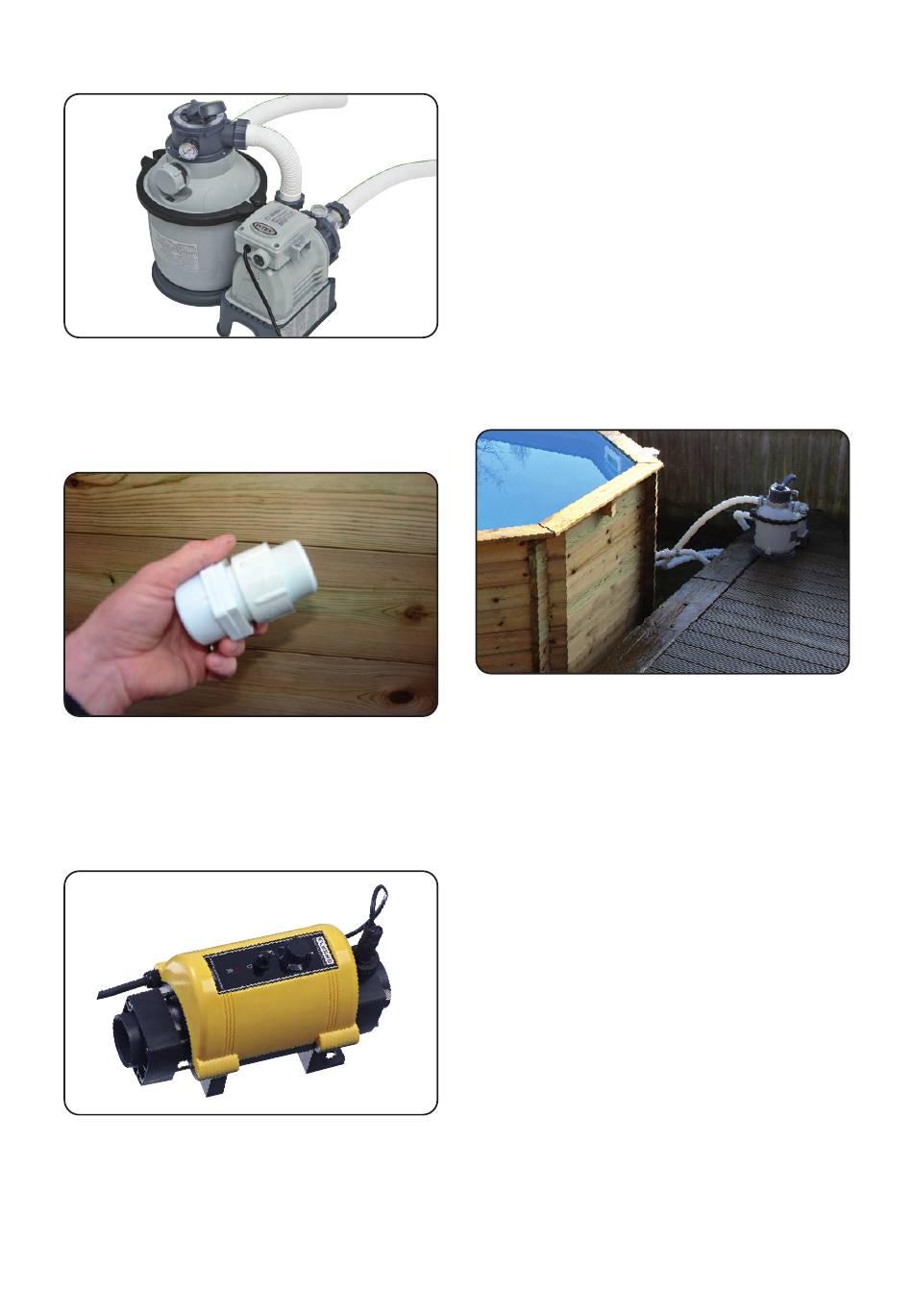

• If you have purchased a sand filter, you will need
to install it at the point where the water level is just
below the low level suction/return.
• Assemble the sand filter as per the manufacturers
instructions.
Nano Plug & Play Heater Upgrade
Krystal Klear Filter Upgrade
– 17 –
• You will be provided with a pack of fittings labelled
IPK100. These are connected to the white fittings
(ie. skimmer, low level suction) supplied with your
pool.
• Using PTFE tape insert the 1.5'' thread into the
pool fittings.
• Then connect the hose from the sand filter (pump
end) to the skimmer/low level suction and the filter
end to the return inlet.
• It may be necessary to put a bead of silicone on the
back edge of the two inch thread on the IPK100
fitting.
• You can now continue to fill your pool.
• Read the manual supplied with the sand filter for
safe installation and operation of the product.
• If you have purchased a Nano Plug & Play Heater,
consult your dealer for advice on rigid pipework and
fittings. Many heaters are used in conjunction with
ball valves etc for easy maintenance.
• Your dealer should be able to advise you on
additional pool fittings needed.
• IMPORTANT: Please ensure you read the manual
supplied with the heater for safe installation and
operation of the product.
