A. CONTENTS

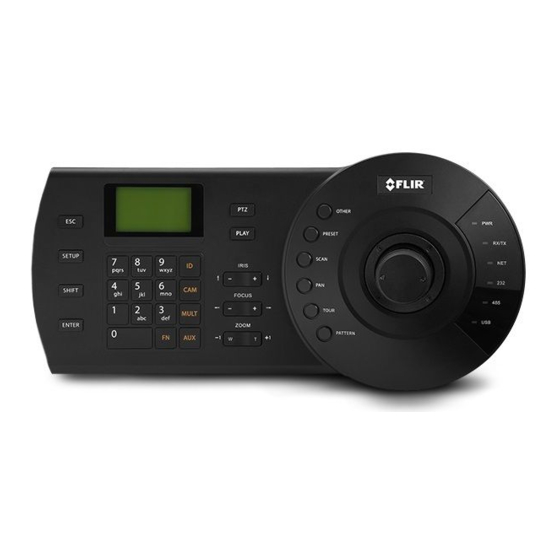

FLIR UVMS Keyboard
12V Power Adapter
B. KEYBOARD PORTS
1. USB: Not supported.
2. RS422: Not supported.
3. RS485: Not supported.
4. Ethernet: Not supported.
5. RS232: Used for RS232 connections
6. DC12V: Connect the power adapter to power the keyboard.
C. PHYSICAL INSTALLATION
D. CONTROL CENTER
1.5 meter RS-232 cable
E. KEYBOARD SETTINGS
Version 1.0
Quick Installation Guide
1. Launch ControlCenter and log in.
2. Go to the Tools menu and click Options...
3. Navigate to the Keyboard section on the left.
4. In Keyboard Selection, drop-down and select: DVTel Keyboard v0.1
5. In the RS232 Port Selection section, open the drop-down and select the appropriate
computer port associated with the RS232 port of the local client machine.
6. Click OK.
1. Connect the RS232 cable from the keyboard to the back of the client PC.
2. Plug in the keyboard to power it on.
3. Press ID to open the menu.
4. Select admin user and enter password (default: 000000) under PW.
5. Request to enter ID will be shown. Default ID '0' will be shows.
6. Press ENTER to complete login.
7. The keyboard will connect to the client machine.
DVT-KBD-G2
