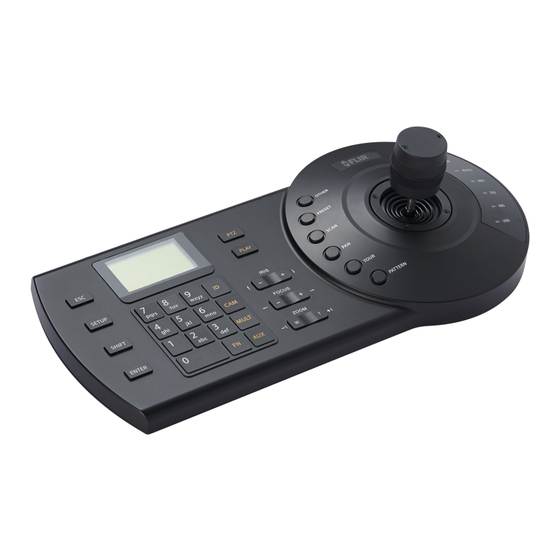

- Page 1 User guide FLIR UVMS CCTV Keyboard DVT-KBD-G2 May 9, 2018...
- Page 2 © 2018 FLIR Systems, Inc. All rights reserved worldwide. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted to any electronic medium or machine readable form without the prior written permission of FLIR Systems, Inc.
-
Page 3: Table Of Contents
General Precautions ....................1 Installation ......................1 Service ........................3 Use ........................3 2. FLIR UVMS Keyboard Features ..................5 3. Getting Started ......................6 4. FLIR UVMS Keyboard Overview ................... 7 Default Username and Password ................7 Keyboard Ports ...................... 7 Front Panel &... - Page 4 Table of Contents Table of Contents FCC Class A Notice ..................... 20 DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018...
-
Page 5: Important Safeguards
3. Heed Warnings - Comply with all warnings on the product and in the operating instructions. 4. Polarization - Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... - Page 6 13. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018...
-
Page 7: Service
2. Product and Cart Combination - When product is installed on a cart, product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... - Page 8 This will prevent damage to the product due to lightning and power line surges. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018...
-
Page 9: Flir Uvms Keyboard Features
FLIR UVMS Keyboard Features 2 FLIR UVMS Keyboard Features · Manage FLIR UVMS (Latitude, Horizon and Meridian). · Access multiple devices using the same keyboard. · RS232 supported. Note Please visit http://www.flir.com/security/ for information, firmware, and compatibility updates DVT-KBD-G2 FLIR UVMS CCTV Keyboard... -
Page 10: Getting Started
Getting Started 3 Getting Started The System comes with the following components: FLIR UVMS Keyboard 12V Power Adapter 1.5 meter RS-232 cable DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 11: Flir Uvms Keyboard Overview
Note: The SHIFT button works as a toggle button for other buttons on the keyboard. When SHIFT is used to trigger a function, it remains in the SHIFT state until the button is used again to toggle back to the previous mode. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 12: Keyboard Commands
Turn recording of the selected camera's video SCAN stream on/off Audio PTT OTHER Audio Listen 3+15 Trigger an alarm Acknowledge alarm in its active tile SHIFT 3+18 Full Screen 11+5 Display CC Help File DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 13: Ptz Controls
Display Instant replay on next PLAY available tile Play IRIS + Pause IRIS - Rewind FOCUS - or joystick left 13/21 Fast Forward FOCUS + or joystick right 13/21 Bookmark the selected tile SHIFT+SCAN 2+17 DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 14: Basic Setup
When connecting to the UVMS United Control Center, the address settings are pre-defined in the keyboard and does not require such configuration in the Control Center setting. The following steps are required to allow the Control Center to recognize the keyboard: DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... - Page 15 Basic Setup Open Control Center on the client machine of which you plan to connect the FLIR Keyboard via RS232 1. At the top of the screen, on the application Menu, click Tools > Options 2. On the left hand side, navigate to Keyboard 3.
- Page 16 Basic Setup 5. Click OK DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018...
-
Page 17: Keyboard Menu
Backlight: Select ON to enable screen backlight or OFF to disable. Press ENTER to save changes. · AutoLogout: Select OFF to disable auto-logout, or select auto-logout in 10 minutes (10M), 30 minutes (30M), or 60 minutes (60M). Press ENTERto save changes. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 18: Account
LEFT/RIGHT to enable/disable rights. Rights are enabled when the icon is filled (•) and disabled when the icon is empty (? ). Press ENTER to confirm the rights and save the user account. 5. Press ENTER to save the user account. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 19: Delete User
2. Press ENTER again to confirm or ESC to cancel To reset the keyboard to factory defaults: 1. Select Default and press ENTER. 2. Press ENTER again to confirm or ESC to cancel. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 20: Info
Keyboard Menu Info The Version menu shows the current version of the keyboard firmware. Model The Model menu shows the model number of the keyboard. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 21: Menu Tree Overview
Keyboard Menu Menu Tree Overview DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 22: System Specifications
Input 100V ~240V 50Hz / 60Hz, Output 12V DC 1000mA Power Max 5W Consumption Operating –14~131°F / –10~55°C Temperature Operating <90%RH Humidity Dimension 13.0” x 5.1” x 4.0” / 330mm x 139mm x 103mm Weight 5.5lbs / 2.5Kg DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... -
Page 23: Dimensions
System Specifications Dimensions As our products are subject to continuous improvement, FLIR Systems, Inc. and its subsidiaries reserve the right to modify product design, specifications, and prices without notice and without incurring any obligation. E&OE DVT-KBD-G2 FLIR UVMS CCTV Keyboard... -
Page 24: Notices
Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense. DVT-KBD-G2 FLIR UVMS CCTV Keyboard May 9, 2018... - Page 25 FX: +1 805.685.2711 w w w .flir.com/security Corporate Headquarters FLIR Systems, Inc. 27700 SW Parkw ay Ave. Wilsonville, OR 97070 PH: +1 503.498.3547 FX: +1 503.498.3153 Document: DVT-KBD-G2 FLIR UVMS CCTV Keyboard Version: 1.0 Date: May 9, 2018 Language: en-US...
